Запчасти Case IH 1682 (9-056) - FEEDER DRIVE (09) - CHASSIS ATTACHMENTS

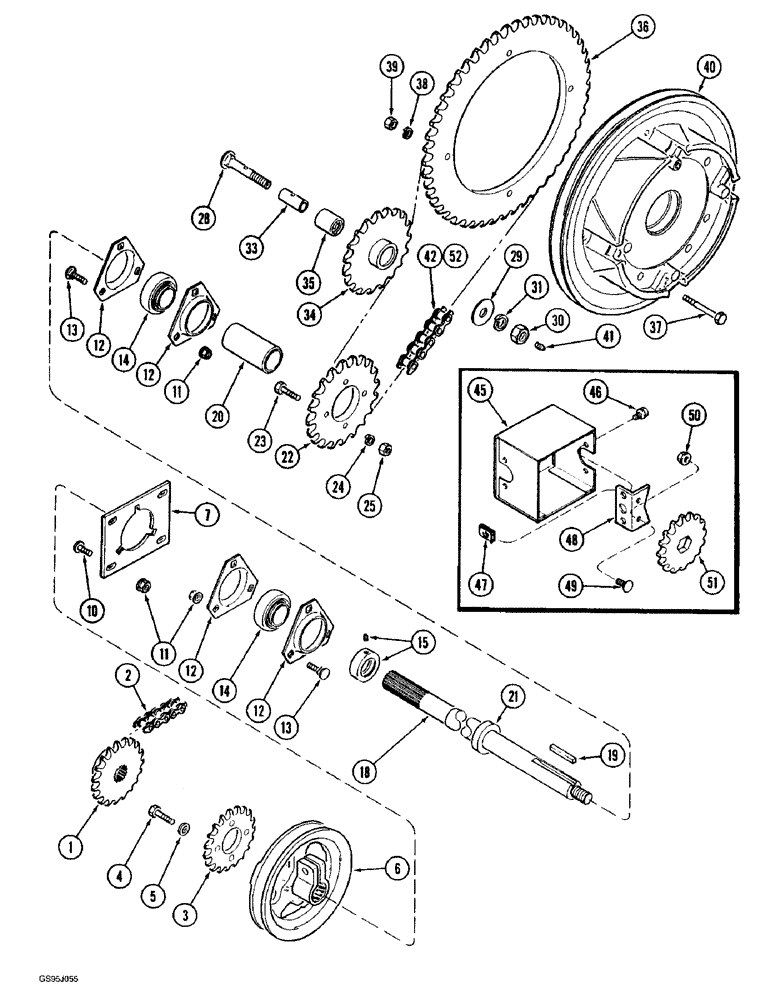

Схема запчастей Case IH 1682 - (9-056) - FEEDER DRIVE (09) - CHASSIS ATTACHMENTS
20
50
14
42
24
2
40
47
5
12
11
34
18
14
7
3
28
41
12
46
22
6
31
51
33
4
12
39
23
13
13
11
12
35
19
38
15
36
49
25
48
52
29
21
10
37
1
45
30

Артикул

Название

Примечание

Количество

1

189643C3

SPROCKET ASSY.

SPROCKET - chain, coupling (Replaces sprocket 189643C2)

1шт.

2

REF

INSTRUCTION

CHAIN ASSEMBLY - coupling, use 17 links from 10 foot roll marked 1355D, 1 offset link 197887C91 and 1 connecting link 1312D

1шт.

3

181656C1

SPROCKET ASSY.

SPROCKET - coupler

1шт.

4

26312R1

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 8

- hex, 3/8 NC x 1-1/2 inch

4шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

6

1305976C1

PULLEY

- drive, unloader

1шт.

7

187398C1

BAR

SUPPORT - bearing, left-hand

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

11

482256C2

CABLE ASSY.

NUT - hex flange lock, 3/8 inch NC

1шт.

12

180955C1

FLANGED BEARING,0.375"

FLANGE - bearing

4шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 inch - 16 NC x 1 inch (Replaces bolt 495967R1)

6шт.

14

611583R91

BALL BEARING

BEARING - ball, cross shaft

2шт.

15

517645R11

COLLAR

- locking with set screw, bearing, left-hand

1шт.

18

1308086C91

SHAFT

- drive, feeder cross

1шт.

19

581307R1

KEY,5/16" Sq x 2 3/4", Par

- square parallel, 5/16 x 2-3/4 inch

1шт.

20

189387C1

BUSHING

SLEEVE - clutch hub

1шт.

21

1307984C1

SPACER

BUSHING - bearing, right

1шт.

22

189642C1

SPROCKET ASSY.

SPROCKET - drive, feeder

1шт.

23

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

4шт.

24

492-11038

LOCK WASHER,3/8"

4шт.

25

425-106

NUT,3/8"-16, Cl 5

4шт.

28

23601K

BOLT,5/8" - 11 x 4"

STUD - idler

1шт.

29

495-81029

WASHER,0.66" ID x 2" OD x 0.12" Thk

- flat, 21/32 x 2 x 7/64 inch (17 x 51 x 3 mm) (Replaces washer 21759R1)

2шт.

30

425-1010

NUT,5/8"-11, G5

1шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

33

578607R1

SLEEVE CYLINDER

SLEEVE - bearing

1шт.

34

172079C91

SPROCKET ASSY.

SPROCKET ASSEMBLEY - idler, feeder, Includes: Ref. 35

1шт.

35

577006R91

NEEDLE BEARING,Needle, 22.2mm ID x 33.36mm OD x 38.1mm W

- sprocket

1шт.

36

185912C1

SPROCKET ASSY.

SPROCKET - driver, feeder

1шт.

37

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

- hex, 3/8 NC x 3-1/4 inch

4шт.

38

492-11038

LOCK WASHER,3/8"

4шт.

39

425-106

NUT,3/8"-16, Cl 5

4шт.

40

185958C92

PULLEY ASSY.

PULLEY - clutch

1шт.

41

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

42

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive, feeder, without rock trap, use 69 links from 10 foot roll marked 654437R91 and 1 connecting link 654438R91

1шт.

42

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive feeder, with rock trap, use 79 links from 10 foot roll marked 654437R91 and 1 connecting link 654438R91

1шт.

45

1327992C2

GUARD

SHIELD - sensor, feeder

1шт.

46

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

2шт.

47

131-97

SPRING NUT,Tinn, U, 5/16"-18

- U-type, 5/16 inch NC (Replaces nut 403276R1)

2шт.

48

1321392C2

SUPPORT

- sensor

1шт.

49

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 inch - 18 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

50

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

51

1317973C2

SPROCKET ASSY.

SPROCKET - sensor, feeder

1шт.

52

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY - drive, use 85 links from 10 foot roll marked 654437R91 and 1 connecting link 654438R91

1шт.

Выбрано товаров: 44
