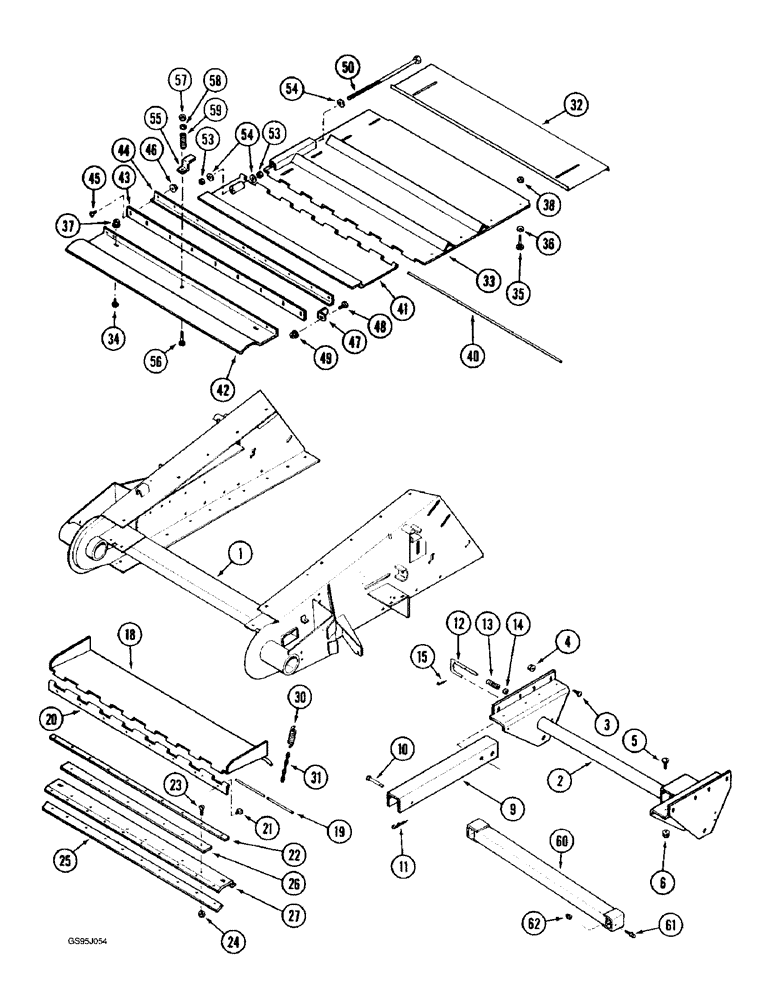

Запчасти Case IH 1682 (9-054) - FEEDER HOUSING COVERS AND LIFT (09) - CHASSIS ATTACHMENTS

1

1321459C92

HOUSING ASSY.

HOUSING - feeder, See Figure 9-52

1шт.

2

189556C3

SUPPORT

BRACKET - lift, feeder (Replaces bracket 189556C2)

1шт.

3

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - carriage, 1/2 NC x 1-1/4 inch

8шт.

4

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

8шт.

5

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

8шт.

6

231-5146

FLANGE NUT,3/8"-16

1шт.

9

197554C3

CHANNEL

- locking

1шт.

10

439-1652

HEADED PIN,9.53mm OD x 82.55mm L

PIN - headed, 3/8 x 3-1/4 inch, grade 2

1шт.

11

586591R1

COTTER PIN

PIN - cotter, 1/8 inch

1шт.

12

197849C1

ROD

- lock

1шт.

13

M296

SPRING

- rod

1шт.

14

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm) (Replaces washer 27309R1)

1шт.

15

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

18

193612C2

DOOR

- bottom

1шт.

19

175931C1

ROD

- hinge, door

1шт.

20

193611C2

HINGE

- feed plate, door

1шт.

21

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

8шт.

22

197526C1

SEALING STRIP

- seal, lower door

1шт.

23

443-11012

SCREW,Cross Flat Hd, #10-24 x 3/4"

- machine, oval Phillips, No. 10 x 3/4 inch (Replaces screw 155945)

8шт.

24

196922C1

LOCK NUT

- hex, self-locking, No. 10

8шт.

25

1319962C1

SEAL

- rear, door

1шт.

26

1319964C1

STRIP

BAR - door, bottom

1шт.

27

1319960C1

SUPPORT

- lower rear

1шт.

30

635503R1

SPRING,148.8mm Free Length

- latch, door

2шт.

31

167570C1

CHAIN,203.2mm L

- latch, door

2шт.

32

1321639C1

PLATE

COVER - upper front

1шт.

33

1321434C1

PANEL

COVER - hinged, 60 inch, center, for 54-1/2 inch feeder

1шт.

33

1321434C1

PANEL

COVER - hinged, 60 inch, center, for 60 inch feeder.

1шт.

34

434-816

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT - carriage, 1/2 NC x 1 inch,(Replaces bolt 598813R1)

1шт.

35

28661R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch

8шт.

36

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch (13 x 38 x 5 mm)

8шт.

37

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

38

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 259933R1)

8шт.

40

175907C1

ROD

- hinge

1шт.

180556C91

DOOR

ASSEMBLY - feeder, top, includes decal, Includes: Ref. 41

1шт.

41

NSS

NOT SOLD SEPARAT

DOOR - feeder

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanisms have stopped, not shown, See Figure 9-185, item 4

1шт.

42

197523C3

COVER

- feeder top

1шт.

43

634248R2

SEAL,55mm W x 1175.96mm L

- rubber, 2-5/32 (55) x 46-1/4 inch (1176 mm) long, cover

1шт.

44

197527C2

ANGLE

- support, seal (Replaces angle 197527C1)

1шт.

45

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

9шт.

46

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

47

1322144C1

ANGLE

- door stop

2шт.

48

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

2шт.

49

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

50

1321504C1

SCREW,440mm L, W/ 3/4" - 10 Nut

BOLT - adjusting, level (Replaces bolt 1321395C1)

1шт.

53

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

3шт.

54

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

(21 x 38 x 6 mm) 13/16" x 1 1/2" x .219", HDN

4шт.

55

184645C1

CLIP

- latch, latch, door

1шт.

56

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

BOLT - carriage, 3/8 NC x 2-1/4 inch, grade 2

1шт.

57

425-106

NUT,3/8"-16, Cl 5

2шт.

58

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") (10 x 21 x 1 mm) 3/8", SAE

1шт.

59

7422T

SPRING

- latch, door

1шт.

60

187213C1

SUPPORT

- rear, bottom

1шт.

61

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

62

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
