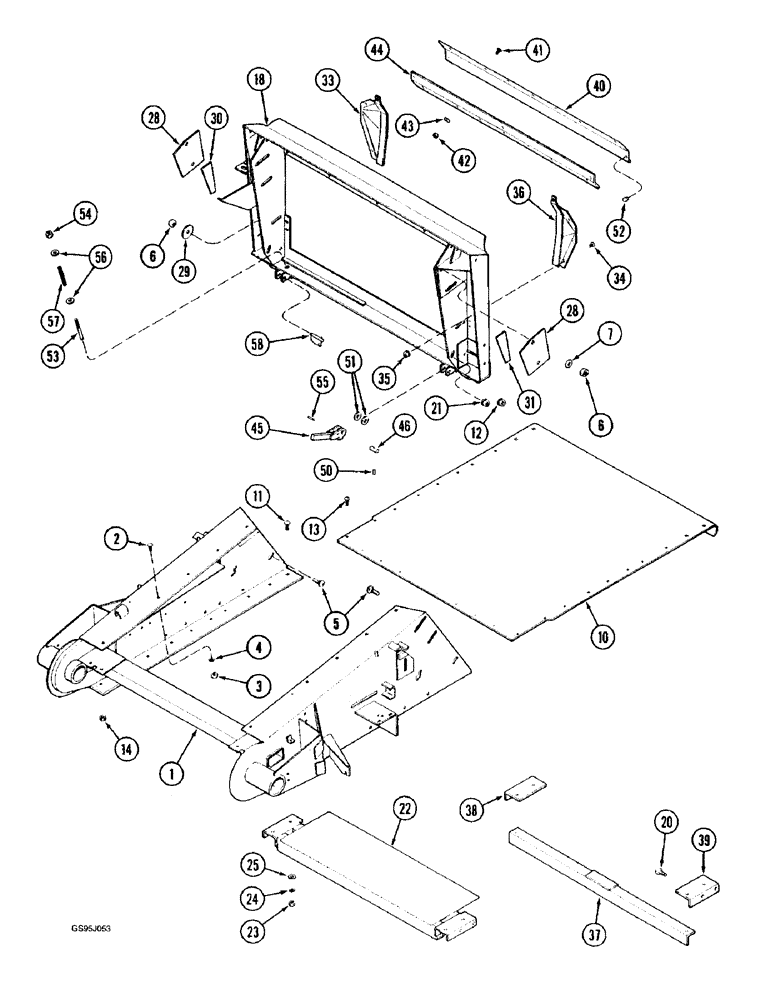

Запчасти Case IH 1682 (9-052) - FEEDER HOUSING, FRONT COVER AND ADAPTER (09) - CHASSIS ATTACHMENTS

1

1321459C92

HOUSING ASSY.

HOUSING - feeder (Replaces housing 1321459C91)

1шт.

2

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 inch - 16 NC x 1 inch (Replaces bolt 495967R1)

2шт.

3

425-106

NUT,3/8"-16, Cl 5

2шт.

4

492-11038

LOCK WASHER,3/8"

2шт.

5

433-1028

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 1 3/4", Gr 5

BOLT - carriage, 5/8 NC x 1-3/4 inch (Replaces bolt 27467R1)

4шт.

6

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

5шт.

7

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

10

1324572C1

PANEL

PLATE - lower, 54-1/2 inch feeder

1шт.

11

415-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 8

BOLT - carriage, 1/2 NC x 1-1/4 inch (Replaces bolt 28661R1)

4шт.

12

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

4шт.

13

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

6шт.

14

1319840C1

FLANGE NUT,Flg, 3/8"-16, G8

- hex flange, special, 3/8 inch NC

6шт.

18

1327697C2

ADAPTER

- feeder

1шт.

20

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

21

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

22

187209C2

SUPPORT

- reinforcement, bottom

1шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

25

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

28

1327737C2

PLATE

COVER - side, feeder (Replaces cover 1327737C1)

2шт.

29

534939R1

WASHER

- flat, 21/32 x 2-1/2 x 7/64 inch (17 x 64 x 3 mm)

2шт.

30

1327752C1

FOAM INSULATION

- side, left-hand

1шт.

31

1327753C1

FOAM INSULATION

- side, right-hand

1шт.

33

184853C1

DEFLECTOR

- front, left-hand

1шт.

34

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

35

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

36

184854C1

DEFLECTOR

- front, right-hand

1шт.

37

1319745C1

SUPPORT ASSY.

STIFFENER - support, bottom, without rock trap

1шт.

38

175913C1

ANGLE

- adapter, left-hand

1шт.

39

175941C1

ANGLE - adapter, right-hand

1шт.

40

1319475C1

COVER

- adapter, feeder

1шт.

41

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

12шт.

42

232-4115

LOCK NUT,5/16"-18, GC

NUT, LOCK, 5/16"-18, GC

12шт.

43

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm) (Replaces washer 27309R1)

12шт.

44

1319473C1

COVER

- feeder, upper, top, adapter

1шт.

45

179024C1

HINGE

HANDLE - latch, locking

2шт.

46

177141C1

PIN,15.88mm OD x 41mm L

- pivot, latch

2шт.

50

138-2005

PIN,1/4" x 1", Coiled

2шт.

51

495-81175

WASHER,21/32" x 1" x .120"

- flat, 21/32 x 1 x 7/64 inch (Replaces washer 21471R1)

4шт.

52

1321640C1

GROMMET

- cover

2шт.

53

177138C1

ROD

- latch, locking

2шт.

54

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC (Replaces nut 25077R1)

2шт.

55

38-1816

LOCK PIN,1/8" x 1", Slotted

Pin, (Replaces pin 18518R1) 1/8" x 1", Slotted

2шт.

56

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (9 x 17 x 1 mm) (Replaces washer 27309R1)

4шт.

57

367833R1

SPRING

- rod, latch

2шт.

58

1338021C1

PIN,7.94mm OD

- retaining, safety

2шт.
