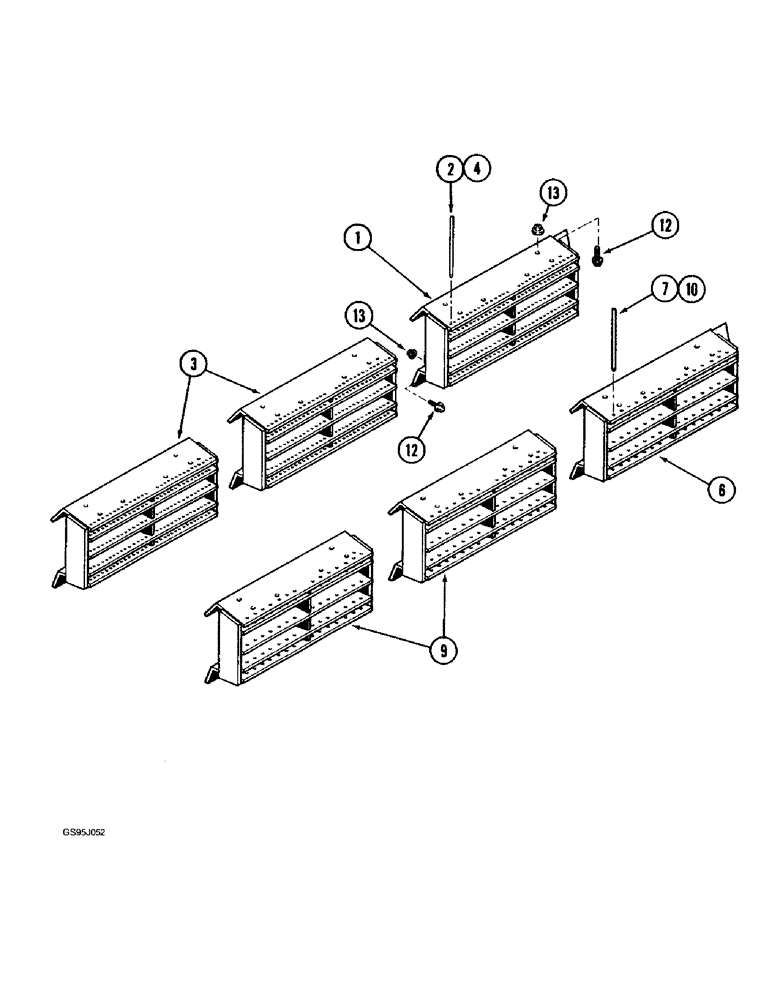

Запчасти Case IH 1682 (9-050) - CONCAVE EXTENSIONS (09) - CHASSIS ATTACHMENTS

1

1318557C1

CONCAVE

FRONT EXTENSION - small wire, used with concave assembly 1309204C3, parts list Figure 9-46, Includes: Ref. 2

1шт.

2

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire, 3/16 x 5-3/4 inch, used with concave assembly 1309204C3, parts list Figure 9-46

30шт.

3

1318558C1

CONCAVE

EXTENSION - small wire, No. 2 and 3, used with concave assembly 1309207C3, parts list Figure 9-46, Includes: Ref. 4

2шт.

4

1318563C1

SMALL PIN,4.76mm OD x 145mm L

PIN - small wire, 3/16 x 5-3/4 inch, used with concave assembly 1309207C3

60шт.

6

1318555C1

CONCAVE

FRONT EXTENSION - large wire, used with concave assembly 193782C6, parts list Figure 9-46, Includes: Ref. 7

1шт.

7

1318562C1

PIN

- large wire, 1/4 x 5-3/4 inch, used with concave assembly 193782C6

14шт.

9

1318556C1

CONCAVE

EXTENSION - large wire, No. 2 and 3, used with concave assembly 193783C5, parts list Figure 9-46, Includes: Ref. 10

2шт.

10

1318562C1

PIN

- large wire, 1/4 x 5-3/4 inch, used with concave assembly 193783C5, parts list Figure 9-46

28шт.

12

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

1шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.
