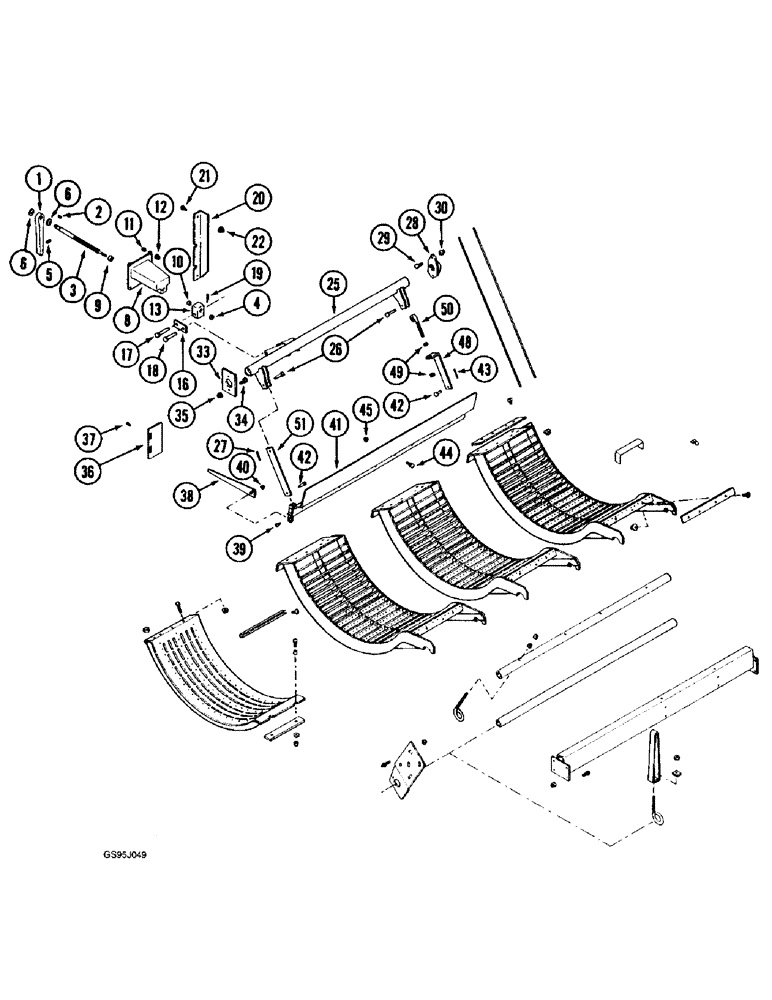

Запчасти Case IH 1682 (9-044) - CONCAVE AND CONTROL (09) - CHASSIS ATTACHMENTS

1

170282C1

HANDLE

- concave control, ratchet

1шт.

2

126-116

WOODRUFF KEY,#9, 3/16" x 3/4", HT

(Replaces key 124549) #9, 3/16" x 3/4", HT

1шт.

3

192885C1

SHAFT

- concave adjusting

1шт.

4

231-14110

LOCK NUT,5/8"-11, GB

NUT - hex, self-locking, 5/8 inch NC

1шт.

5

38-11620

PIN,1/4" x 1 1/4", Slotted

1шт.

6

25537R1

WASHER,21/32" x 1 5/16" x .095", HDN

- flat, 21/32 x 1-5/16 x 3/32 inch, hardened (17 x 33 x 2 mm)

2шт.

8

192883C93

SUPPORT

HOUSING ASSEMBLY - concave control, Includes: Ref. 9 & 10

1шт.

9

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

- concave control housing

1шт.

10

568921R1

BUSHING,15.9mm ID x 19.02mm OD x 22.23mm L

- concave control housing

1шт.

11

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

12

231-5146

FLANGE NUT,3/8"-16

4шт.

13

192886C1

NUT

- adjusting, control

1шт.

16

192888C1

PLATE

BAR - concave control, link, upper

2шт.

17

439-1838

HEADED PIN,1/2" x 2 3/8"

PIN - headed, 1/2 x 2-3/8 inch, grade 2 (Replaces pin 22899R1)

1шт.

18

439-1848

HEADED PIN,1/2" x 3"

PIN - headed, 1/2 x 3 inch, grade 2 (Replaces pin 21814R1)

1шт.

19

432-1216

COTTER PIN,3/16" x 1"

2шт.

20

182577C1

ANGLE

BRACKET - mounting, control housing

1шт.

21

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

22

231-5146

FLANGE NUT,3/8"-16

2шт.

25

191422C1

LEVER

- concave control

1шт.

26

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

PIN - headed, 1/2 x 1-7/16 inch, grade 2 (Replaces pin 21939R1)

4шт.

27

432-1216

COTTER PIN,3/16" x 1"

4шт.

28

188351C1

HUB

- concave control shaft, front

1шт.

29

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

30

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

33

192890C2

HUB

- concave control shaft, rear (Replaces hub 1319251C2)

2шт.

34

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

35

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

36

188168C1

PLATE

BAR - indicator, concave

1шт.

37

187-1067

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - hex head, self-tapping, No.10 x 1/2 inch (Replaces screw 22844R1)

2шт.

38

1318880C1

SUPPORT

- indicator, concave

1шт.

39

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

2шт.

40

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

41

1318433C1

SUPPORT

- concave anchor

1шт.

42

439-1823

HEADED PIN,12.7mm OD x 22.23mm L

PIN - headed, 1/2 x 1-7/16 inch, grade 2 (Replaces pin 21939R1)

2шт.

43

586591R1

COTTER PIN

PIN - cotter, 1/8 inch

2шт.

44

410-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 8

- hex serrated flange, 3/8 NC x 1 inch, grade 8

12шт.

45

231-5146

FLANGE NUT,3/8"-16

12шт.

48

1318894C2

SUPPORT

- concave adjusting (Replaces support 1318894C1)

1шт.

49

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

50

1317348C1

BOLT,1/2" - 13 x 114mm, Cl 5, Full Thd

EYEBOLT - adjusting, concave

1шт.

51

1318893C2

BAR

- control, concave (Replaces bar 1318893C1)

1шт.
