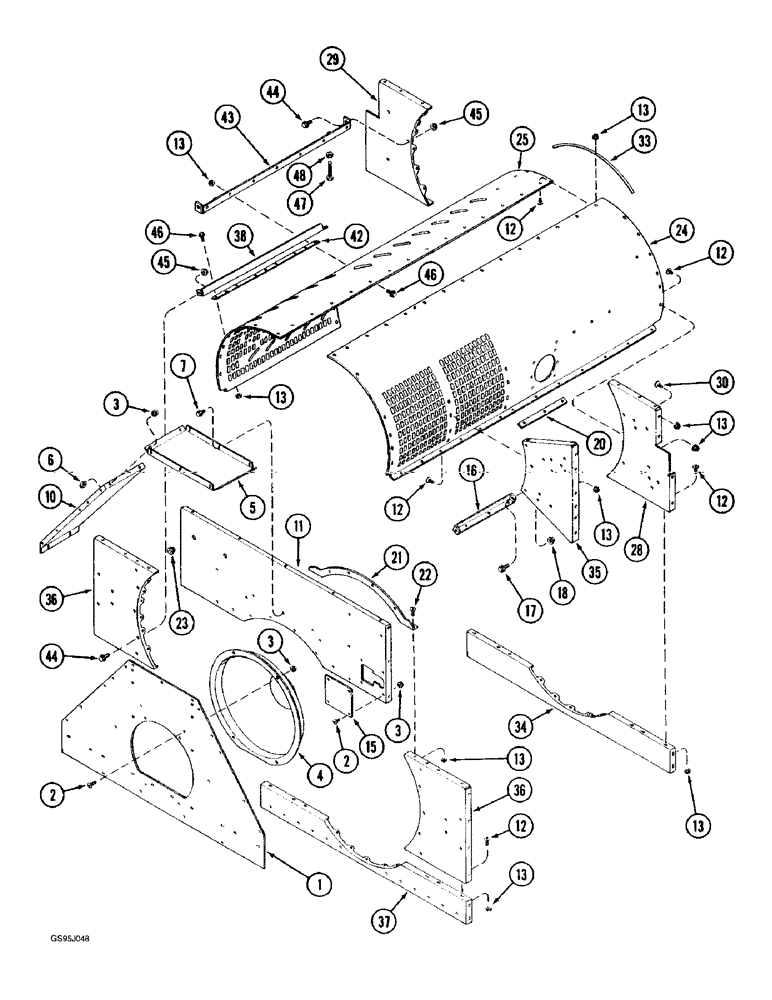

Запчасти Case IH 1682 (9-042) - ROTOR CAGE (09) - CHASSIS ATTACHMENTS

1

193967C1

PLATE

- back, discharge

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

4

182550C2

HOUSING

RETAINER - gear case (Replaces retainer 182550C1)

1шт.

5

193170C1

COVER

- top, discharge

1шт.

6

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

4шт.

7

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

3шт.

10

193393C1

COVER

- side, discharge

2шт.

11

193392C2

SUPPORT

- rotor, upper rear (Replaces support 192024C2)

1шт.

12

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

13

231-5146

FLANGE NUT,3/8"-16

1шт.

15

189693C1

BAR

PLATE - cover, rotor section, upper rear

1шт.

16

182634C3

SUPPORT

STIFFENER - cage grate, right-hand (Replaces stiffener 182634C2)

1шт.

17

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

2шт.

18

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.

20

186785C2

REINFORCEMENT

BAR - cage reinforcement, front right-hand

1шт.

21

1308696C1

SUPPORT

- upper cage, rear

1шт.

22

1302130C1

SCREW - slotted truss head lock, 3/8 NC x 3/4 inch

1шт.

23

198820C1

GROMMET

- rubber

2шт.

24

1321661C1

SUPPORT

- rotor, right-hand

1шт.

25

1318729C2

CAGE

SUPPORT - rotor, left-hand (Replaces support 1318729C1)

1шт.

28

1338054C2

SUPPORT

- rotor cage, front right-hand (Replaces support 193897C3)

1шт.

29

1338053C2

SUPPORT

- rotor cage, front left-hand (Replaces support 193896C3)

1шт.

30

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

33

1309111C1

SEAL,19mm W x 725mm L

- rubber, 28-9/16 inch (725 mm) long, support, front grain tank

1шт.

34

192385C1

SUPPORT

- seal, lower front

1шт.

35

1338057C1

SUPPORT

- rotor cage, middle, right-hand (Replaces support 191298C3)

3шт.

36

191269C4

SUPPORT

- rotor cage, rear

2шт.

37

182931C1

SUPPORT

- lower cage, rear

1шт.

38

185386C1

SUPPORT

- cage, left-hand

1шт.

42

183323C1

STRAP

BAR - cage grate

1шт.

43

1309191C1

SUPPORT

- cage, left-hand

1шт.

44

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

4шт.

45

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

46

1319250C1

LOCK BOLT,Hex, Flg, 3/8" - 16 x 1", W/ Scotch Grip

BOLT - hex flange, special, 3/8 NC x 1 inch

15шт.

47

931008R1

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5, Full Thd

- hex, 1/2 NC x 3-1/2 inch

2шт.

48

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 25933R1)

2шт.
