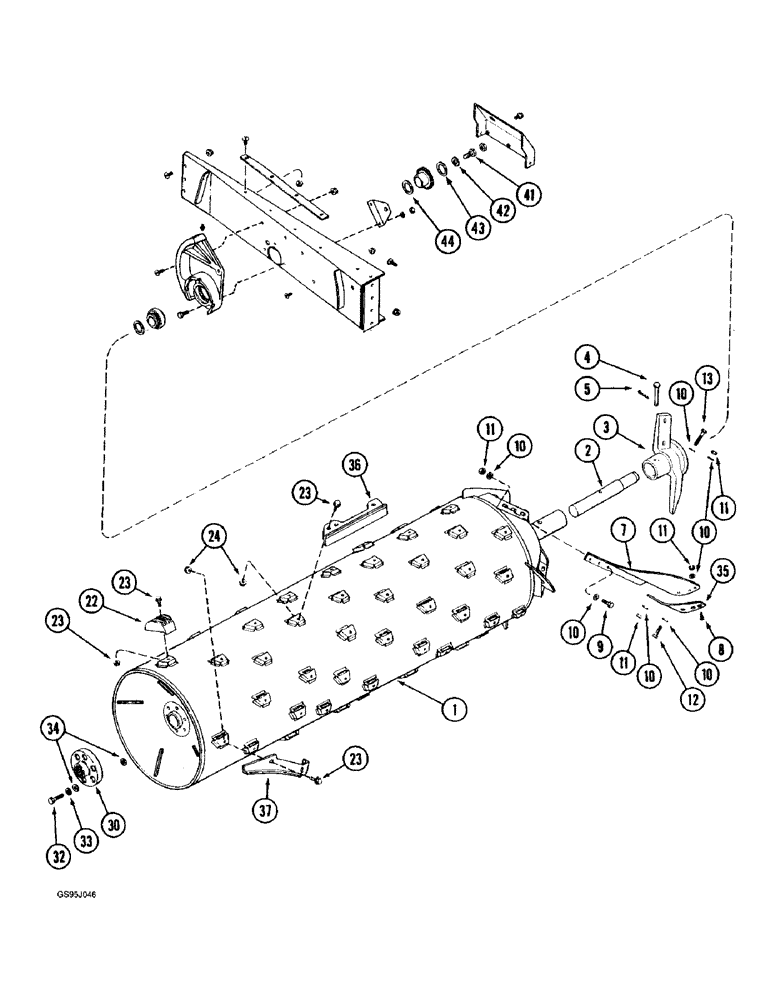

Запчасти Case IH 1682 (9-038) - ROTOR, SPECIALTY CROP (09) - CHASSIS ATTACHMENTS

1347123C3

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, edible bean (Replaces rotor assembly 1327673C1), Includes: Ref. 1 - 37

1шт.

1327673C1

ROTOR ASSEMBLY - threshing, edible bean, no longer available, order rotor assembly 1347123C3, Includes: Ref. 1 - 37

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing

1шт.

2

191545C2

SHAFT

- rotor, front (Replaces shaft 191545C1)

1шт.

3

184460C1

IMPELLER

- rotor, front (Replaces impeller 188371C3)

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (Replaces pin 217973) 1/4" x 1 1/4"

1шт.

7

1309120C1

PACKAGE

BLADE - rotor, no longer available, for service order kit 19575445C2

2шт.

19575445C2

KIT - impeller blade (Replaces blade 1309120C1), Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, flat head, 1/2 NC x 1-1/2 inch, blade retaining

6шт.

9

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

232-4118

NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8

2шт.

22

1309336C1

BAR

- rasp, without spike, edible bean

66шт.

23

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

1шт.

24

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

- hex, self-locking, special, 1/2 inch NC, grade 8

1шт.

30

1345307C1

COUPLING

- rotor drive (Replaces coupling 185166C91)

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8 (Replaces bolt 25281R1)

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, (Replaces washer 120384) 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, hardened, special, 17/32 x 1-1/2 x 1/8 inch, hardened

12шт.

35

1309186C3

SUPPORT

- wear, chrome (Replaces bar 1309186C1)

4шт.

36

1318976C2

BAR,Straight Seperator

- separator, not chromed, edible bean, if used

4шт.

36

1968969C3

BAR

- separator, chromed, edible bean, if used

4шт.

37

1327676C1

BAR

ANGLE - kicker, not chromed, if used

2шт.

37

1968968C2

BAR

ANGLE - kicker, chromed, if used

2шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch (Replaces washer S65975)

1шт.

44

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch

1шт.
