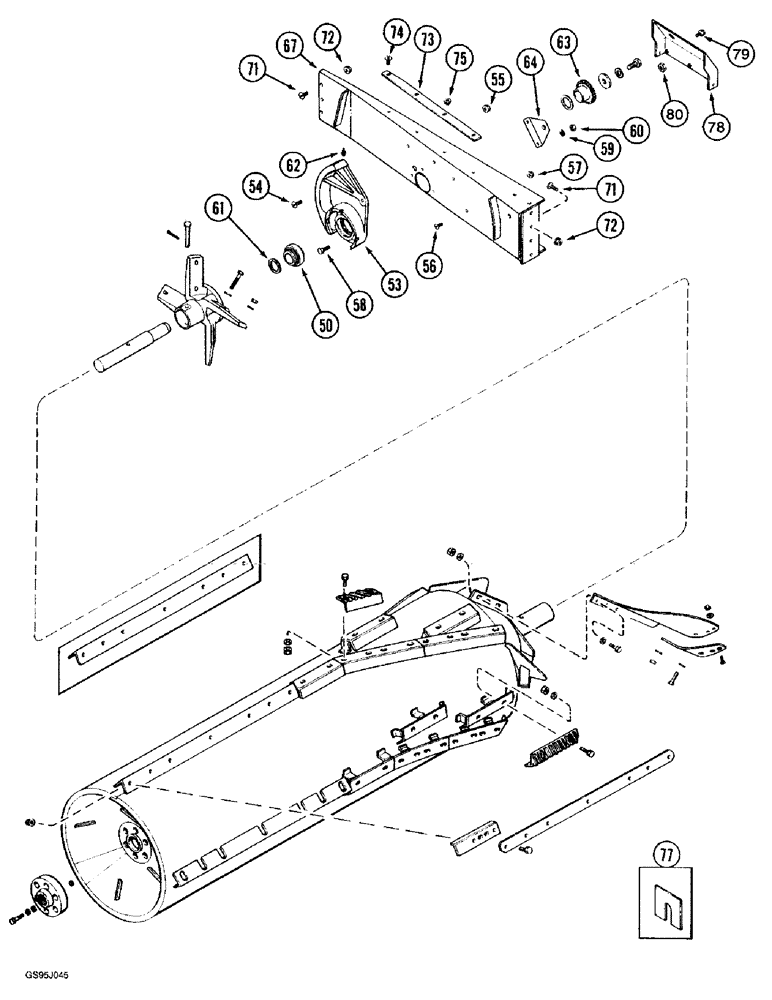

Запчасти Case IH 1682 (9-036) - ROTOR, GRAIN AND CORN (CONTD) (09) - CHASSIS ATTACHMENTS
№
Артикул
Название
Примечание
Количество
50
193282C91
BEARING ASSY,50.8 mm ID x 100 mm OD x 55.5 mm
BEARING - rotor front
1шт.
53
1309076C1
BEARING HOUSING
- rotor front bearing
1шт.
54
179464C1
SERRATED SCREW,Sl Truss Hd, 3/8" - 16 x 1 1/4"
- slotted truss head, special, 3/8 NC x 1-1/4 inch
2шт.
55
231-5146
FLANGE NUT,3/8"-16
2шт.
56
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
- slotted truss head, 5/16 NC x 1 inch
2шт.
57
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
2шт.
58
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
3шт.
59
80679
LOCK WASHER,1/20.507 CST ZND
WASHER, LOCK, 1/2"
3шт.
60
425-108
NUT,1/2" - 13, Gr 5
NUT, , Hex 1/2"-13, G5
3шт.
61
183449C1
WASHER,51.56mm ID x 69.85mm OD x 0.76mm Thk
WASHER - flat, special, front bearing housing
1шт.
62
219-87
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap
1шт.
63
1979965C1
ROTOR
- multi-position tachometer (Replaces rotor 198527C1)
1шт.
64
1301239C1
BRACKET
- rotor tachometer
1шт.
67
193384C5
SUPPORT ASSY.
SUPPORT - front bearing (Replaces support 193384C4)
1шт.
71
409-7820
BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl
8шт.
72
231-5148
FLANGE NUT,Flg, USR, 1/2"-13
8шт.
73
1308967C1
BAR
- front door hold down
1шт.
74
161945C1
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"
- slotted truss head, 5/16 NC x 1 inch
4шт.
75
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
NUT - hex serrated flange, 5/16 inch NC
4шт.
1324208C1
SHIM KIT
KIT - shim, rotor rasp, Includes: Ref. 77
1шт.
77
NSS
NOT SOLD SEPARAT
SHIM - 0.010 inch (0.254 mm)
28шт.
77
NSS
NOT SOLD SEPARAT
SHIM - 0.030 inch (0.762 mm)
28шт.
77
NSS
NOT SOLD SEPARAT
SHIM - 0.053 inch (1.270 mm)
28шт.
77
NSS
NOT SOLD SEPARAT
SHIM - 0.093 inch (2.286 mm)
28шт.
78
182845C4
SHIELD
- sensor, RPM
1шт.
79
409-7612
BOLT,3/8"-16 x 1.09" OAL
- hex serrated flange, 3/8 NC x 3/4 inch
3шт.
80
131-872
SPRING NUT,Ret, 3/8"-16
- hex, 3/8 inch NC
3шт.
Выбрано товаров: 27
