Запчасти Case IH 1682 (9-034) - ROTOR, GRAIN AND CORN (09) - CHASSIS ATTACHMENTS

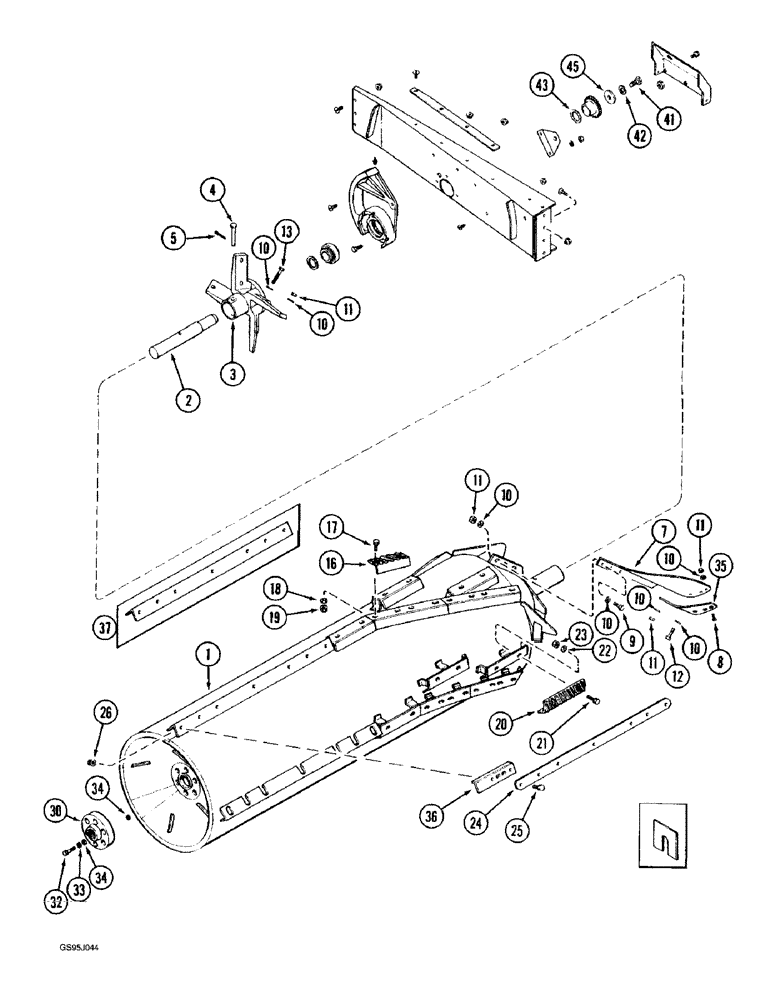

Схема запчастей Case IH 1682 - (9-034) - ROTOR, GRAIN AND CORN (09) - CHASSIS ATTACHMENTS
32
30
36
26
11
10
17
22
10
33
20
10
7
24
10
3
43
41
37
10
19
12
35
5
4
8
13
34
9
45
10
42
34
11
25
18
11
11
2
21
23
1
10
16

Артикул

Название

Примечание

Количество

184464C2

ROTOR ASSY.

ROTOR ASSEMBLY - threshing, straight rear bar (Replaces rotor assembly 181954c96 ), Includes: Ref. 1 - 45

1шт.

181954C96

ROTOR

ASSEMBLY - threshing, no longer available, order rotor assembly 184464C2, Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

ROTOR - threshing

1шт.

2

191545C2

SHAFT

- rotor, front (Replaces shaft 191545C1)

1шт.

3

188371C3

TURBINE

IMPELLER - rotor, front

1шт.

4

439-51272

HEADED PIN,3/4" x 4 1/2", G5

PIN - headed, 3/4 x 4-1/2 inch

1шт.

5

432-1620

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), (Replaces pin 217973) 1/4" x 1 1/4"

1шт.

7

1309120C1

PACKAGE

BLADE - rotor, no longer available, for service order kit 1957445C3.

4шт.

1957445C3

SET OF BLADES

KIT - impeller blade (Replaces blade 1309120C1), Includes: Ref. 7 - 13

1шт.

7

NSS

NOT SOLD SEPARAT

BLADE - impeller

2шт.

8

361-45024

HEX SOC SCREW,1/2" - 13 x 1-1/2"

BOLT - hex socket, flat head, 1/2 NC x 1-1/2 inch, blade retaining

6шт.

9

326-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

6шт.

10

396-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

- flat, 17/32 x 1-1/4 x 3/16 inch, hardened

26шт.

11

199528A1

NUT

- hex, self-locking, 1/2 inch NC, grade 8

16шт.

12

326-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 8

2шт.

13

326-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

2шт.

16

1308830C2

RASP BAR

BAR - helical rasp, 120 degree (Replaces bar 1308830C1)

16шт.

16

1324581C3

RASP BAR

BAR - helical rasp, 120 degree, chrome

16шт.

Item is not a part of 184464C2 rotor assembly and must be purchased separately.

1шт.

17

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 20537R1) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

32шт.

18

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

32шт.

19

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

32шт.

20

1308668C1

RASP BAR

BAR - straight, rasp

12шт.

20

1324582C1

BAR

- straight, rasp, chrome

12шт.

Item is not a part of 184464C2 rotor assembly and must be purchased separately.

1шт.

21

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 20537R1) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

24шт.

22

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, 13/32 x 13/16 x 3/32 inch, hardened

24шт.

23

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

24шт.

24

1303038C2

BAR

- rotor, rear straight

4шт.

24

1324580C2

BAR

- rotor, rear straight, chrome

4шт.

Item is not a part of 184464C2 rotor assembly and must be purchased separately.

1шт.

25

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

28шт.

26

231-5146

FLANGE NUT,3/8"-16

28шт.

30

1345307C1

COUPLING

- rotor drive (Replaces coupling 185166C91)

1шт.

32

426-848

BOLT,Hex, 1/2" - 13 x 3", Gr 8

- hex, 1/2 NC x 3 inch, grade 8 (Replaces bolt 25281R1)

6шт.

33

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

34

540468R1

WASHER,13.49mm ID x 38.1mm OD x 3.05mm Thk

- flat, 17/32 x 1-1/2 x 1/8 inch, hardened

12шт.

35

1309186C3

SUPPORT

- wear, chrome (Replaces bar 183343C1)

4шт.

36

183335C3

SUPPORT

BRACKET - rotor extension, used with rotor assembly 181954C96

2шт.

37

1324031C1

PACKAGE

KIT - separator angle bar support (Set of 4 supports) used with rotor assembly 181954C96

1шт.

41

424-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 2

- hex, 3/4 NC x 1-3/4 inch, grade 2

1шт.

42

492-11075

LOCK WASHER,3/4"

3/4"

1шт.

43

495-81097

WASHER,51.59mm ID x 69.85mm OD x 2.29mm Thk

- flat, 2-1/32 x 2-3/4 x 1/16 inch

1шт.

45

70330C1

WASHER,19.84mm ID x 63.5mm OD x 6.35mm Thk

- flat, special, 25/32 x 2-1/2 x 1/4 inch (20 x 63 x 6 mm)

1шт.

Выбрано товаров: 44
