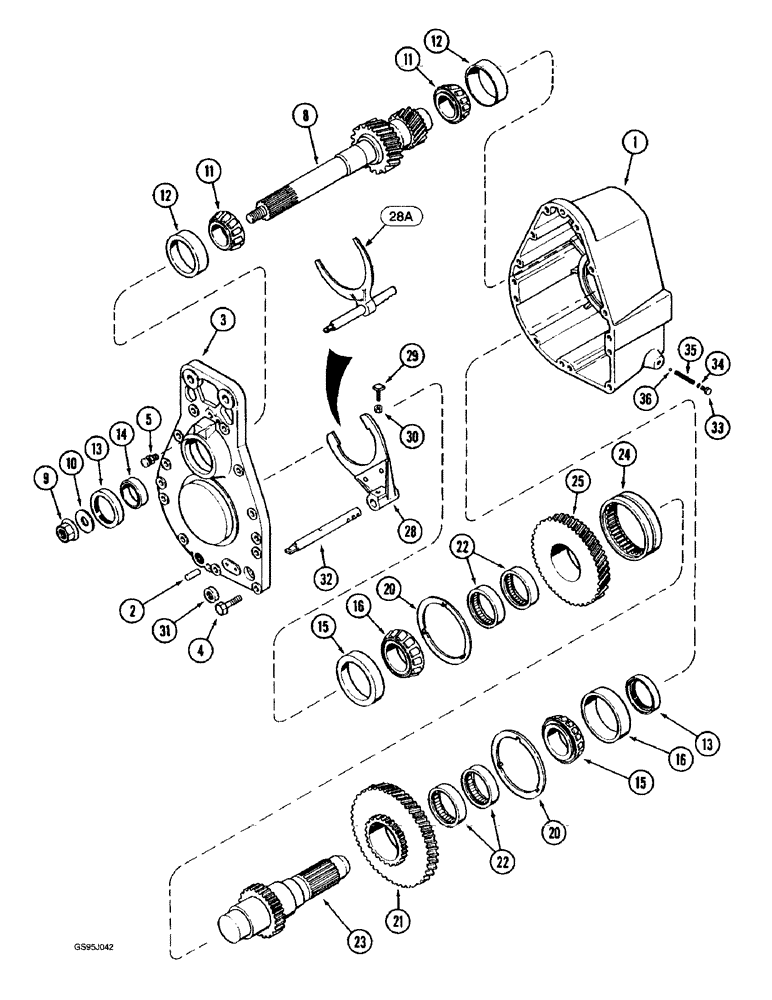

Запчасти Case IH 1682 (9-030) - ROTOR DRIVE GEAR ASSEMBLY (09) - CHASSIS ATTACHMENTS

1315328C4

GEARBOX

DRIVE ASSEMBLY - gear rotor (Replaces drive assembly 194063C91), Includes: Ref. 1 - 36

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

1

194064C91

HOUSING ASSY.

HOUSING ASSEMBLY - drive gear, Includes: Ref. 2

1шт.

2

37-1820

DOWEL,1/2" x 1 1/4"

PIN - dowel, 1/2 x 1-1/4 inch, hardened (Replaces pin 19846R1)

2шт.

3

194039C3

COVER

- rotor gear housing (Replaces cover 194039C1)

1шт.

4

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

11шт.

5

1338222C1

BREATHER,1/8"-27, Short

PT (Replaces breather 152127H1) 1/8"-27, Short

1шт.

8

1330280C1

SHAFT

- input, rotor

1шт.

9

1315288C1

FLANGE NUT

- hex, self-locking, special, 7/8 inch NC

1шт.

10

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

- flat, 57/64 x 1-7/8 x 7/32 inch, hardened

1шт.

11

ST783A

TAPERED BEARING,2" ID x 3.6718" OD x 1.1875"

BEARING - tapered roller

2шт.

12

ST863

BEARING CUP,93.22mm OD x 23.81mm W

CUP - tapered roller bearing

2шт.

13

194051C1

SEAL,63.42mm ID x 82.8mm OD x 11mm Thk

- oil, cover

2шт.

14

194047C1

BUSHING,49.16mm ID x 63.5mm OD x 21.02mm L

- input shaft

1шт.

15

22396V

BEARING, CUP,112.739mm OD x 30.37mm W

CUP - tapered roller bearing (Replaces cup 13363D)

2шт.

16

13367DC

ROLLER BEARING

BEARING - tapered roller

2шт.

20

194057C1

THRUST WASHER,127mm ID x 152.4mm OD x 1.6mm Thk

WASHER - thrust

2шт.

21

193824C1

GEAR

GEAR - driven, 58 teeth

1шт.

22

619085C91

BEARING, NEEDLE,Needle, 76.19mm ID x 89.04mm OD x 19.05mm W

BEARING - needle

4шт.

23

194059C1

SHAFT

- rotor drive output

1шт.

24

194069C1

COLLAR

- shift

1шт.

25

193826C1

PINION

GEAR - driven, 51 teeth

1шт.

28

195088C1

FORK

- shift, collar, no longer used, order fork 100400A1

1шт.

28a

100400A1

SHIFTER FORK

FORK - shift

1шт.

29

573985R1

SET SCREW,Sq Hd, 3/8"-24 x 1"

SCREW - set, square head 3/8 NF x 1 inch, cup point

1шт.

30

124925

JAM NUT,Jam, 3/8"-24, G5

1шт.

31

G10450

OIL SEAL,19.05mm ID x 31.85mm OD x 6.35mm Thk

- oil, rail

1шт.

32

194067C2

SHAFT

- shifter, rail, used with fork 195088C1

1шт.

33

129998

PLUG,1/2" - 20 ORB

(Replaces plug 9410357), Incl. Ref. 34 Hex Hd, 1/2"-20 ORB

1шт.

35

107234C1

SPRING

- compression

1шт.

36

211-1014

BALL,7/16" Dia

- chrome alloy steel, 7/16 inch, grade 24 (Replaces steel ball 17014R1)

1шт.

34

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, Plug, 5/16 inch OD tube (Replaces O-ring 369384R1)

1шт.
