Запчасти Case IH 1682 (9-026) - ROTOR DRIVE SUPPORTS (09) - CHASSIS ATTACHMENTS

1

1315328C4

GEARBOX

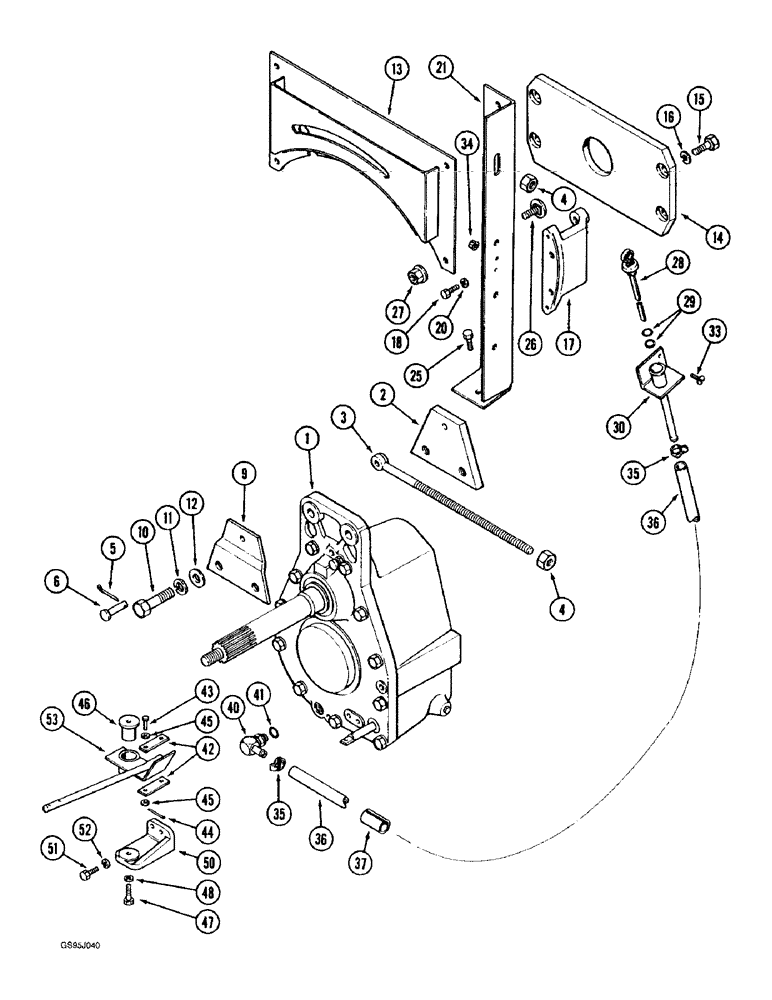

DRIVE ASSEMBLY - gear, parts list Figure 9-30

1шт.

1315328C4R

REMAN-ROTOR DRIVE

REMAN - Rotor Drive 2 speed

1шт.

2

188141C1

SUPPORT

- gear housing anchor

1шт.

3

188143C1

EYEBOLT

- gear housing

1шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

432-1216

COTTER PIN,3/16" x 1"

1шт.

6

439-5832

HEADED PIN,12.7mm OD x 50.8mm L

PIN - headed, 1/2 x 2 inch

1шт.

9

188142C1

SUPPORT

- gear housing anchor

1шт.

10

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch

2шт.

11

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

12

495-11081

WASHER,3/4", SAE

(Replaces washer 131017) 3/4", SAE

2шт.

13

188137C1

SUPPORT ASSY.

SUPPORT - gear housing, if used

1шт.

13

1338397C1

SUPPORT ASSY.

SUPPORT - gear housing, welded, if used

1шт.

14

181315C1

PLATE

- gear housing support

1шт.

15

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

17

181314C2

BLOCK

- housing support

2шт.

18

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

20

492-11038

LOCK WASHER,3/8"

1шт.

21

188190C3

SUPPORT

- gear housing, left-hand, used with support 188137C1 (Replaces support 188190C2)

1шт.

21

188191C3

SUPPORT

- gear housing, right-hand, used with support 188137C1 (Replaces support 188191C2)

1шт.

25

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

26

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT - carriage, 1/2 NC x 1-1/4 inch

6шт.

27

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

28

194066C91

DIPSTICK

GAUGE - rotor gear housing, level, lube

1шт.

29

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

30

181675C1

TUBE

- gear case oil gauge

1шт.

33

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

35

214-1404

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

CLAMP - adj, 1/4 - 5/8 inch dia, hose

2шт.

36

194043C1

HYDRAULIC HOSE,12.70 mm ID x 483.00 mm

- Oil, Gear case drain and fill, Cut from S118466X bulk hose below 12.70 mm ID x 483.00 mm

1шт.

37

163493C1

STRIP,19.05mm ID x 25.4mm OD x 45.7mm L

SLEEVE - rubber, 3/4 ID x 1-13/64 inch long, hose

1шт.

40

188272C1

ELBOW

- 90 degree adjustable, 3/4 thread x 1/2 inch tube end

1шт.

41

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

42

188169C1

BAR

- shift lever

2шт.

43

439-1416

HEADED PIN,1/4" x 1"

PIN - headed, 1/4 x 1 inch, grade 2 (Replaces pin 21886R1)

2шт.

44

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

45

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

4шт.

46

188170C1

NUT

NUT - shift lever, pivot

1шт.

47

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

48

492-11038

LOCK WASHER,3/8"

1шт.

50

188171C1

SUPPORT

- gear housing pivot

1шт.

51

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

52

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

53

184561C1

LEVER

- shift, rotor drive

1шт.

S118466X

LARGE HOSE

HOSE - bulk, 25 foot roll

1шт.
