(9-024) - UNIVERSAL JOINT ASSEMBLY

Запчасти Case IH 1682 (9-024) - UNIVERSAL JOINT ASSEMBLY (09) - CHASSIS ATTACHMENTS

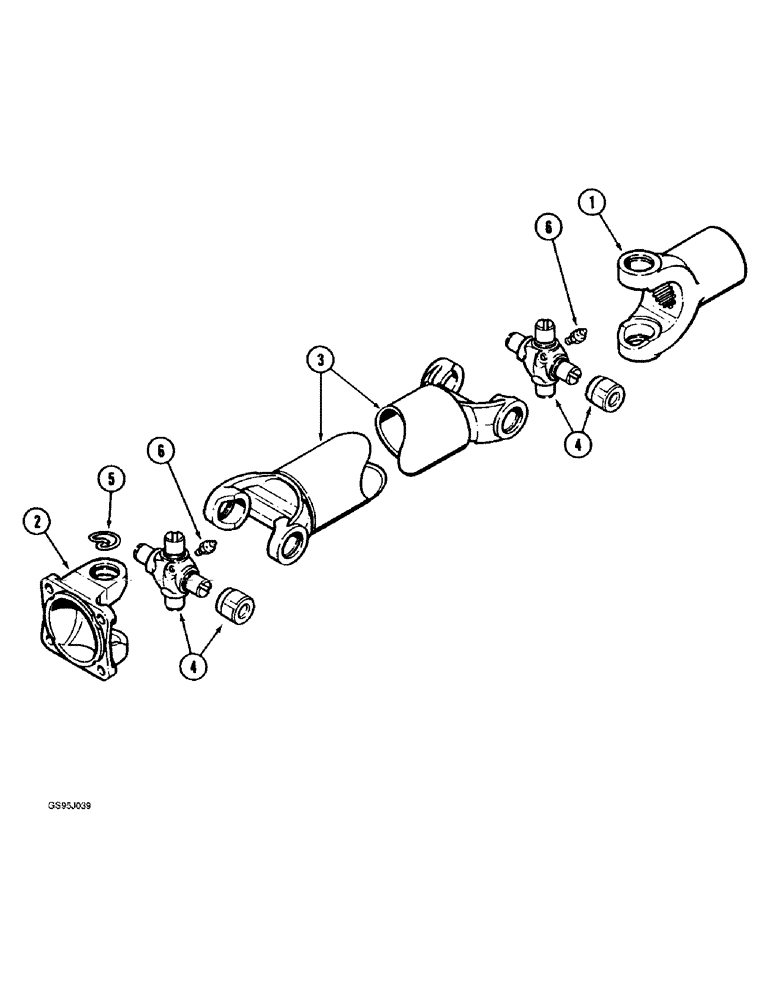

Схема запчастей Case IH 1682 - (9-024) - UNIVERSAL JOINT ASSEMBLY (09) - CHASSIS ATTACHMENTS
4
1
4
5
6
3
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

184859C91

JOINT

ASSEMBLY - universal, torque tube, Includes: Ref. 1 - 6

1шт.

1

181903C1

YOKE

- 1-5/8 inch

1шт.

2

S64879

FLANGE

YOKE - flange (Replaces yoke 211259R1)

1шт.

3

1305691C1

TUBE,3.5" OD, 79.88 mm Length

- joint

1шт.

133137C91

KIT

- universal joint, Includes: Ref. 4 - 6

2шт.

4

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

5

913713R1

RING, SNAP

RING - retaining, snap

4шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.
