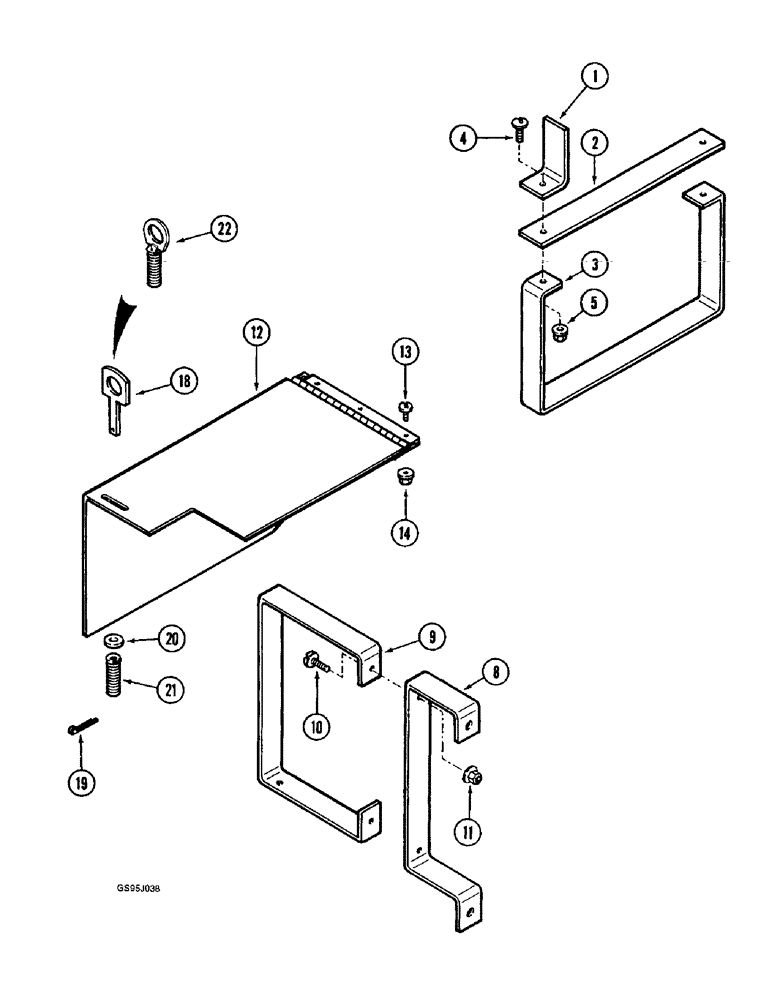

Запчасти Case IH 1682 (9-022) - SEPARATOR DRIVE TORQUE TUBE GUARD (09) - CHASSIS ATTACHMENTS

1

1305033C1

ANGLE

- guard, tube

2шт.

2

1305031C1

BAR

- guard, tube

1шт.

3

1305032C1

STRAP

SUPPORT - guard, tube

1шт.

4

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

8

1305034C1

STRAP

SUPPORT - guard, lower

1шт.

9

1305035C2

STRAP

SUPPORT - guard, lower

1шт.

10

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

11

231-5146

FLANGE NUT,3/8"-16

2шт.

12

1308409C2

SHIELD

- support, joint

1шт.

13

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

- slotted truss head, 1/4 NC x 1/2 inch

3шт.

14

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

3шт.

18

454502R1

LATCH

- door, shield, no longer used, order latch 188029C1 below

1шт.

19

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , Used with latch 454502R1 1/8" x 3/4"

1шт.

20

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), Used with latch 454502R1 3/8", SAE

2шт.

21

M296

SPRING

- latch, used with latch 454502R1

1шт.

22

188029C1

LATCH

- door, shield (Replaces latch 454502R1)

1шт.
