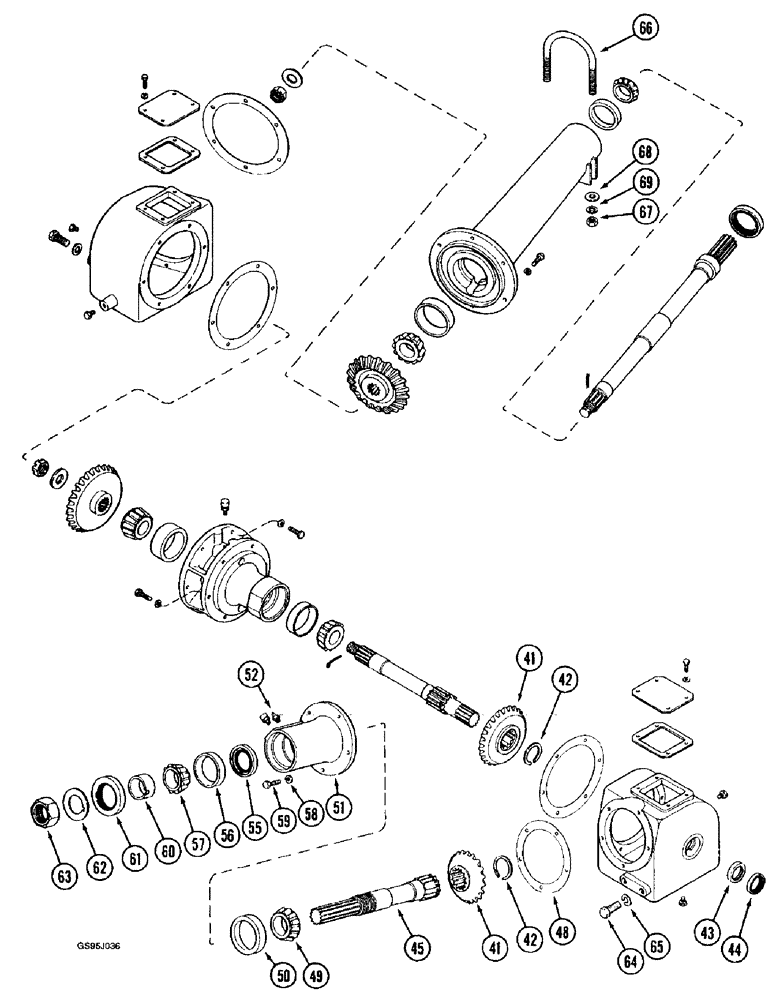

Запчасти Case IH 1682 (9-018) - MAIN DRIVE GEAR BOX ASSEMBLY (CONTD) (09) - CHASSIS ATTACHMENTS

187486C94

GEARBOX ASSY

GEAR BOX ASSEMBLY - main drive, 41 - 65 and 1 - 40 on Figure 9-16

1шт.

41

189542C1

GEAR-SET

GEAR SET - pinion, secondary

1шт.

42

A27089

SNAP RING,2.36mm Thk, Ext

RING - snap, external (Replaces ring 327068R1)

2шт.

43

1957347C1

OIL SEAL

- oil, inner (Replaces seal 381480R1)

1шт.

44

1305783C1

SEAL

- oil, outer

1шт.

45

189545C1

SHAFT

- output

1шт.

195484C2

SHIM KIT

KIT - shim, rear housing, output hub, Includes: Ref. 48

1шт.

48

NSS

NOT SOLD SEPARAT

SHIM - hub, 0.020 inch (0.508 mm)

2шт.

48

NSS

NOT SOLD SEPARAT

SHIM - hub, 0.007 inch (0.178 mm)

4шт.

48

NSS

NOT SOLD SEPARAT

SHIM - hub, 0.005 inch (0.127 mm)

4шт.

49

298194R91

ROLLER BEARING,44.45mm ID x 29.37mm W

CONE - bearing, inner

1шт.

50

170254R1

BEARING, CUP

CUP - bearing, inner

1шт.

51

189546C1

HUB

- output

1шт.

52

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

55

192528C1

OIL SEAL,42.85mm ID x 76.33mm OD x 8mm Thk

- oil, inner

1шт.

56

130503H

BEARING CUP

CUP - tapered roller bearing, outer (Replaces cup ST987)

1шт.

57

ST2118

TAPERED BEARING,1.75" ID x 3.27" OD x 0.9375"

CONE - bearing, outer (Replaces cone ST2117)

1шт.

58

492-11038

LOCK WASHER,3/8"

5шт.

59

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

5шт.

60

189547C1

SPACER

BUSHING - retainer, bearing

1шт.

61

338904R91

SEAL

SEAL - oil, outer

1шт.

62

185774C1

LOCK WASHER

- locking, nut

1шт.

63

19645R1

NUT

- hex lock, 1-3/4 inch NF

1шт.

64

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

65

121547

PIN

WASHER - lock, 5/8 inch

4шт.

66

1305511C1

BOLT

- U-type, housing

1шт.

67

425-1010

NUT,5/8"-11, G5

2шт.

68

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

69

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.
