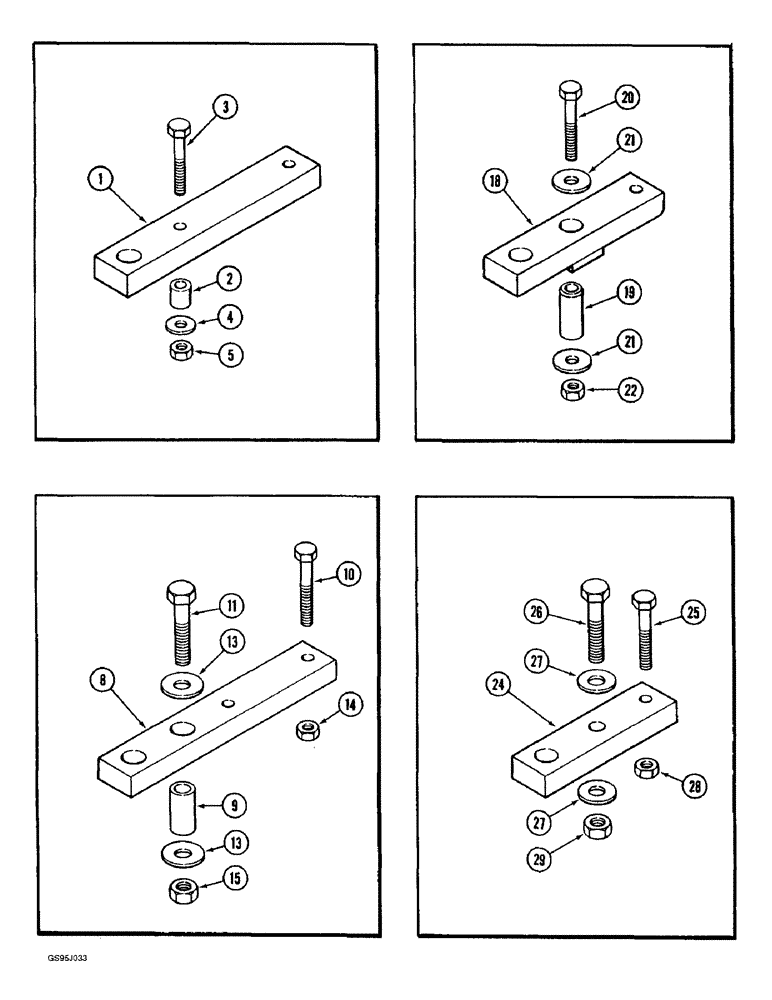

Запчасти Case IH 1682 (9-012) - DRAWBAR EXTENSIONS (09) - CHASSIS ATTACHMENTS

1423027

BAR ATTACHMENT ASSEMBLY - extension, drawbar, for tractors with three point hitch, Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

BAR - extension

1шт.

2

26915B

SPACER

- bar, 1-1/4 inch (32 mm) long

1шт.

3

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

2шт.

4

396-41081

WASHER,20.63mm ID x 44.45mm OD x 5.56mm Thk

- flat, 13/16 x 1-3/4 x 7/32 inch, hardened (Replaces washer 25557R1)

2шт.

5

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

1423028

LID

BAR ATTACHMENT ASSEMBLY - extension, drawbar, for heavy duty swinging drawbar, Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

BAR - extension

1шт.

9

214564C1

SPACER

- bar, 1-3/8 inch (35 mm) long

1шт.

10

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch, if used

1шт.

10

413-1276

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- hex, 3/4 NC x 4-3/4 inch, if used

1шт.

11

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

1шт.

13

396-41106

WASHER,1.06" ID x 2.5" OD x 0.22" Thk

- flat, 1-1/16 x 2-1/2 x 7/32 inch (Replaces washer 26665R1)

2шт.

14

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

15

129-110

NUT,1"-8, G5

(Replaces nut 220088) 1"-8, G5

1шт.

1423029

BAR ATTACHMENT ASSEMBLY - extension, drawbar, for heavy duty swinging drawbar, Includes: Ref. 18 - 22

1шт.

18

NSS

NOT SOLD SEPARAT

BAR - extension

1шт.

19

67864C1

PIN

SPACER - bar, 3- 3/8 inch (86 mm) long

1шт.

20

413-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- hex, 3/4 NC x 2-3/4 inch, if used

1шт.

20

413-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

- hex, 3/4 NC x 4-1/2 inch, if used

1шт.

20

413-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

- hex, 3/4 NC x 5 inch, if used

1шт.

21

481540R1

WASHER

- flat, 25/32 x 2-1/8 x 1/4 inch (20 x 54 x 6 mm)

2шт.

22

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

1423030

BAR ATTACHMENT ASSEMBLY - extension, drawbar, not used on IH tractors, Includes: Ref. 24 - 29

1шт.

24

NSS

NOT SOLD SEPARAT

BAR - extension

1шт.

25

413-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- hex, 3/4 NC x 4-1/4 inch

1шт.

26

413-1672

BOLT,Hex, 1" - 8 x 4-1/2", Gr 5

- hex, 1 NC x 4-1/2 inch

1шт.

27

396-41106

WASHER,1.06" ID x 2.5" OD x 0.22" Thk

- flat, 1-1/16 x 2-1/2 x 7/32 inch (Replaces washer 26665R1)

2шт.

28

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

1шт.

29

129-110

NUT,1"-8, G5

(Replaces nut 220088) 1"-8, G5

1шт.
