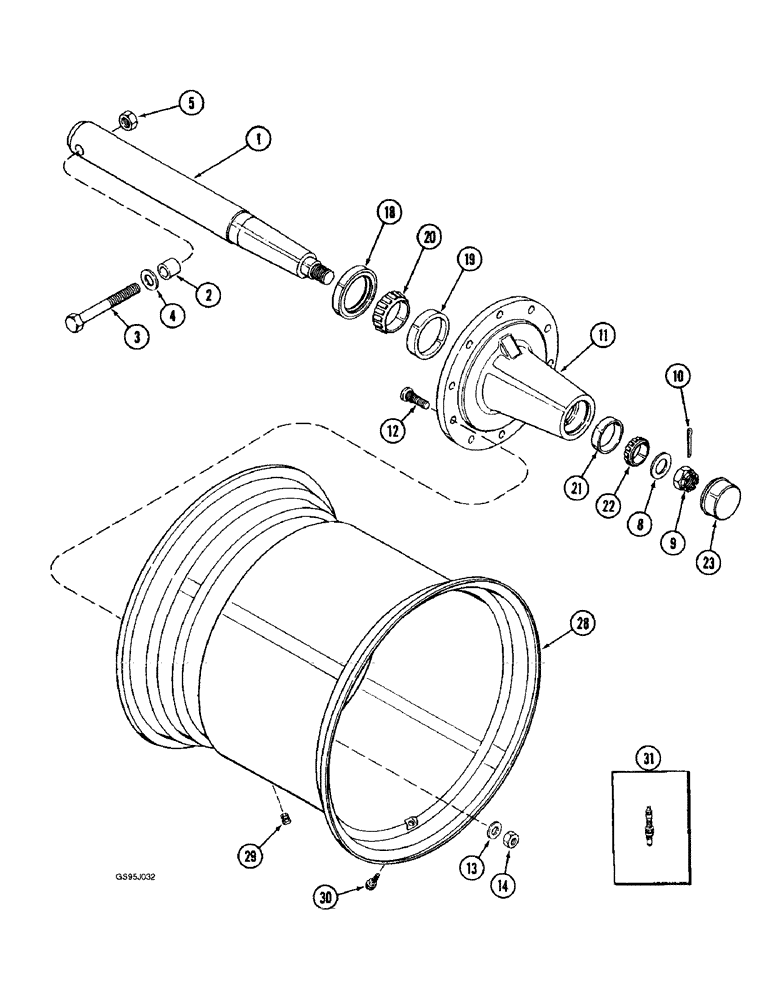

Запчасти Case IH 1682 (9-010) - AXLE AND WHEELS (09) - CHASSIS ATTACHMENTS

1

189328C1

SPINDLE

- axle

2шт.

2

179237H1

SPACER

- bolt, 1-1/8 inch (29 mm) long, if used

1шт.

2

187058C1

SPACER

- bolt, 1-7/16 inch (37 mm) long, if used

1шт.

3

413-16120

BOLT,Hex, 1" - 8 x 7-1/2", Gr 5

- hex, 1 NC x 7-1/2 inch

2шт.

4

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

2шт.

5

129-110

NUT,1"-8, G5

(Replaces nut 220088) 1"-8, G5

2шт.

8

49068K

WASHER

- flat, 1-17/32 x 2-1/2 x 3/16 inch (39 x 74 x 5 mm)

2шт.

9

25-1324

SLOTTED NUT,1 1/2"-12, G5

NUT - hex slotted, 1-1/2 inch NF (Replaces nut 427667)

2шт.

10

432-1648

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

2шт.

11

189329C93

HUB

ASSEMBLY - wheel (Replaces hub assembly 189329C92), Includes: Ref. 12 - 23

2шт.

12

565130R3

BOLT,3/4" - 16 x 2 5/8", Class 8

- wheel hub

10шт.

13

396-31081

WASHER,20.63mm ID x 38.1mm OD x 5.56mm Thk

10шт.

14

429-1112

NUT,3/4"-16, G5

- hex, 3/4 inch NF, grade 8 (Replaces nut 426639)

10шт.

18

189333C1

OIL SEAL

- oil, inner

1шт.

19

529452R1

BEARING ASSY,2.9528" ID x 4.5276" OD x 0.9843"

CONE - bearing, inner

1шт.

20

529453R1

BEARING, CUP

CUP - bearing, inner

1шт.

21

376463C1

BEARING CUP

CUP - tapered roller bearing, 3-15/64 inch OD, outer

1шт.

22

533729R91

ROLLER BEARING,1.968" ID x 3.2283" OD x 0.8465"

- tapered roller, outer

1шт.

23

189425C1

HUB CAP

CAP - hub

1шт.

28

196197C2

WHEEL ASSY.

WHEEL - drive, rim, DWH 25-26 (For 286-26 tire) (Replaces wheel 196197C1)

2шт.

29

417194C1

PLUG

- rim hole

2шт.

30

179482C1

VALVE STEM

VALVE - inflation, 7/16 inch diameter, tubeless tire

2шт.

31

407184R1

VALVE

- inflation

2шт.
