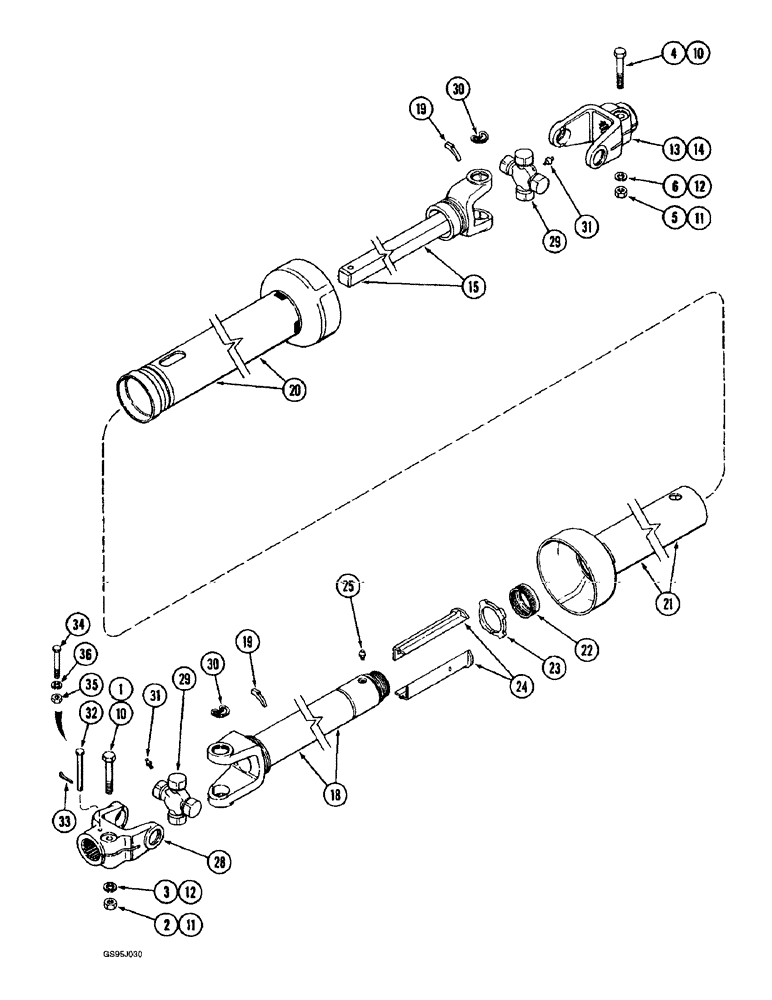

Запчасти Case IH 1682 (9-006) - PTO KNUCKLE SHAFT (09) - CHASSIS ATTACHMENTS

1

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

1шт.

2

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

4

413-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

- hex, 5/8 NC x 3-1/4 inch

1шт.

5

425-1010

NUT,5/8"-11, G5

1шт.

6

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

10

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

181901C91

SHAFT

ASSEMBLY - PTO, 1-3/4 inch spline, uses items 1-6, Includes: Ref. 13 - 31

1шт.

181900C91

SHAFT

ASSEMBLY - PTO, 1-3/8 inch spline, uses items 10-12, Includes: Ref. 13 - 31

1шт.

13

1305684C1

LINKAGE YOKE

YOKE - clamp (1-3/8 inch spline shaft)

1шт.

14

1305685C1

YOKE

- clamp (1-3/4 inch spline shaft)

1шт.

15

1305682C1

YOKE

- shaft

1шт.

18

1305686C1

TUBE,2.75" Diameter, 21.19" Length

YOKE - tube

1шт.

19

135992C2

BEARING COVER

- segment, shield

8шт.

20

1305683C1

SHIELD

- outer, with decal

1шт.

21

1305687C1

SHIELD

- inner

1шт.

22

S85992

CAP COVER

COUPLING - yoke, dust (Replaces coupling 69882C1)

1шт.

23

222699C1

WASHER

BEARING - ring, bearing

1шт.

24

222698C1

BLOCK

BUSHING - shaft, sleeve

2шт.

25

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

28

1305688C1

YOKE

- clamp, 1-5/8 inch

1шт.

133137C91

KIT

- universal joint, Includes: Ref. 29 - 31

2шт.

29

NSS

NOT SOLD SEPARAT

CROSS - bearing

1шт.

30

913713R1

RING, SNAP

RING - retaining, snap

4шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

32

189654C1

PIN

- headed, 3/8 x 3-1/4 inch, no longer used, order items 34, 35, and 36 below

1шт.

33

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), , No longer used, order items 34, 35, and 36 below 1/8" x 3/4"

1шт.

34

326-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 8

1шт.

35

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

36

496-21041

WASHER,13/32" x 13/16" x .089", HDN

- flat, 13/32 x 13/16 x 3/32", hardened

1шт.
