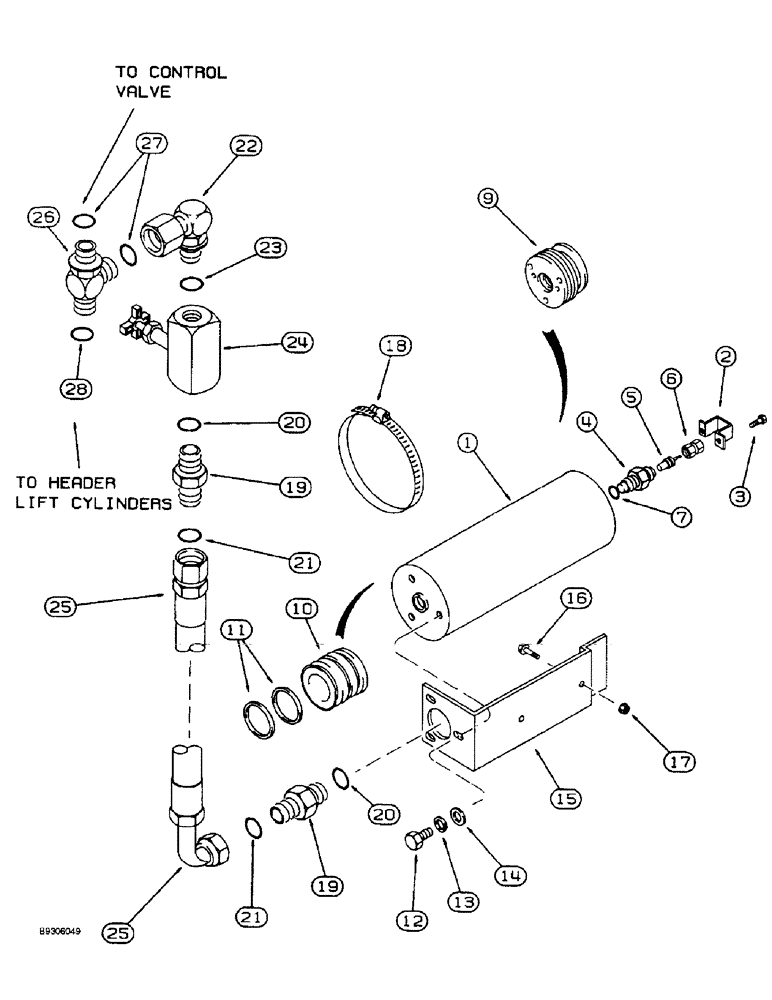

Запчасти Case IH 1682 (8-24) - ACCUMULATOR ASSY., MOUNTING AND SYSTEM (07) - HYDRAULICS

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - with threaded ends, replaces accumulator 84927C91, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - accumulator, assy

1шт.

2

1341920C1

PROTECTOR

GUARD - valve, gas, accumulator assy

1шт.

3

276-14912

SELF-TAP SCREW,Hex Hd, 3/8" x 3/4"

SCREW - self-tapping hex, 3/8 NC x 3/4 inch, accumulator assy

2шт.

1978142C1

VALVE

ASSEMBLY - accumulator charging, Includes: Ref. 4 - 7

1шт.

4

NSS

NOT SOLD SEPARAT

VALVE - accumulator charging, assy

1шт.

5

1978143C1

PISTON

CORE - valve, accumulator assy

1шт.

6

1978144C1

CAP

- valve, accumulator assy

1шт.

7

1978158C1

O-RING

- valve sealing, accumulator assy

1шт.

8

1341919C1

SEAL KIT

KIT - valve seal, not shown, accumulator assy

1шт.

9

S301363

GLAND

- accumulator assy

1шт.

10

S301364

PISTON

- accumulator assy

1шт.

11

S301365

RING

- wear, Teflon, piston, accumulator assy

2шт.

12

414-812

BOLT,Hex, 1/2" - 20 x 3/4", Gr 5

- hex, 1/2 NF x 3/4 inch, mounting and system

3шт.

13

92-11050

LOCK WASHER,1/2"

WASHER, LOCK, , Mounting and system 1/2"

3шт.

14

495-81025

WASHER,13.49mm ID x 31.75mm OD x 4.93mm Thk

- flat, 17/32 x 1-1/4 x 5/32 inch, mounting and system

3шт.

15

1979278C2

SUPPORT

- accumulator, mounting and system

1шт.

16

155807C1

BOLT,Hex Serr, 5/16" - 18 x 1"

Mounting and system Hex Flg, 5/16"-18 x 1", Serr

2шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, mounting and system

2шт.

18

182088H1

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

CLAMP - hose, No. 80, Type F, mounting and system

1шт.

19

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

CONNECTOR, HYD., , Mounting and system, Includes Ref. 20 & 21 13/16"-16 ORFS x 3/4"-16 ORB

2шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.

21

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system -014, 90 Duro, .489" ID x .070" Thk

1шт.

22

201-349

90 ELBOW,90 Degree Elbow, 13/16" - 16 Female ORFS x 3/4" - 16 Male ORB

- 90 deg, 13/16-16 swiv face x 3/4-16 inch adj O-ring, mounting and system, Includes: Ref. 23

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.

24

183510C1

VALVE

- needle, mounting and system

1шт.

25

1989665C1

HOSE

- accumulator, mounting and system

1шт.

26

201-412

TEE,13/16" - 16 ORFS x 13/16" - 16 ORFS x 3/4" - 16 ORB

- 13/16-16 face branch x face x 3/4-16 inch adj O-ring, mounting and system, Includes: Ref. 27 & 28

1шт.

27

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

Mounting and system -014, 90 Duro, .489" ID x .070" Thk

2шт.

28

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Mounting and system

1шт.
