Запчасти Case IH 1682 (8-20) - HYDRAULIC RESERVOIR (07) - HYDRAULICS

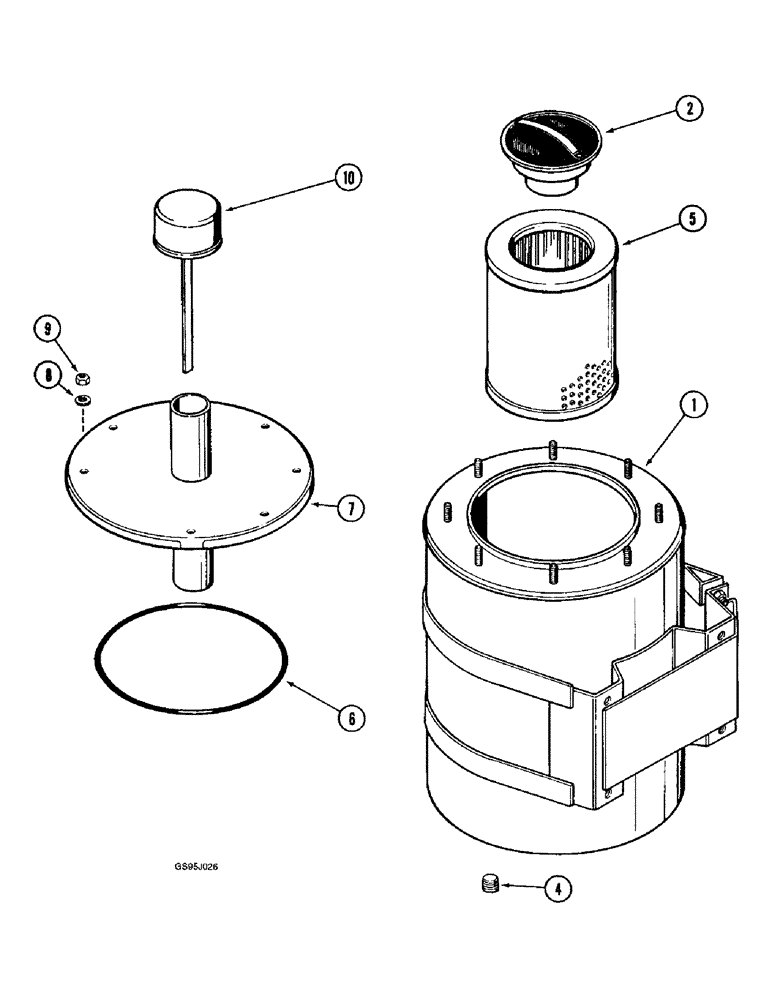

Схема запчастей Case IH 1682 - (8-20) - HYDRAULIC RESERVOIR (07) - HYDRAULICS
7
6
5
4
8
10
1
2
9

Артикул

Название

Примечание

Количество

156395C91

RESERVOIR

ASSEMBLY - hydraulic, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - reservoir (Order 156395C91)

1шт.

2

386121R92

VALVE

- relief

1шт.

4

217-434

PLUG,Hex Soc, 3/8" - 18 NPTF

- hex socket, 3/8 inch PT Replaces plug 444699)

1шт.

5

528493R3

HYDRAULIC OIL FILTER

ELEMENT - tank filter, reservoir

1шт.

6

238-5440

O-RING,0.275" Thk x 6.725" ID, -440, Cl 5, 75 Duro

- 1/8 ID x 1/16 inch wide (Replaces O-ring 22760R1)

1шт.

7

163646C91

COVER

- reservoir

1шт.

8

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

8шт.

9

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

8шт.

10

596357R1

CAP

DIPSTICK - reservoir (Replaces dipstick 567521R91)

1шт.

Выбрано товаров: 10
