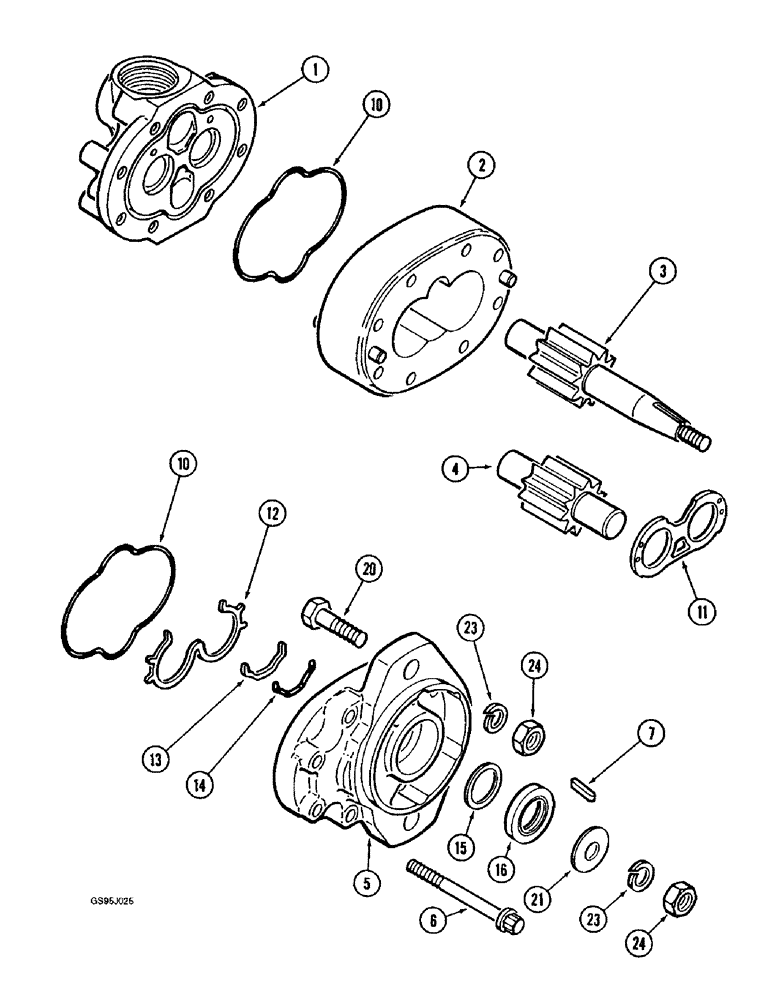

Запчасти Case IH 1682 (8-18) - HYDRAULIC PUMP (07) - HYDRAULICS

1272257C92

PUMP, HYDRAULIC

PUMP ASSEMBLY - auxiliary hydraulic, new (Replaces pump assembly 1272257C91), Includes: Ref. 1 -16

1шт.

87607373R

REMAN-HYD PUMP

1682, Reman for New P/N 1272257C92

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1949284C1

REMAN-HYD PUMP

PUMP ASSEMBLY - auxiliary hydraulic, remanufactured, Includes: Ref. 1 - 16

1шт.

87607373R

REMAN-HYD PUMP

1682, Reman for New P/N 1949284C1

1шт.

87607373C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1949285C1

PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - rear

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - pump

1шт.

3

NSS

NOT SOLD SEPARAT

GEAR - drive

1шт.

4

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

5

NSS

NOT SOLD SEPARAT

HOUSING - front

1шт.

6

NSS

NOT SOLD SEPARAT

BOLT - pump retaining

8шт.

7

ZA703292

BUCKET TOOTH KEY

KEY - shaft

1шт.

1272638C2

SEAL KIT

KIT - seal, pump, Includes: Ref. 10 - 16

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING - body

2шт.

11

NSS

NOT SOLD SEPARAT

PLATE - wear

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - backup

1шт.

13

NSS

NOT SOLD SEPARAT

SEAL - bearing

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING - molded

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

21

495-51053

WASHER,13.49mm ID x 25.4mm OD x 1.6mm Thk

- flat, 17/32 x 1 x 1/16 inch

1шт.

23

492-11038

LOCK WASHER,3/8"

3шт.

24

425-106

NUT,3/8"-16, Cl 5

3шт.
