Запчасти Case IH 1682 (8-14) - REEL DRIVE PUMP AND VALVE HYDRAULICS, COMBINE HYDRAULICS (07) - HYDRAULICS

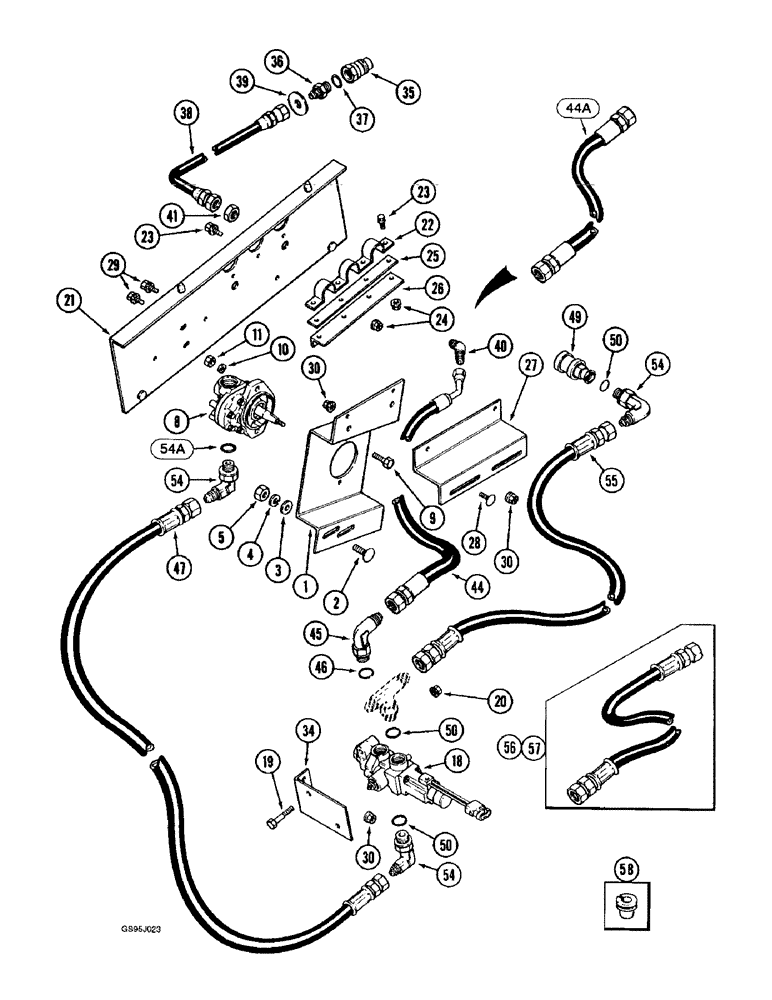

Схема запчастей Case IH 1682 - (8-14) - REEL DRIVE PUMP AND VALVE HYDRAULICS, COMBINE HYDRAULICS (07) - HYDRAULICS
27
37
9
23
50
18
29
19
21
30
30
36
47
3
5
1
2
20
30
39
49
28
46
8
11
44
4
41
34
57
40
26
50
45
54a
56
54
54
10
35
23
24
58
55
38
50
22
25
54
44a

Артикул

Название

Примечание

Количество

1

1330178C2

SUPPORT

- mounting, reel pump

1шт.

2

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch (Replaces bolt 485734R1)

3шт.

3

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

1шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

8

REF

INSTRUCTION

PUMP ASSEMBLY - drive, reel, parts list Figure 8-19

1шт.

9

414-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 5

- hex, 7/16 NF x 1-1/2 inch

2шт.

10

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

11

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

18

1272619C93

VALVE

ASSEMBLY - drive, reel, parts list Figure 8-22

1шт.

19

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

21

1979814C1

SUPPORT

BRACKET - coupling, feeder (Replaces bracket 1327939C2)

1шт.

22

1321990C1

CLAMP

- coupling

1шт.

23

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch (Replaces bolt 68530C1)

6шт.

24

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

6шт.

25

1327582C1

PLATE

SPACER - coupling

1шт.

26

1321989C2

SUPPORT

- coupling (Replaces support 1321989C1)

1шт.

27

1327585C1

SUPPORT

- coupling, feeder

1шт.

28

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

3шт.

30

231-5146

FLANGE NUT,3/8"-16

5шт.

34

1322417C2

SUPPORT

- valve, reel drive

1шт.

35

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

36

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring bosss, Incl. Ref 37 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

37

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

38

1327580C1

HOSE

- pressure, feeder to header, 41 inch (1041 mm) long

1шт.

39

1327632C1

WASHER

- white, flat

1шт.

40

1321284C1

FITTING

UNION - 45 degree bulkhead, used with hoses 1327580C1 and 1327609C1

1шт.

41

218-1255

BHD LOCK NUT,Blkhd, 3/4"-16

NUT, LOCK, , Used with hoses 1327580C1 and 1327609C1 (Replaces nut 9403294) Blkhd, 3/4"-16

1шт.

44

1327609C1

HOSE

- reel drive pressure, 20 inch, fitting to valve, no longer used, order hose 1254574C2

1шт.

44a

1254574C2

HYDRAULIC HOSE

HOSE - reel drive pressure, 60 inch (1525 mm) long (Replaces hose 1327609C1)

1шт.

45

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss (Replaces elbow 936450R91), Includes: Ref. 46

1шт.

46

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

47

1315460C1

HOSE,12.7mm ID x 900mm L, SAE 100R7

- pump pressure, 35 inch, reel drive

1шт.

49

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

54

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 54A

1шт.

54a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

55

1327579C1

HOSE

- return, 12 inch (54-1/2 inch feeder), Serial Range: coupling-valve

1шт.

56

1327785C1

HOSE ASSY.

HOSE - reel drive, 1676 mm long x 9/16 - 12 inch thread

1шт.

57

1327788C1

HOSE ASSY.

HOSE - reel or pick up drive, 1676 mm long x 3/4 - 16 inch thread

2шт.

58

198826C1

GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk

- black, 3/4 inch ID, used with hose 1254574C2, item 44A

1шт.

Выбрано товаров: 42
