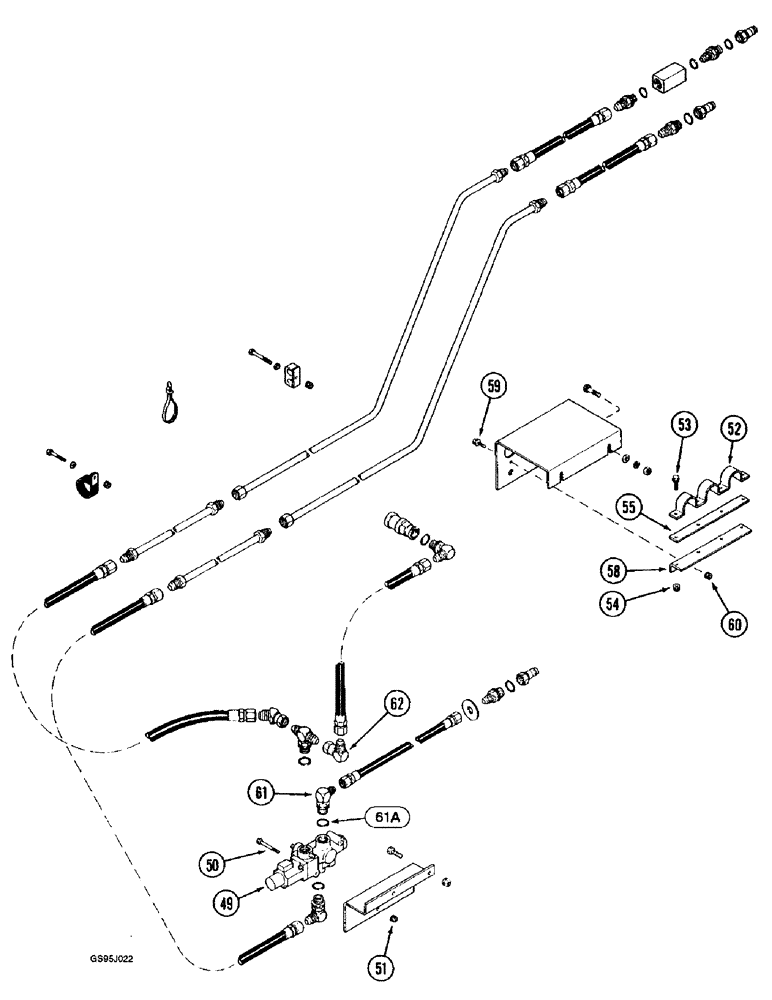

Запчасти Case IH 1682 (8-12) - REEL DRIVE HYDRAULICS, WITH TRACTOR HYDRAULICS (CONTD) (07) - HYDRAULICS

49

1272619C93

VALVE

ASSEMBLY - drive, reel, parts list Figure 8-22

1шт.

50

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

51

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

52

1321990C1

CLAMP

- coupling

1шт.

53

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch (Replaces bolt 68530C1)

4шт.

54

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

4шт.

55

1327582C1

PLATE

SPACER - coupling

1шт.

58

1321989C1

SUPPORT

- coupling

1шт.

59

409-7412

BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl

- hex serrated flange, 1/4 NC x 3/4 inch (Replaces bolt 68530C1)

2шт.

60

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

61

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring boss (Replaces elbow 936450R91), Includes: Ref. 61A

1шт.

61a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

62

218-5232

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, 37 Degree Fem Sw

1шт.
