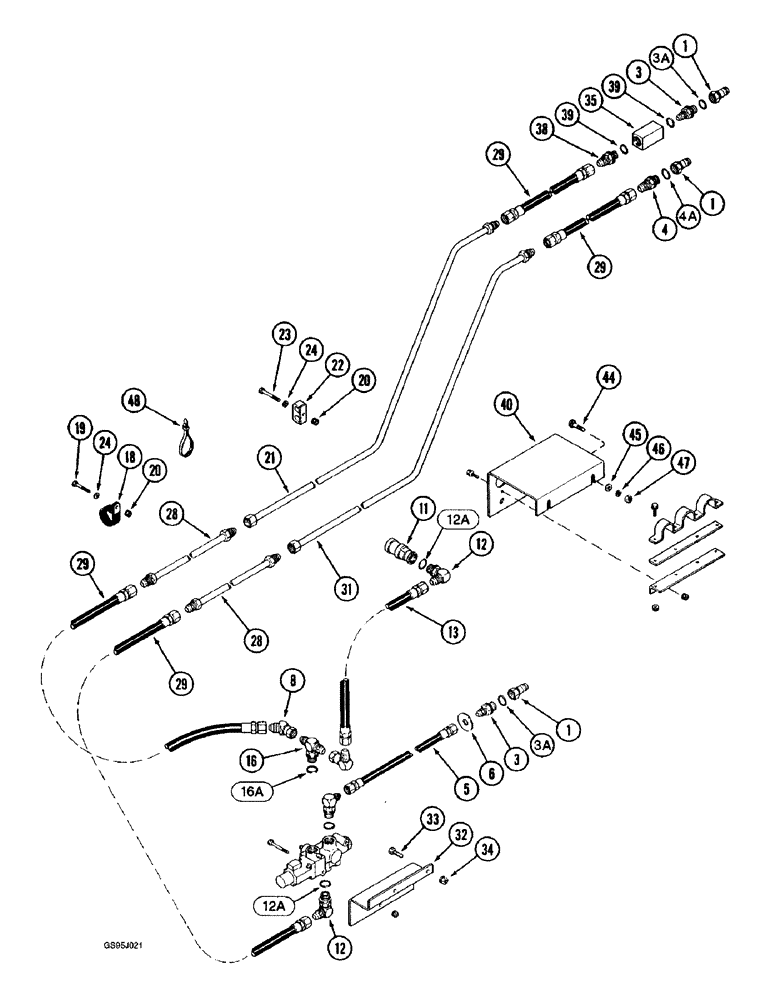

Запчасти Case IH 1682 (8-10) - REEL DRIVE HYDRAULICS, WITH TRACTOR HYDRAULICS (07) - HYDRAULICS

1

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

3шт.

3

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 3A 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

3a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

4

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER - straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 4A

1шт.

4a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

1327580C1

HOSE

- 41 inch (1041 mm) long, feeder and reel

1шт.

6

1327632C1

WASHER

- white, flat, hose

1шт.

8

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree, 7/8-14 inch flare x swivel

1шт.

11

1282338C91

COUPLING, QUICK, FEM

COUPLING - self-sealing female, 7/8-14 inch

1шт.

12

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 12A

2шт.

12a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

13

1327789C1

HOSE

- return, valve to coupling, 12 inch (305 mm) long

1шт.

16

218-5184

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch adj O-ring branch x flare x flare, Includes: Ref. 16A

1шт.

16a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

27843R1

CLAMP

- 1-3/4 inch, hose, double

1шт.

19

113-132

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

- hex, 1/4 NC x 1-3/4 inch (Replaces bolt 180042)

1шт.

20

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

21

1330581C1

HYD TUBE

TUBE - return, front

1шт.

22

1330242C1

CLAMP

- tube

4шт.

23

413-436

BOLT,Hex, 1/4" - 20 x 2-1/4", Gr 5

4шт.

24

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

6шт.

28

1330230C2

TUBE

- rear, reel

2шт.

29

1327823C1

HOSE

- hydraulic, valve to tongue, 66 inch (1676 mm) long

4шт.

31

1330580C1

HYD TUBE

TUBE - pressure, front

1шт.

32

1324918C2

SUPPORT

BRACKET - speed control valve

1шт.

33

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

BOLT - carriage, 3/8 NC x 1 inch (Replaces bolt 495967R1)

2шт.

34

231-5146

FLANGE NUT,3/8"-16

2шт.

35

1304235C1

VALVE

- check

1шт.

38

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 flare x 3/4-16 inch O-ring boss, Incl. Ref. 39

1шт.

39

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

40

1321988C2

SUPPORT

BRACKET - feeder coupling

1шт.

44

434-620

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, (Replaces bolt 550796R1) Short NK, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

46

492-11038

LOCK WASHER,3/8"

2шт.

47

425-106

NUT,3/8"-16, Cl 5

2шт.

48

306132C1

CABLE TIE,14.5" L

STRAP - tie, 14 inch

6шт.
