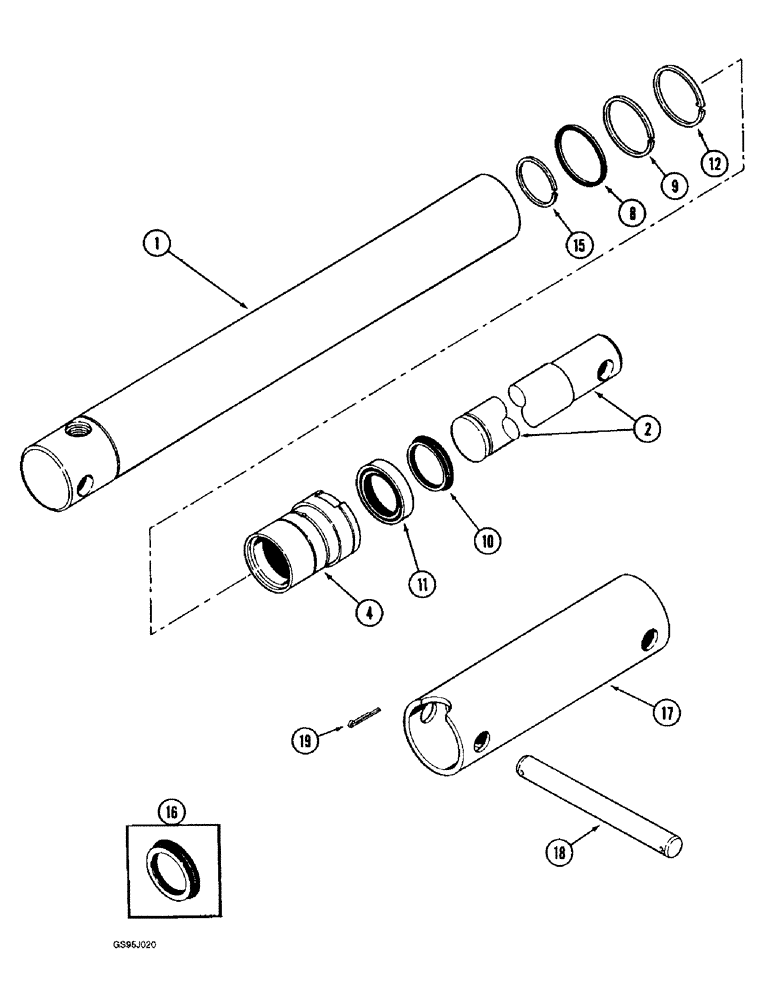

Запчасти Case IH 1682 (8-08) - HEADER LIFT CYLINDER (07) - HYDRAULICS

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - header lift, 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke, Includes: Ref. 1 - 16

1шт.

127779C94R

REMAN-HYD CYLINDER

1682 CASE IH PULL-TYPE AXIAL-FLOW COMBINE, Assembly, header lift, 2-5/8 (67) ID x 20-1/2 inch (521 mm) stroke

1шт.

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - cylinder

1шт.

2

127780C2

ROD

- piston, cylinder

1шт.

4

142568C2

HEAD

GLAND - cylinder, front

1шт.

224718C92

SEAL KIT

KIT - seal, cylinder, Includes: Ref. 8 - 16

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING - 2-1/4 x 2-11/16 inch

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER - backup, static

1шт.

10

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL - wiper

1шт.

12

NSS

NOT SOLD SEPARAT

RING - retainer

1шт.

15

NSS

NOT SOLD SEPARAT

STOP - rod, piston

1шт.

16

NSS

NOT SOLD SEPARAT

SEAL - rod

1шт.

17

1320845C1

TUBE,77.78 mm ID, 88.9 mm OD

- extension, with rock trap

1шт.

18

195822C1

PIN,25.4mm OD x 228.6mm L

- 1 x 9 inch, tube, three used with rock trap and two used without rock trap

1шт.

19

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), , six used with rock trap and four used without rock trap 1/4" x 2"

1шт.
