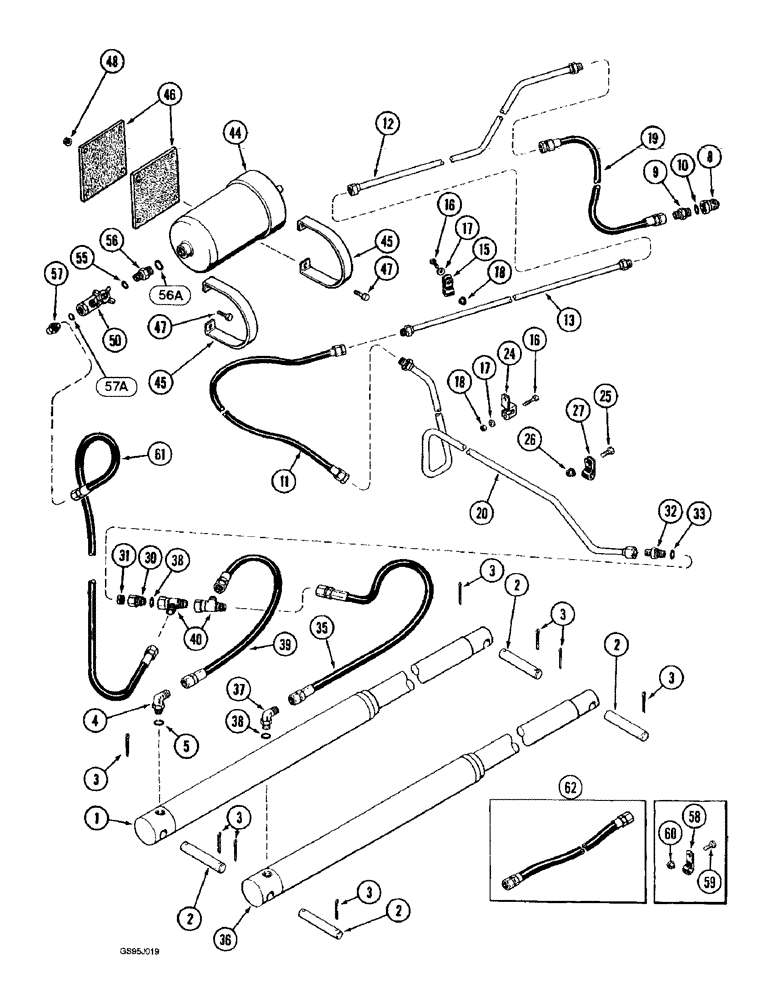

Запчасти Case IH 1682 (8-06) - HEADER LIFT HYDRAULICS (07) - HYDRAULICS

1

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - lift, header, parts list Figure 8-08

1шт.

1

127779C94R

REMAN-HYD CYLINDER

1682 CASE IH PULL-TYPE AXIAL-FLOW COMBINE, Assembly, lift, header auxiliary

1шт.

1

127779C94C

CORE-HYD CYLINDER

Return Number

1шт.

2

573762R1

PIN,25.4mm OD x 130.97mm L

- pivot, cylinder, 1 x 5-5/32 inch

2шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

4шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

8

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 41/64 ID x 3/32 inch wide

1шт.

11

1327773C1

HOSE ASSY.

HOSE - header (1346 mm)

1шт.

12

1330585C1

HYD TUBE

TUBE - header, front

1шт.

13

183537C2

HYD TUBE

TUBE - header, rear (Replaces tube 183537C1)

1шт.

15

183825C1

CLAMP

- tube

5шт.

16

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

5шт.

17

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

5шт.

18

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

5шт.

19

1330641C1

HOSE ASSY.

HOSE - header (635 mm)

1шт.

20

183536C1

TUBE

- header

1шт.

24

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P-type (Replaces clamp 299407C1) 1/2", Insul, 3/8" Bolt

1шт.

25

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

26

231-5146

FLANGE NUT,3/8"-16

1шт.

27

196447C1

CLAMP

- tube

2шт.

30

183535C1

UNION

- hydraulic, Serial Range: hose-tube

1шт.

31

183548C1

VENT

- orifice

1шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss (Replaces connector 9410203), Incl. Ref 33

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

1330641C1

HOSE ASSY.

HOSE - header (963 mm)

1шт.

36

127779C94

CYLINDER,57.07mm Rod, 520.7mm Stroke

ASSEMBLY - lift, header auxiliary, parts list Figure 8-08

1шт.

37

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 38

1шт.

38

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

39

1330641C1

HOSE ASSY.

HOSE - lift cylinder (963 mm)

1шт.

40

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- 3/4-16 inch flare branch x flare x adj straight thread

2шт.

44

84927C91

TANK

- accumulator, no longer available, order accumulator 128191A1 below

1шт.

44

128191A1

ACCUMULATOR,1.9L

ASSEMBLY - with threaded ends, parts list Figure 8-24

1шт.

45

172133C1

SUPPORT

- accumulator, used with accumulator tank 84927C91

2шт.

46

196821C1

STRIP

CUSHION - accumulator, used with accumulator 84927C91

2шт.

47

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch, used with support 172133C1

4шт.

48

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC, used with support 172133C1

4шт.

50

183510C1

VALVE

- needle

1шт.

55

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

56

218-5070

HYD CONNECTOR,3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 3/4-16 flare x 1-1/16-12 inch O-ring boss, Includes: Ref. 56A

1шт.

56a

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

57

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss, Includes: Ref. 57A

1шт.

57a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

58

515-23222

CLAMP,7/8", Insul, 3/8" Bolt

P-type, Closed 7/8", Insul, 3/8" Bolt

2шт.

59

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

2шт.

60

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

2шт.

61

850262C1

HOSE

- accumulator (83 inch)

1шт.

62

1327786C1

HOSE ASSY.

HOSE - header, long

1шт.
