(8-02) - UNLOADER SWING HYDRAULICS

Запчасти Case IH 1682 (8-02) - UNLOADER SWING HYDRAULICS (07) - HYDRAULICS

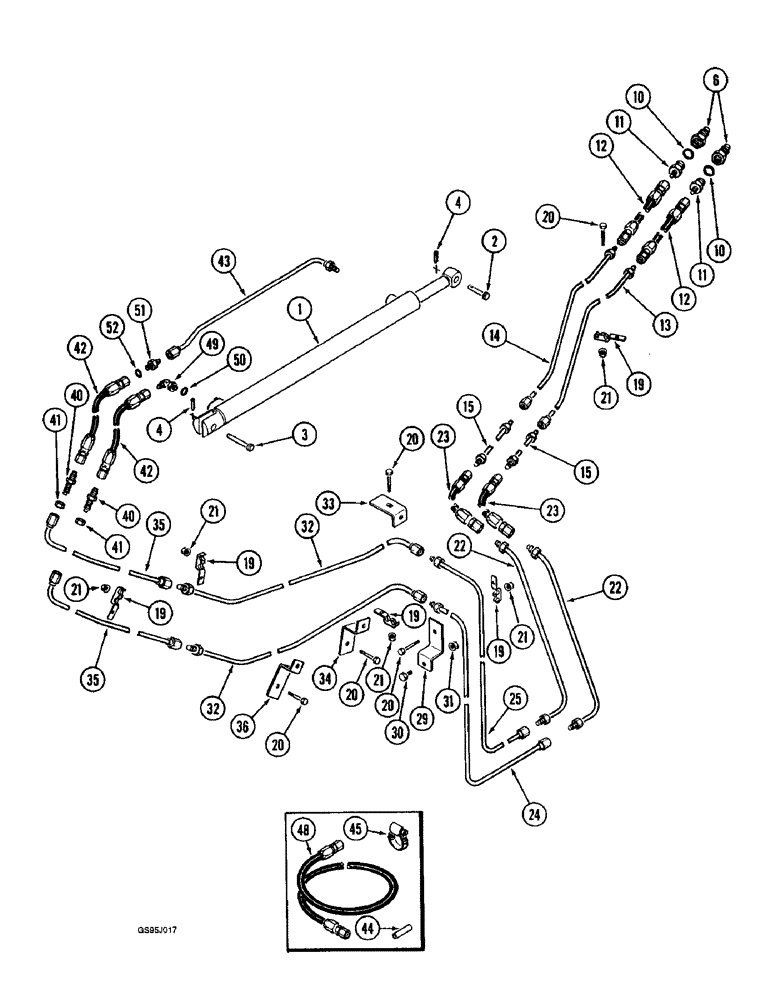

Схема запчастей Case IH 1682 - (8-02) - UNLOADER SWING HYDRAULICS (07) - HYDRAULICS
21
41
21
15
45
19
20
21
13
33
23
3
41
1
22
29
32
35
31
22
32
11
21
49
20
42
10
40
30
52
12
20
21
25
12
19
20
6
50
42
34
24
40
10
4
11
14
19
48
51
15
20
2
35
4
19
44
23
36
43
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

1282488C92

CYLINDER ASSY.,Double Acting, 25.4mm Rod, 508.2mm Stroke

CYLINDER ASSEMBLY - swing, parts list Figure 8-04

1шт.

1282488C92R

REMAN-HYD CYLINDER

1682

1шт.

1282488C92C

CORE-HYD CYLINDER

Return Number

1шт.

2

22754R1

CLEVIS PIN,5/8" x 1.844"

PIN, CLEVIS, 5/8" x 1.844"

1шт.

3

427-10225

CLEVIS PIN,5/8" x 1 1/4"

PIN - clevis, 5/8 x 2-1/4 inch (Replaces pin 28196R1)

1шт.

4

432-816

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

2шт.

6

1272399C2

QUICK MALE COUPLING

COUPLER - self sealing, male, 7/8 inch NF

2шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

11

391797R1

HYD CONNECTOR,7/16"-20, 37 Degree x 7/8"-14, O-Ring

CONNECTOR - 37 degree reducer, 7/8-14 x 7/16-20 inch thread

2шт.

12

183549C2

HOSE,6.35 mm ID x 1295.00, SAE 100R1 CLASS 7

- unloader

2шт.

13

1330583C1

UNLOADING TUBE

TUBE - unloader (Replaces tube 183533C1)

1шт.

14

1330582C1

UNLOADING TUBE

TUBE - unloader (Replaces tube 183534C1)

1шт.

15

183532C1

UNLOADING TUBE

TUBE - unloader

2шт.

19

183824C1

CLAMP

- tube

8шт.

20

413-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

8шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

22

183530C1

UNLOADING TUBE

TUBE - unloader

2шт.

23

183531C1

HOSE,6.35 mm ID x 686.00, SAE 100R1 CLASS 7

- valve sense, unloader, 27 inch (686 mm)

2шт.

24

183528C1

TUBE

- unloader

1шт.

25

183529C1

UNLOADING TUBE

TUBE - unloader

1шт.

29

196517C1

SUPPORT TUBE

SUPPORT - tube

2шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

2шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

183527C1

TUBE

- swing, unloader

2шт.

33

187833C1

SUPPORT

- suction return tubes

1шт.

34

196517C1

SUPPORT TUBE

SUPPORT - tube

1шт.

35

183526C1

UNLOADING TUBE

TUBE - rear, swing

2шт.

36

196517C1

SUPPORT TUBE

SUPPORT - tube

1шт.

40

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

ADAPTER - straight, 7/16-20 inch flare x bulkhead flare (Replaces union 9403252)

2шт.

41

9403291

BHD LOCK NUT,Blkhd, 7/16"-20

NUT - bulkhead hex, 7/16 inch NF

2шт.

42

66880C1

HOSE,6.35mm ID x 508mm L, SAE 100R1

2шт.

43

1317623C1

HYD TUBE,0.25" OD, 480, 45 mm Length

TUBE - unloader swing cylinder

1шт.

44

163489C1

STRIP

INSULATOR - rubber, 1/4 ID x 1-13/64 inch long

1шт.

45

214-1432

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm

CLAMP, HOSE, , Adjustable (Replaces clamp 995221R1) #32, 1.56/2.50 Type F Worm

1шт.

48

1327784C1

HOSE ASSY.

HOSE - swing, long

2шт.

49

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree, 7/16-20 inch flare x adj O-ring boss (Replaces elbow 9410974), Includes: Ref. 50

1шт.

50

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

51

92708C1

FITTING

- orifice

1шт.

52

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.
