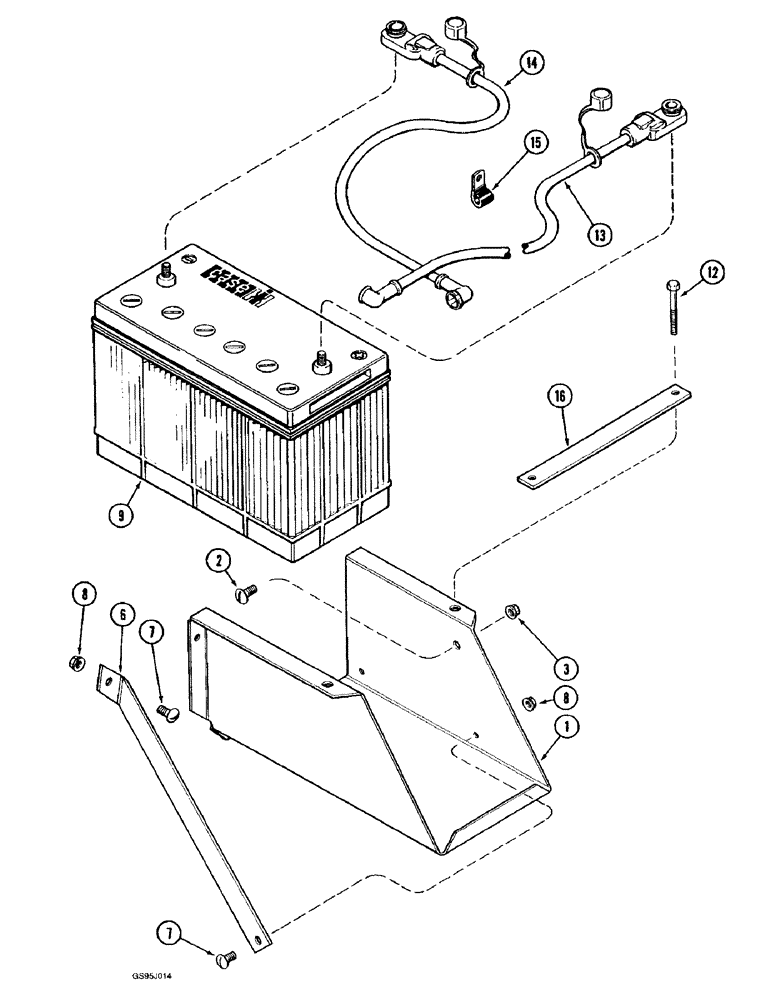

Запчасти Case IH 1682 (4-18) - BATTERY AND TRAY (06) - ELECTRICAL

1

1330173C2

TRAY ASSY.

TRAY - mounting, battery

1шт.

2

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

3

231-5146

FLANGE NUT,3/8"-16

1шт.

6

1330175C1

STRAP

- support, tray

1шт.

7

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

8

231-5146

FLANGE NUT,3/8"-16

2шт.

9

BMF31GS

DRY BATTERY

BATTERY - dry charged, 12 volt, maintenance free

1шт.

12

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

13

91930C1

CABLE

- positive

1шт.

14

91931C1

CABLE

- negative

1шт.

15

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, cushioned

2шт.

16

1330176C1

BAR

- hold down, battery

1шт.
