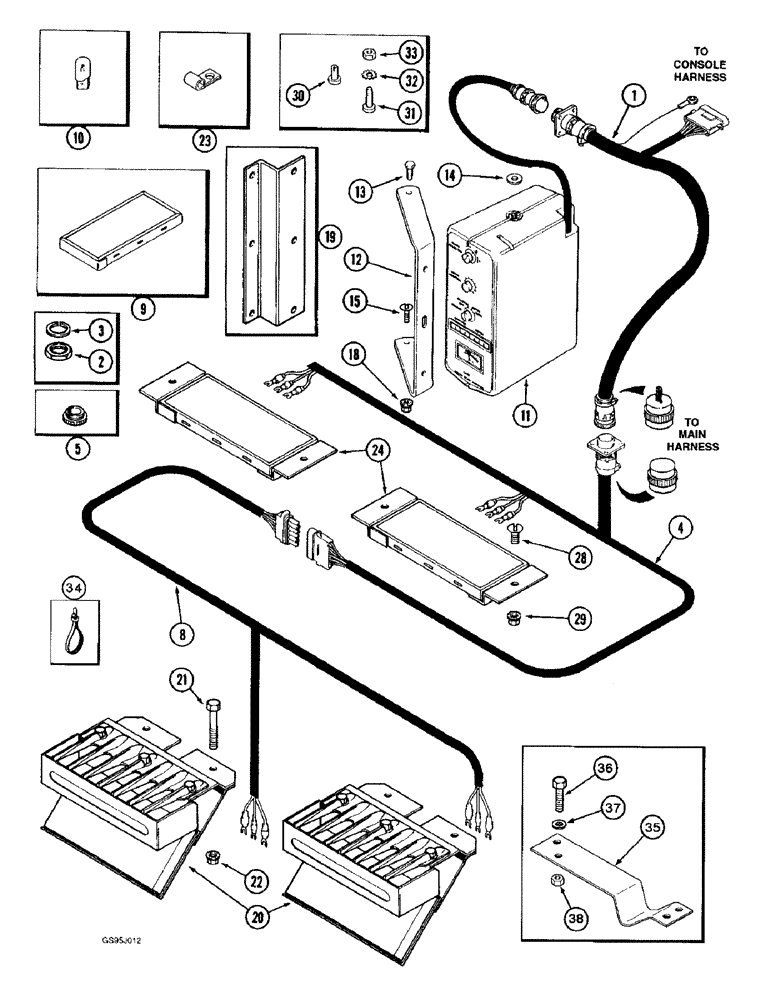

Запчасти Case IH 1682 (4-14) - GRAIN SCAN MONITOR (06) - ELECTRICAL

1

91755C3

HARNESS

- monitor (Replaces harness 91755C2)

1шт.

Ref 1 - 91755C3 The cap to main harness is part number 225050C1.

1шт.

2

490692C1

LOCK NUT,#18 Shell

- hex

2шт.

3

490691C1

LOCK WASHER,#18 Shell

- lock, hex

2шт.

4

91756C3

HARNESS

- sensor, main (Replaces harness 91756C2)

1шт.

REF 4 91756C3 The cap is part number 225051c1.

1шт.

5

225051C1

CAP

CONNECTOR - cap

1шт.

8

245931C1

HARNESS

- sensor, chaffer (Replaces harness 92105C1)

1шт.

9

245884C1

TRANSMITTER

BLOCK - grain sensor

1шт.

10

A48888

BULB

- lamp, 14 volt, trade No. 73

1шт.

11

1935074C2

REMAN-ELECT MONITOR

MONITOR - grain scan, remanufactured, North America only

1шт.

1935073C2

CORE-MONITOR

RETURN NUMBER - use this part number to return monitor for credit

1шт.

11

245360C3

CASE

MONITOR - grain scan, new

1шт.

12

1280160C2

SUPPORT

BRACKET - monitor mounting

1шт.

13

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

(Replaces bolt 25222R1) Hex, 1/4"-20 x 3/4", G8, Full Thd

2шт.

14

179454C1

RUBBER WASHER

- flat, rubber, special

2шт.

15

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

19

1327983C1

SUPPORT

- monitor

1шт.

20

245361C2

TRANSMITTER

BLOCK - chaffer sensor

2шт.

21

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

4шт.

22

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

23

515-2363

CLAMP,M6.3, Insul, 3/8" Bolt

- closed, harness (Replaces clamp 299399C1)

2шт.

24

245362C1

TRANSMITTER

BLOCK - rotor sensor

2шт.

28

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

4шт.

29

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

30

27048R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - self-tapping, No. 10-16 x 3/8 inch

4шт.

31

440-10610

SCREW,Phillips Drive, Pan HD, #6 - 32 x 5/8"

- machine, pan Phillips, No. 6 NC x 5/8 inch

4шт.

32

493-11014

LOCK WASHER,Ext-Int Tooth, #6

WASHER - internal-external tooth lock, 1/8 inch (Replaces washer 178349)

4шт.

33

225-14106

NUT,#6-32

(Replaces nut 134530) #6-32

4шт.

34

702093C1

CABLE TIE

STRAP - tie

1шт.

35

90905C2

BRACKET, SUPPORTING

BRACKET - monitor mounting

1шт.

36

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 x 1 inch

2шт.

37

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

38

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.
