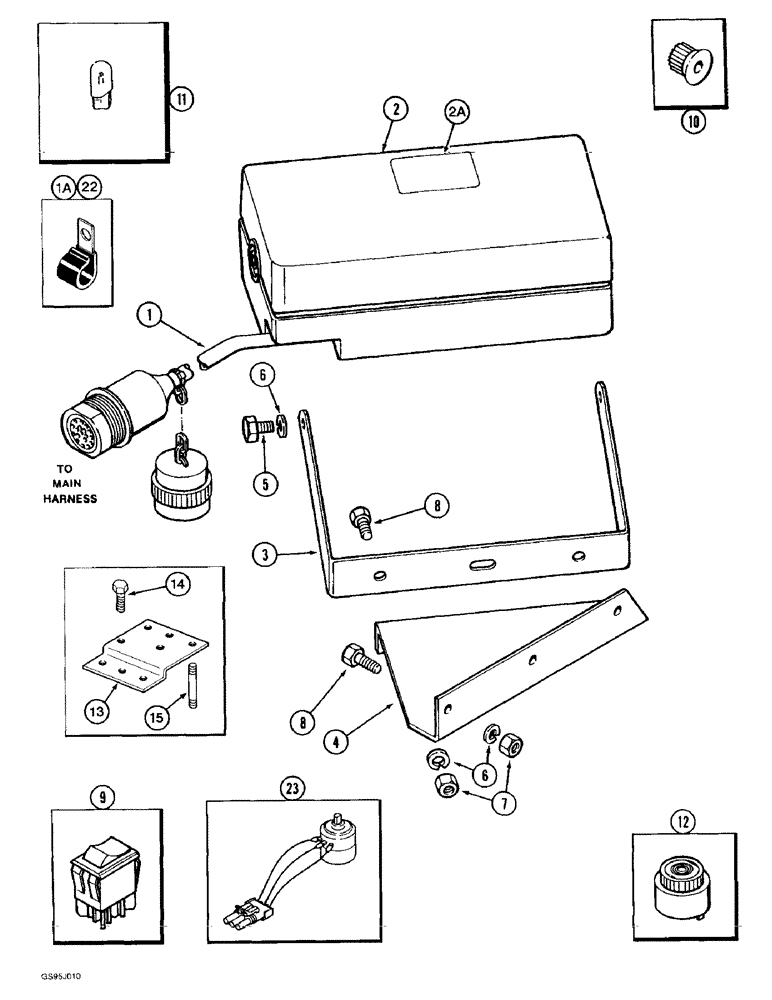

Запчасти Case IH 1682 (4-10) - CONTROLLER HARNESS (06) - ELECTRICAL

1

91747C3

HARNESS - controller (Replaces harness 91747C2)

1шт.

Art for ref 1 has additional wiring that is not shown.There is a 6 prong plug that goes to the grain scan monitor harness. There are 3, 2 prong plugs for the fuse holders, there is 1, 3 prong plug that goes to the load pump sensor, and 4 loose wires, 2 go to the tractor mag switch and 2 that go to ground.

1шт.

1a

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P-type, Use with harness 91747C3 5/8", Insul, 3/8" Bolt

1шт.

2

1935108C2

CONTROL

LER ASSEMBLY - combine, remanufactured

1шт.

1935107C1

CORE-MONITOR

RETURN NUMBER - use this part number to return controller core for credit when using a remanufactured assembly

1шт.

2

91744C3

CONTROLLER ASSEMBLY - combine, new (Replaces controller assembly 91744C91)

1шт.

2a

1964630C1

PRODUCT GRAPHIC

DECAL - Warning, disconnect combine wiring, See Figure 9-185, item 20

1шт.

3

1280160C2

SUPPORT

BRACKET - monitor mounting, controller

1шт.

4

1327984C1

SUPPORT

- controller

1шт.

5

326-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 8

(Replaces bolt 25752R1) Hex, 1/4"-20 x 1/2", G8, Full Thd

2шт.

6

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

7

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

6шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (Replaces bolt 180077)

6шт.

9

91746C1

SWITCH

- reel speed

1шт.

10

1345235C1

BUTTON

KNOB - control, with pointer (Replaces knob 1301036C1)

1шт.

11

1261437C1

LAMP

BULB - lamp, type C-2F, trade No. 37

1шт.

12

1546441C1

BUZZER

ALARM - audible (Replaces alarm 245854C1)

1шт.

13

1330293C1

SUPPORT

- controller, use with 7100 series tractors

1шт.

14

281-14710

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 5/8"

SCREW - self-tapping, hex washer head, 1/4 NC x 5/8 inch

3шт.

15

1330294C1

TIE-ROD,5/16" - 18 x 140mm

SUPPORT - controller rod

2шт.

17

245835C1

SUPPRESSOR

RESISTOR - central load pump

1шт.

See INF-6389 instruction sheet located in the 1682 hard cat. or in the apperture card file.

1шт.

18

NLS

NO LONGER SERVICED

SCREW - machine, special, No. 10 NC

4шт.

19

225-14110

NUT,#10-24

4шт.

21

1987436C1

HARNESS

- reel to ground speed ratio, not shown

1шт.

22

417334C1

CLIP

CLAMP - P-type, 11/16 inch ID, use with controller assembly 91744C3

1шт.

23

1983632C1

POTENTIOMETER

Single, 2K, Reel to Ground Speed Ratio, used with Switch 91746C1, Item 9

1шт.

A149804

FUSE

30 amp

1шт.

A149799

FUSE

7.5 amp

1шт.

225156C1

ELEC CONNECTOR

HOLDER fuse

1шт.

245428C1

CONNECTOR,ELECTRIC

1шт.

245041C1

CAP

dust, for harness plug

1шт.

20

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16") Ext-Int Tooth, #10

4шт.
