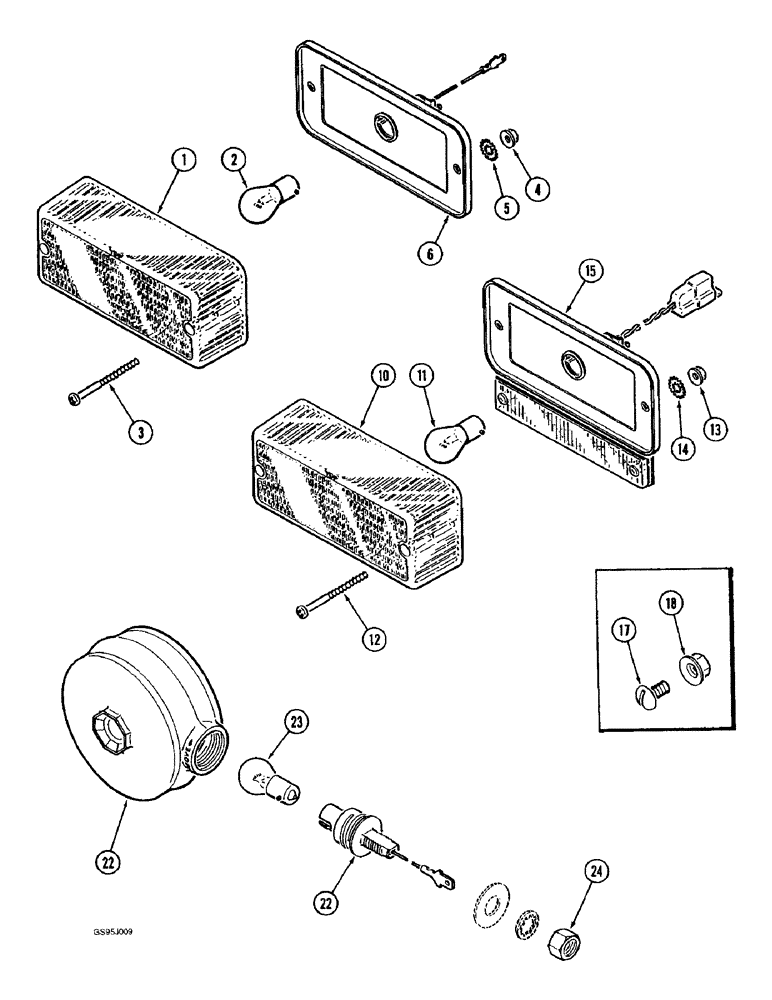

Запчасти Case IH 1682 (4-08) - REAR WARNING LAMP, TAIL LAMP, FRONT WARNING LAMP (06) - ELECTRICAL

130882C91

LAMP

LAMP ASSEMBLY - warning, rear, Includes: Ref. 1 - 6

2шт.

1

130883C1

LENS

- amber, lamp

1шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

3

26618R1

SCREW

- pan head machine, No. 10-24 NC x 1-1/2 inch

4шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

216044C92

LAMP

ASSEMBLY - stop, tail, Includes: Ref. 10 - 15

2шт.

216044C92 IS A 2 WIRE TAIL LIGHT ASSY.FOR A 3 WIRE TAIL LIGHT ASSY USE 92260C1

1шт.

10

216045C1

LENS

- red, lamp, tail

1шт.

11

T34857

BULB,C6, #1157, 12.8V

- lamp, 12 volt, No. 1157 (Replaces bulb 9417867), tail

1шт.

12

26618R1

SCREW

- pan head machine, No.10-24 NC x 1-1/2 inch, tail lamp

4шт.

13

231-51409

SERRATED NUT,Flg, USR, #10-24

Tail lamp Flg, USR, #10-24

4шт.

15

NSS

NOT SOLD SEPARAT

BODY - lamp, tail

1шт.

17

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch, tail lamp

1шт.

18

231-5146

FLANGE NUT,3/8"-16

Tail lamp Flg, USR, 3/8"-16

2шт.

22

196978C91

LIGHT

LAMP ASSEMBLY - warning, front, Includes: Ref. 23 & 24

2шт.

23

A41264

BULB,#1156, 12V

Lamp, Front warning #1156, 12V

1шт.

24

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF, front warning lamp

1шт.

5

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16"), Use for ground wire (Replaces washer 178378) Ext-Int Tooth, #10

2шт.

14

493-81000

LOCK WASHER,Ext-Int Tooth, #10

WASHER, LOCK, (3/16"), Use for ground wire (Replaces washer 178378), tail lamp Ext-Int Tooth, #10

2шт.
