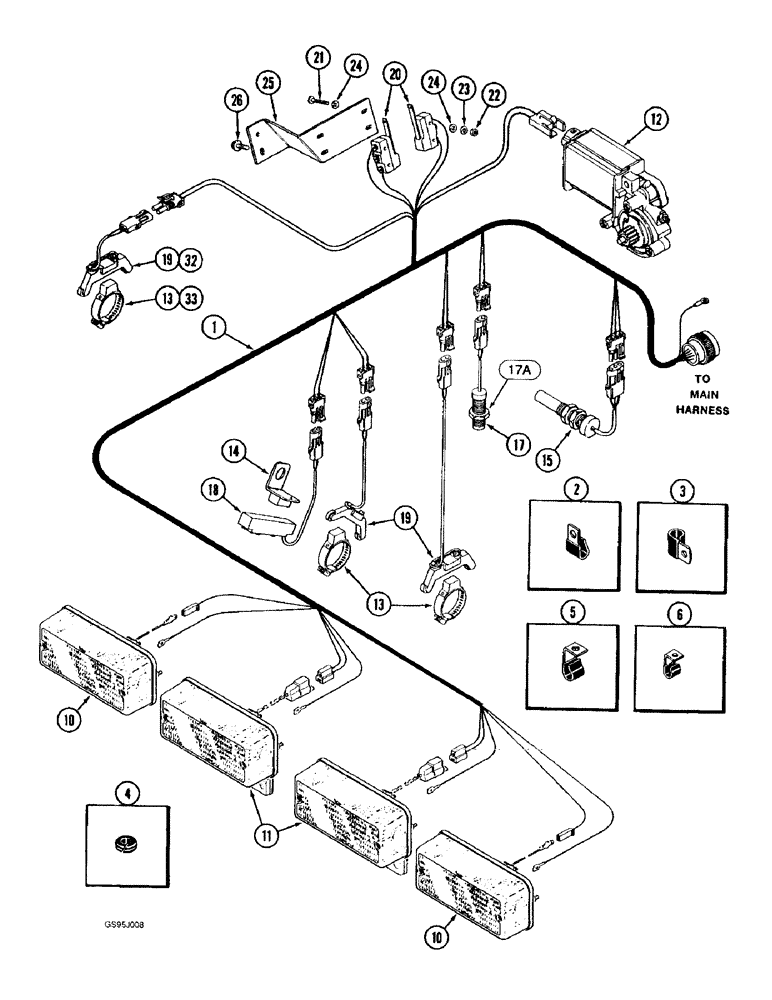

Запчасти Case IH 1682 (4-06) - LEFT HAND SIDE HARNESS (06) - ELECTRICAL

1

91751C1

HARNESS

- side, left-hand

1шт.

2

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-type, harness

3шт.

3

401275R1

CLIP - harness

7шт.

4

120408

GROMMET,1/2" ID x 1 1/16" x .188", Diag Cut

- rubber

1шт.

5

370383R1

CLIP

CLAMP - harness

7шт.

6

91658C1

CLIP

- harness

9шт.

10

130882C91

LAMP

LAMP ASSEMBLY - flasher, rear left-hand and right-hand, parts list Figure 4-9

2шт.

11

216044C92

LAMP

ASSEMBLY - tail , parts list Figure 4-08

2шт.

12

126573C1

MOTOR, ELECTRIC

MOTOR - electric, variable speed, rotor

1шт.

13

178800C1

CLAMP

SENSOR - magnetic, clean grain, tailings and beater

3шт.

14

187996C1

MAGNET

SENSOR - magnetic, shaker shoe

1шт.

15

92324C1

TRANSMITTER

SENSOR - ground speed

1шт.

17

92123C1

CONVERTER

PICKUP ASSEMBLY - converter, fan, rotor and feeder, Includes: Ref. 17A

1шт.

17a

84116C1

NUT

- hex, self-locking, 3/4 inch NF

1шт.

18

92124C1

SWITCH

- control, shoe

1шт.

19

92126C1

SWITCH

- control, clean grain, tailings and beater

3шт.

20

936694R91

SWITCH

- limit, micro

2шт.

21

470-10620

SCREW,Pan HD, #6 - 32 x 1-1/4"

- machine, pan head slotted, No. 6 NC x 1-1/4 inch (Replaces screw 436670)

4шт.

22

225-14106

NUT,#6-32

(Replaces nut 134530) #6-32

4шт.

23

138526

LOCK WASHER

- internal tooth lock, special, No. 6

4шт.

24

95-81108

WASHER,#6

- flat, 5/32 x 3/8 x 3/64 inch (Replaces washer 103337)

8шт.

25

1307304C1

SUPPORT

- limit switch

1шт.

26

161108C1

BOLT,Hex Serr, 1/4" - 20 x 1/2"

- hex serrated flange, 1/4 NC x 1/2 inch

2шт.

32

92125C1

TRANSMITTER

- control, straw chopper

1шт.

33

178799C1

CLAMP,44.45mm - 63.5mm

SENSOR - magnetic, straw chopper

1шт.
