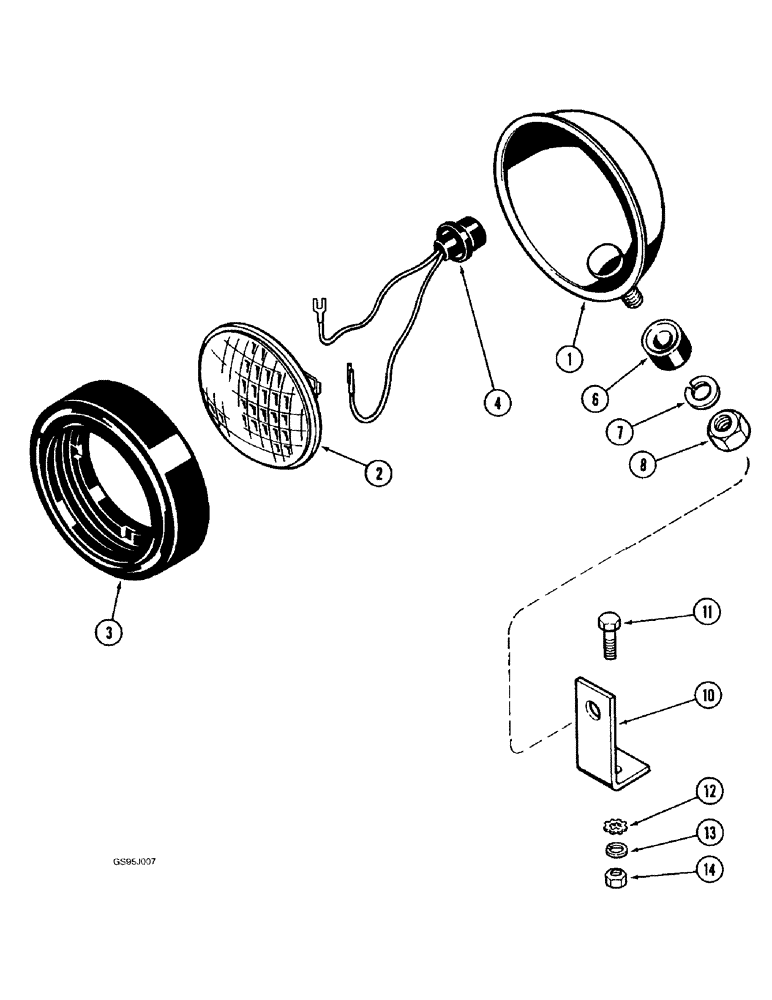

Запчасти Case IH 1682 (4-04) - GRAIN TANK AND UNLOADER LAMP (06) - ELECTRICAL

245954C91

LAMP

ASSEMBLY - unloader and grain tank, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - lamp

1шт.

2

A47179

BULB

LAMP - No. 4406 (Replaces lamp 28257R1)

1шт.

3

A25213

RETAINER

- lamp, use with Hobbs lamp (Replaces retainer 676078R1)

1шт.

3

1252609C1

RETAINER

- shockproof, lamp, use with Midwest lamp

1шт.

4

530029R91

CONNECTOR, ELEC

CONNECTOR - lamp

1шт.

6

1267358C2

SEAT

- lamp mounting

2шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

8

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32") 5/16"

2шт.

10

1317942C1

BRACKET

- grain tank lamp

1шт.

11

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

12

493-11033

LOCK WASHER,Ext-Int Tooth, 5/16"

WASHER, LOCK, Ext-Int Tooth, 5/16"

1шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.
