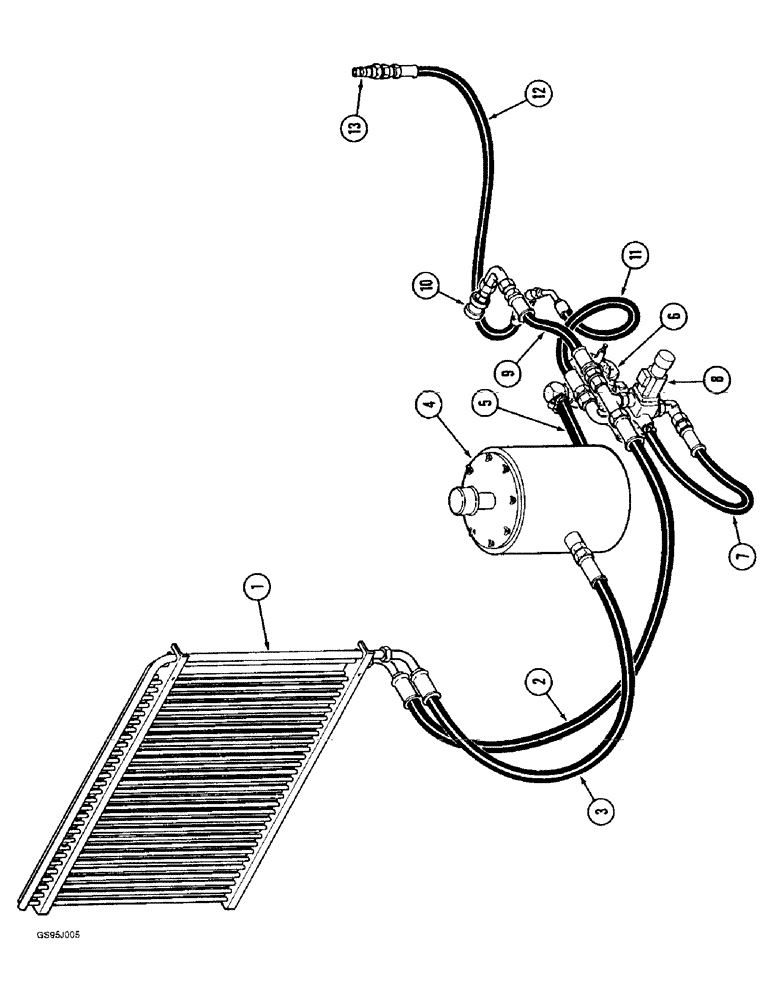

Запчасти Case IH 1682 (1-16) - PICTORIAL INDEX, REEL DRIVE HYDRAULICS, WITH COMBINE HYDRAULICS (00) - PICTORIAL INDEX

1

Hydraulic Oil Cooler, Page 8-17

1шт.

2

Valve To Cooler Hydraulic Return Hose Assembly, Page 8-17

1шт.

3

Cooler To Reservoir Hydraulic Return Hose Assembly, Page 8-17

1шт.

4

Hydraulic Reservoir Assembly, Page 8-21

1шт.

5

Reel Pump Suction Hose, Page 8-17

1шт.

6

Reel Hydraulic Pump Assembly, Page 8-19

1шт.

7

Reel Drive Hydraulic Pressure Hose Assembly, Page 8-17

1шт.

8

Reel Drive Hydraulic Valve Assembly, Page 8-23

1шт.

9

Coupler To Valve Return Hydraulic Hose Assembly, Page 8-15

1шт.

10

Hydraulic Female Coupling, Page 8-15

1шт.

11

Valve Hydraulic Pressure Hose Assembly, Page 8-15

1шт.

12

Hydraulic Pressure Hose Assembly, Page 8-15

1шт.

13

Hydraulic Male Coupler, Page 8-15

1шт.
