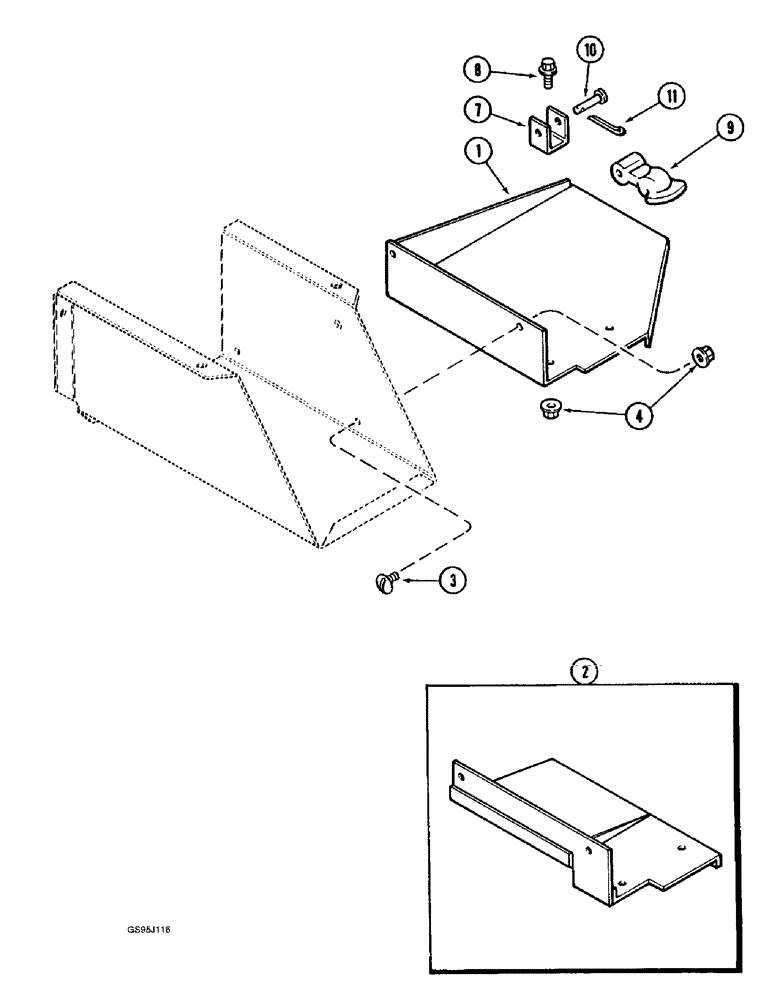

Запчасти Case IH 1682 (9-178) - DRIVE SHIELD (09) - CHASSIS ATTACHMENTS

1

1330571C1

SHIELD

- top, drive, with rock trap

1шт.

2

1330574C1

SHIELD

- top, drive, without rock trap

1шт.

3

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

2шт.

4

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

7

188103C1

BRACKET

- anchor, hook

1шт.

8

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

9

494307C1

LATCH

HOOK - hold down, latch

1шт.

10

439-1424

HEADED PIN,6.35mm OD x 38.1mm L

PIN, HEADED, 1/4" x 1 1/2", G2

1шт.

11

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.
