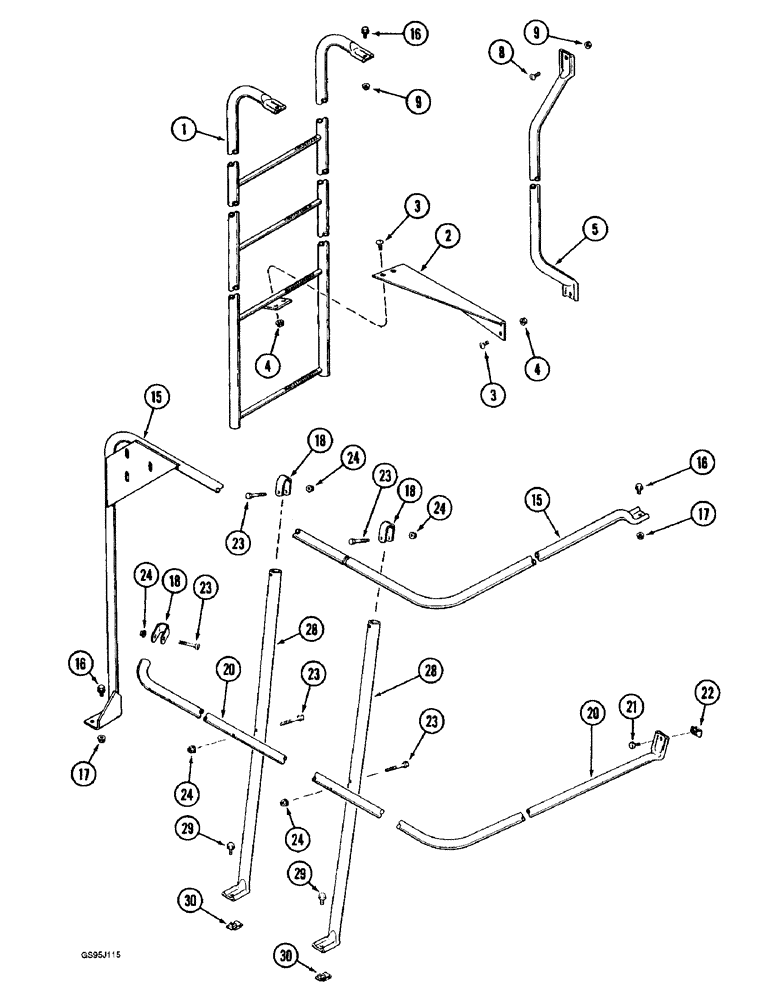

Запчасти Case IH 1682 (9-176) - LADDER AND HANDRAILS (09) - CHASSIS ATTACHMENTS

1

189605C1

LADDER

- service

1шт.

2

189617C1

SUPPORT

- lower, ladder

1шт.

3

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

5

189600C1

HANDLE

- rear, cover

1шт.

8

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

15

185616C3

RAIL

- hand, upper (Replaces rail 185616C1)

1шт.

16

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

6шт.

17

488837C1

SPRING NUT

- speed, 5/16 inch NC

1шт.

18

189601C1

YOKE

CLIP - yoke, rail

3шт.

20

189603C1

ROD

- center, hand rail

1шт.

21

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

22

670472R1

SPRING NUT,J, Ret, 5/16"-18

- retainer, J-type, 5/16 inch

1шт.

23

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

1шт.

23

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

28

189604C1

ROD

POST - upright, rail

2шт.

29

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

2шт.

30

670472R1

SPRING NUT,J, Ret, 5/16"-18

- retainer, J-type, 5/16 inch

2шт.
