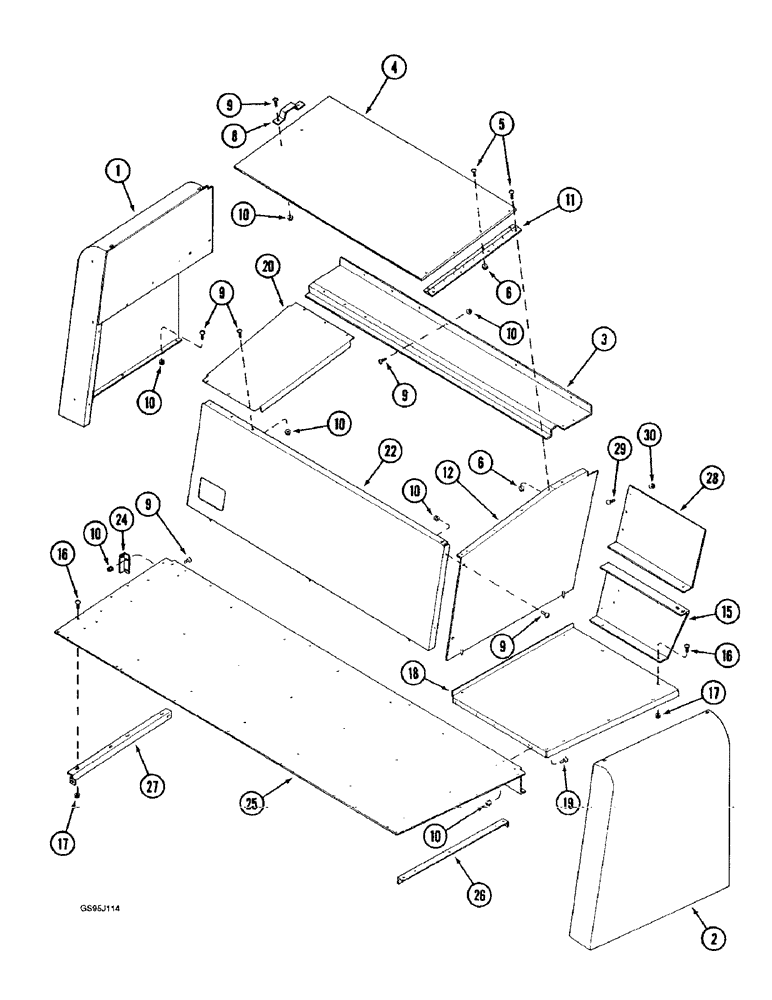

Запчасти Case IH 1682 (9-174) - SERVICE DECK (09) - CHASSIS ATTACHMENTS

1

189560C4

SUPPORT

- cover, side drive left-hand, with decal (Replaces support 189560C3)

1шт.

2

189561C4

SUPPORT

- cover, side drive right-hand, with decal (Replaces support 189561C3)

1шт.

3

1319644C91

SUPPORT ASSY.

SUPPORT - cover, grain tank drive, with decal

1шт.

4

184633C1

DOOR

- cover, drive

1шт.

5

937875R1

SCREW,Serr, 1/4" - 20

- slotted truss head, 1/4 NC x 3/4 inch

8шт.

6

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

8

160638C1

HANDLE

- door

1шт.

9

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

10

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

11

189571C1

HINGE

- door

1шт.

12

189569C1

SHEET

COVER - support, right-hand drive

1шт.

15

187499C2

SHEET

FILLER - support, deck

1шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

17

231-5146

FLANGE NUT,3/8"-16

1шт.

18

189587C1

SHEET

SUPPORT - catwalk, grain tank

1шт.

19

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

20

185664C1

COVER

- drive, left-hand

1шт.

22

189567C2

COVER

- lower, drive rear

1шт.

24

1305580C1

ANGLE

- front, deck left-hand

1шт.

25

189583C1

SHEET

COVER - deck, drive

1шт.

26

189584C1

ANGLE

- cover, drive deck

7шт.

27

184772C2

ANGLE

SUPPORT - stiffener, left-hand deck

1шт.

28

1313969C1

SHIELD

SUPPORT - shield

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

30

231-5146

FLANGE NUT,3/8"-16

4шт.
