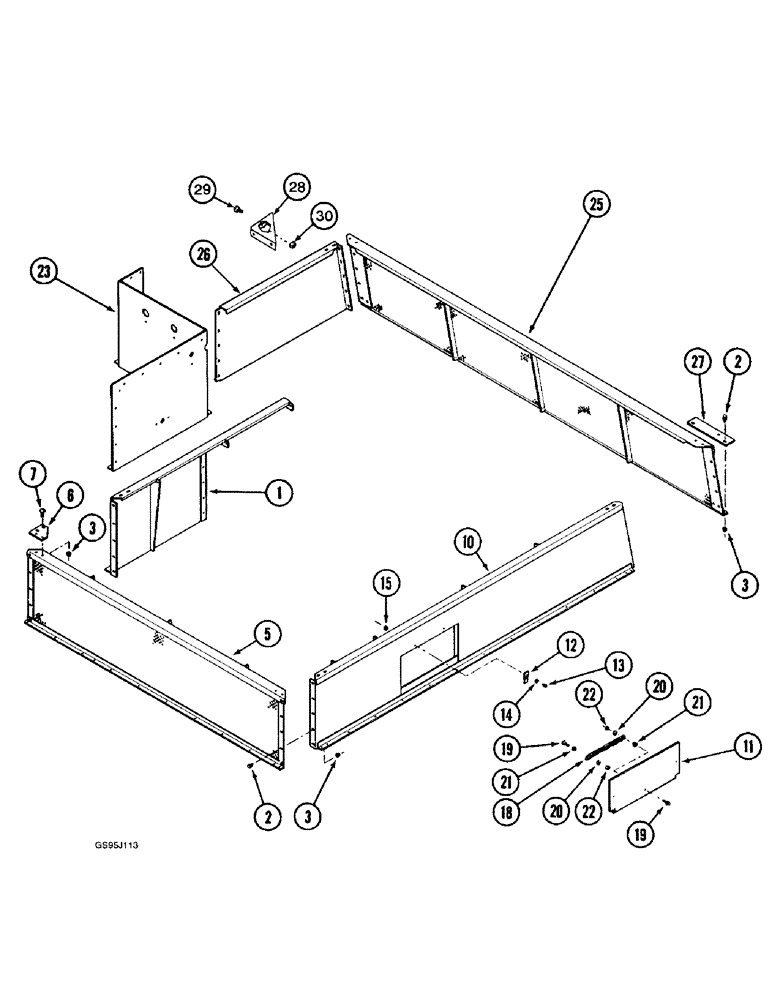

Запчасти Case IH 1682 (9-172) - GRAIN TANK EXTENSIONS (09) - CHASSIS ATTACHMENTS

1

1321771C1

EXTENSION

- left-hand rear

1шт.

2

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

1шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

5

1327593C3

SHIELD

EXTENSION - rear (Replaces extension 1327593C1)

1шт.

6

1321757C1

PLATE

BAR - extension, support

4шт.

7

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

10

1321978C1

EXTENSION

- right-hand, tank

1шт.

11

1327644C2

PLATE

DOOR - extension, access

1шт.

12

167800C1

CLIP

- door retaining clip

2шт.

13

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

- machine, pan head slotted, No. 10 NC x 3/4 inch

2шт.

14

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

15

225-14110

NUT,#10-24

2шт.

18

167570C1

CHAIN,203.2mm L

- latch, safety

1шт.

19

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

2шт.

20

120392

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 3/64 inch

2шт.

21

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

22

232-4114

LOCK NUT,1/4"-20, GC

NUT, LOCK, 1/4"-20, GC

2шт.

23

1317635C2

SHEET

SUPPORT - extension, left-hand center (Replaces support 1317635C1)

1шт.

25

1321976C1

EXTENSION

- front

1шт.

26

1321980C1

EXTENSION

- front, left-hand

1шт.

27

1330132C1

PLATE

- mounting, lamp

1шт.

28

1327510C1

SUPPORT

- center extension gusset

1шт.

29

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

4шт.

30

231-5146

FLANGE NUT,3/8"-16

4шт.
