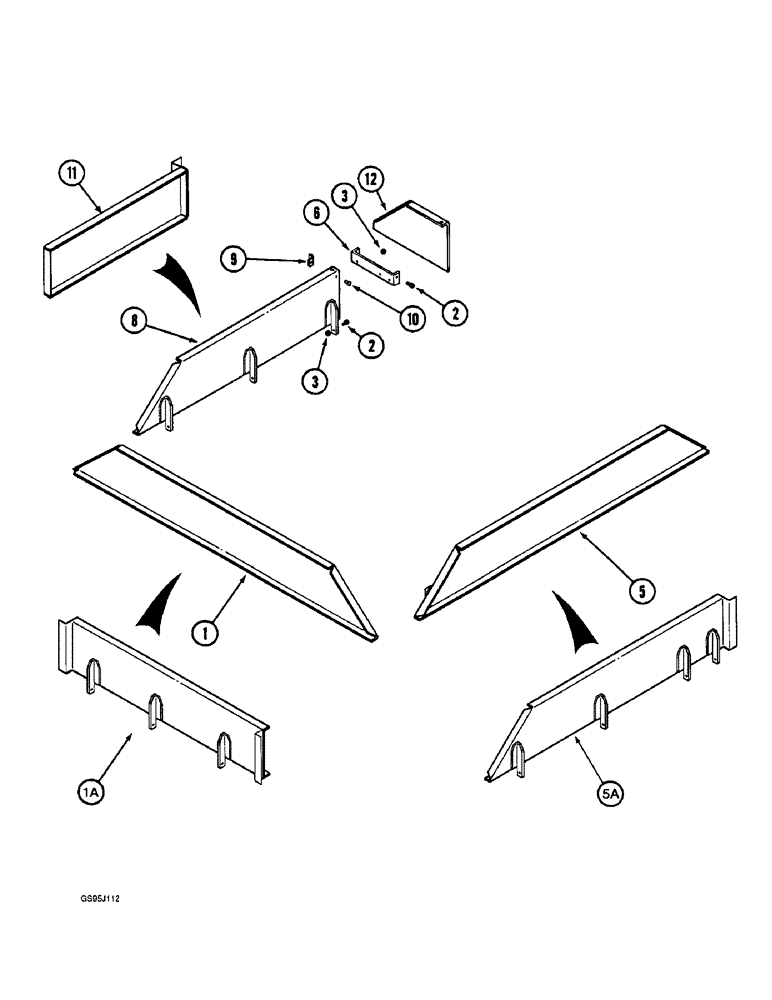

Запчасти Case IH 1682 (9-170) - FOLDING GRAIN TANK EXTENSIONS (09) - CHASSIS ATTACHMENTS

1

1321788C1

EXTENSION

- rear, flip-up, if used

1шт.

1a

1979230C3

EXTENSION

- rear, flip-up, if used

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 inch - 18 NC x 3/4 inch (Replaces bolt 180077)

1шт.

3

231-1435

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC (Replaces nut 25077R1)

1шт.

5

1321677C1

EXTENSION

- right-hand, flip-up, if used

1шт.

5a

1979256C1

EXTENSION

- right-hand, flip-up, if used

1шт.

6

1321802C1

CHANNEL

- flip-up, left-hand front

1шт.

8

1321796C1

EXTENSION

ASSEMBLY - rear, flip-up left-hand, if used, Includes: Ref. 9 & 10

1шт.

9

174549C1

CLIP

- support, extension

2шт.

10

45-36

RIVET,But Hd, 3/16" x 3/8"

- button head, 3/16 x 3/8 inch (Replaces rivet 104066)

2шт.

11

1979232C1

CABLE EXTENSION

EXTENSION - rear, flip-up, left-hand, if used

1шт.

12

1321829C1

EXTENSION

- flip-up, left-hand front

1шт.
