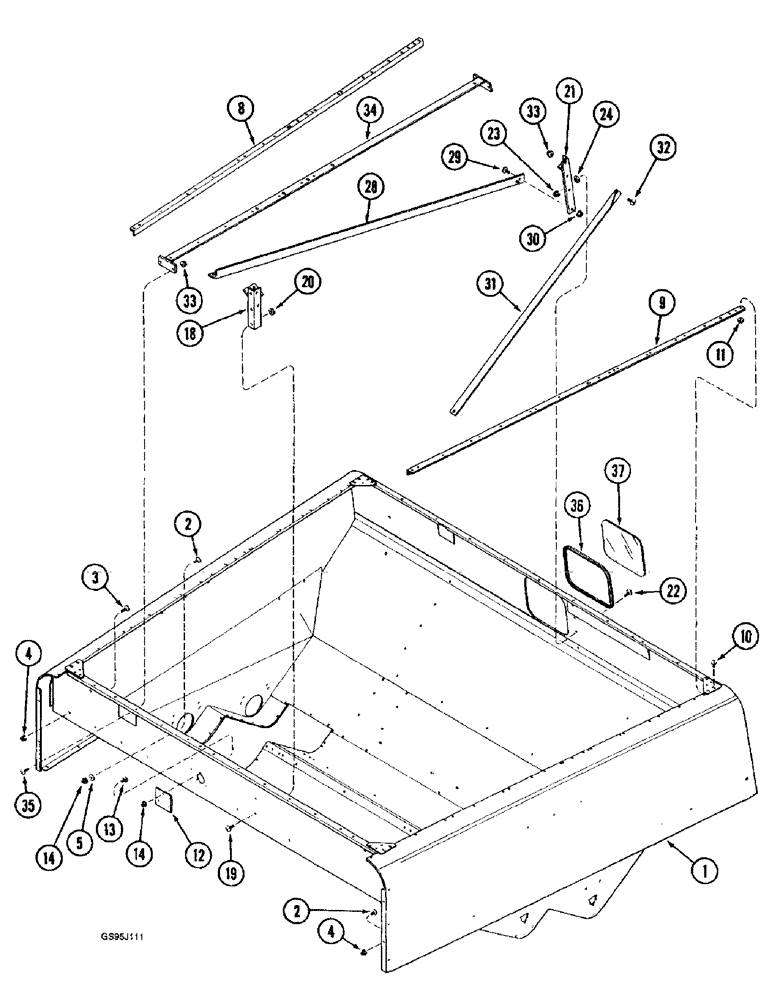

Запчасти Case IH 1682 (9-168) - GRAIN TANK (09) - CHASSIS ATTACHMENTS

1

1327949C91

TANK

- grain

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

42шт.

3

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

13шт.

4

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

55шт.

5

495-81119

WASHER,8.74mm ID x 31.75mm OD x 1.7mm Thk

- flat, 11/32 x 1-1/4 x 1/16 inch

1шт.

8

189959C1

ANGLE

- stiffener, top left-hand

1шт.

9

189960C1

ANGLE

- stiffener, top right-hand

1шт.

10

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

9шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

9шт.

12

189489C1

BAR

COVER - tank, rear

1шт.

13

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

3шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

18

1329777C1

SUPPORT

- grain tank, tie, front

1шт.

19

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

3шт.

20

231-5146

FLANGE NUT,3/8"-16

3шт.

21

187235C1

SUPPORT

- tie, front

1шт.

22

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

23

231-5146

FLANGE NUT,3/8"-16

4шт.

24

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

- flat, 13/32 x 1 x 7/64 inch (Replaces washer 21403R1)

2шт.

28

189744C3

ANGLE

ROD - tie, grain tank (Replaces rod 189744C2)

1шт.

29

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

30

231-5146

FLANGE NUT,3/8"-16

2шт.

31

1345337C1

ANGLE

BRACE - rod, tie (Replaces brace 187239C1)

1шт.

32

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

33

231-5146

FLANGE NUT,3/8"-16

2шт.

34

189363C1

SUPPORT

ANGLE - support, tank

1шт.

35

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

36

1305427C1

MOULDING - seal, cut from 198131C2 bulk seal, see below

1шт.

37

185608C1

GLASS

- grain tank window

1шт.

198131C2

SEAL, GLASS

SEAL - bulk roll, 120 inch (3048 mm) long

1шт.
