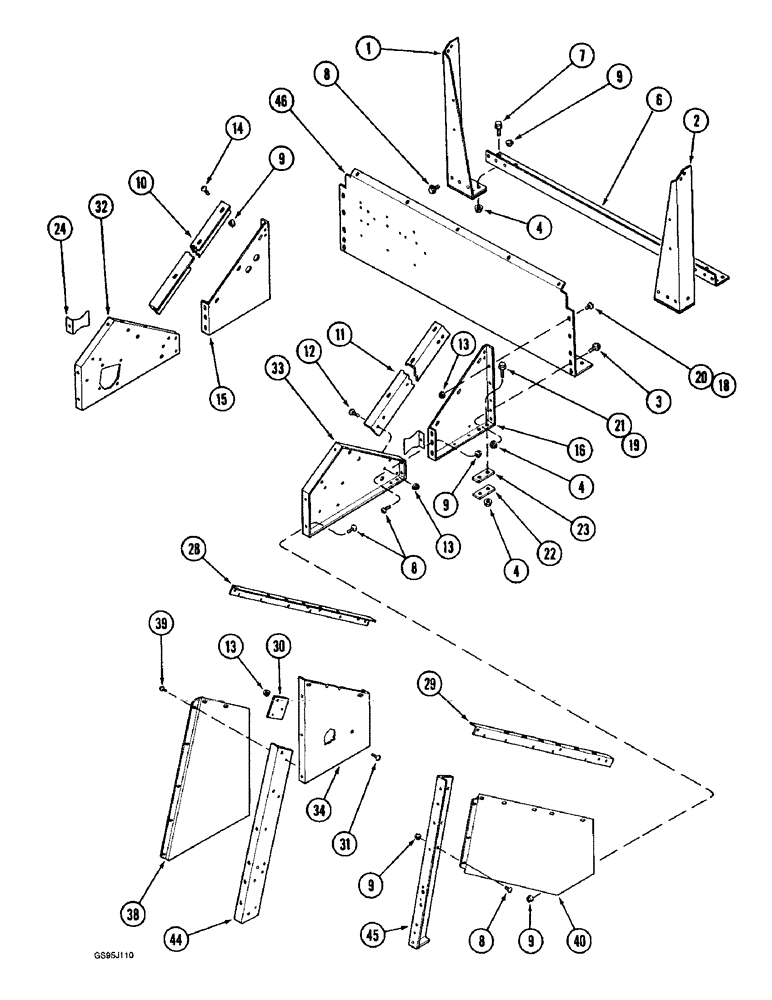

Запчасти Case IH 1682 (9-166) - GRAIN TANK SUPPORTS (09) - CHASSIS ATTACHMENTS

1

189368C1

SUPPORT

ANGLE - support, front post left-hand

1шт.

2

189369C1

SUPPORT

ANGLE - support, front post right-hand

1шт.

3

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

1шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

1шт.

6

189394C1

ANGLE

- tie, front post

1шт.

7

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

1шт.

9

231-5146

FLANGE NUT,3/8"-16

1шт.

10

189365C1

ANGLE

- diagonal, tank left-hand

1шт.

11

189366C1

ANGLE

- diagonal, tank right-hand

1шт.

12

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

1шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

1шт.

14

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

15

193429C2

SUPPORT

- grain tank, left-hand front

1шт.

16

189367C1

SUPPORT

- front, right-hand

1шт.

18

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

1шт.

19

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

1шт.

20

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

1шт.

21

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

- hex serrated flange, 1/2 NC x 1-1/2 inch

1шт.

22

1302549R1

SHIM - post, right-hand lower

4шт.

23

193428C1

BAR

- filler, front, rear mounting channel, 5/8 inch

2шт.

24

193531C1

SUPPORT

- filler

4шт.

28

193469C1

SUPPORT

ANGLE - grain tank, rear bottom left-hand

1шт.

29

193470C1

SUPPORT

ANGLE - grain tank, rear bottom right-hand

1шт.

30

189489C1

BAR

COVER - rear

2шт.

31

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

1шт.

32

192771C2

SUPPORT

- grain tank, center left-hand

1шт.

33

192772C2

SUPPORT

- grain tank, center right-hand

1шт.

34

193471C1

SUPPORT

- grain tank, rear, fixed left-hand

1шт.

38

185570C1

COVER

- rear, left-hand

1шт.

39

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW, SELF TAP, Hex Wash Hd, 5/16"-18 x 13/16"

20шт.

40

193465C1

SUPPORT

- grain tank, right-hand

1шт.

44

193462C2

SUPPORT

- grain tank, rear vertical left-hand

1шт.

45

181394C1

SUPPORT

- grain tank, rear vertical right-hand

1шт.

46

1330257C2

FILLER

SUPPORT - front tank (Replaces support 1330257C1)

1шт.
