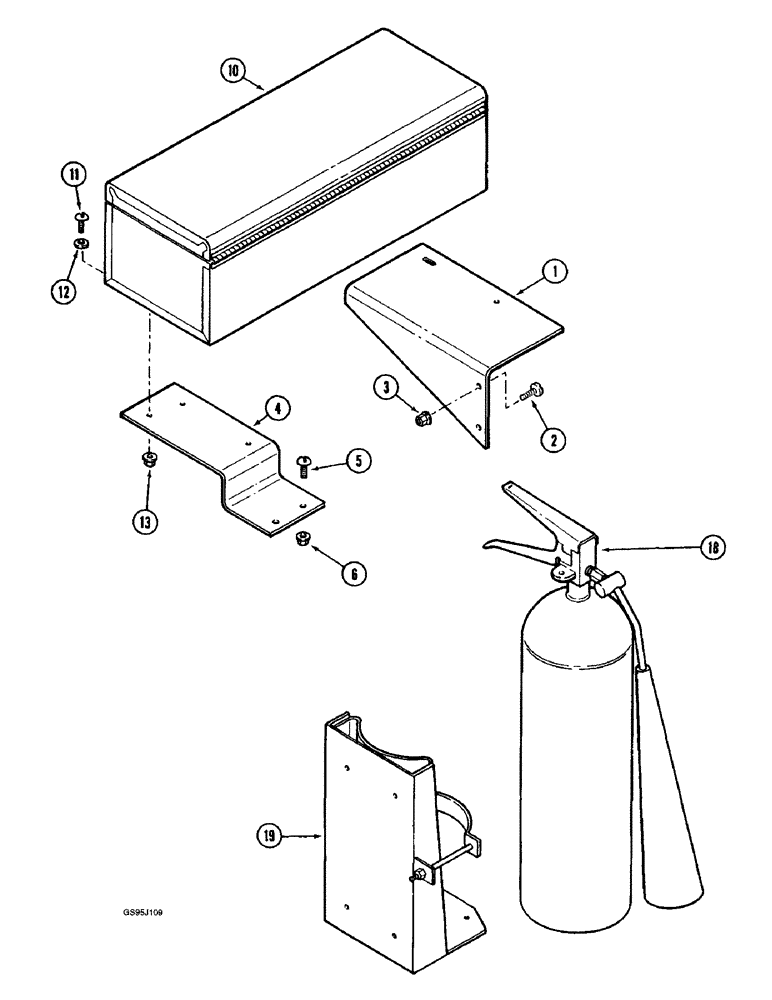

Запчасти Case IH 1682 (9-164) - TOOL BOX, FIRE EXTINGUISHER (09) - CHASSIS ATTACHMENTS

1

185713C2

SUPPORT

ANGLE - support, front

1шт.

2

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

185714C2

SUPPORT

- rear

1шт.

5

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

2шт.

6

231-5146

FLANGE NUT,3/8"-16

2шт.

10

400455R1

BOX, TOOL

BOX - tool

1шт.

11

161945C1

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1"

- slotted truss head, 5/16 NC x 1 inch

4шт.

12

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 27309R1)

4шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

4шт.

18

549975C91

FIRE EXTINGUISHER

EXTINGUISHER - fire, ABC dry chemical, 10 pound

1шт.

19

549978C91

BRACKET

- mounting, extinguisher, fire

1шт.
