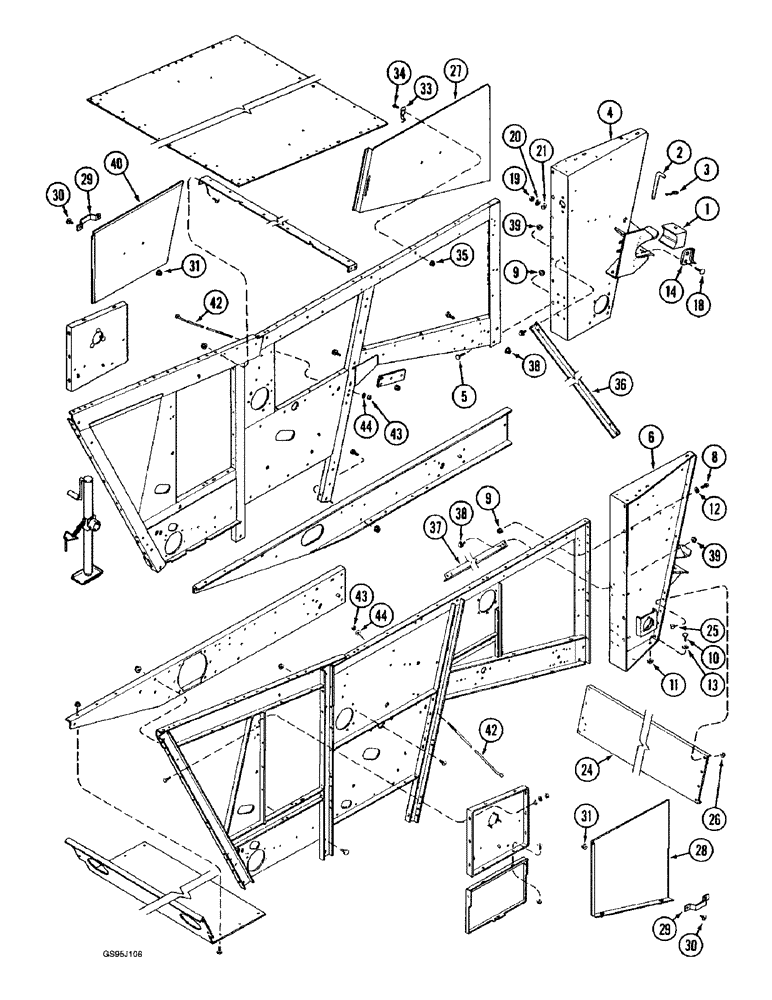

Запчасти Case IH 1682 (9-158) - SEPARATOR SIDES AND SUPPORTS (09) - CHASSIS ATTACHMENTS

1

1989327C1

RETAINER

BLOCK - pivot (Replaces block 193834C1)

1шт.

2

192533C2

ROD

- pivot block

1шт.

3

1970957C1

SPRING

PIN - cotter, 3/16 inch diameter (Replaces pin 520175R1)

1шт.

4

1313960C3

POST

- side, separator left-hand front (Replaces post 1313960C2)

1шт.

5

426-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 8

- hex, 1/2 NC x 1-3/4 inch, grade 8 (Replaces bolt 20534R1)

2шт.

6

1330233C2

POST

- side, separator right-hand front

1шт.

8

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8 (Replaces bolt 454998)

1шт.

9

232-5138

FLANGE NUT,Flg, USR, 1/2"-13, G8

1шт.

10

426-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 8

- hex, 5/8 NC x 1-1/4 inch (Replaces bolt 20739R1)

1шт.

11

232-51310

FLANGE NUT,Flg, USR, 5/8"-12

- hex serrated flange, 5/8 inch NC, grade 8

1шт.

12

169256C2

WASHER,16.28mm ID x 31.8mm OD x 3.05mm Thk

- flat, special, 41/64 x 1-1/4 x 1/8 inch

1шт.

13

396-41066

WASHER,16.66mm ID x 38.1mm OD x 5.05mm Thk

- flat, 21/32 x 1-1/2 x 3/16 inch, hardened (Replaces washer 25556R1)

1шт.

14

1307797C1

WEDGE

- pivot, feeder

1шт.

18

111-703

BOLT

- carriage, 3/4 NC x 2 inch

2шт.

19

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

20

492-11075

LOCK WASHER,3/4"

3/4"

2шт.

21

495-11081

WASHER,3/4", SAE

(Replaces washer 131017) 3/4", SAE

2шт.

24

187337C2

CHANNEL

- cross, front

1шт.

25

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, special, 3/8 NC x 1 inch

8шт.

26

231-5146

FLANGE NUT,3/8"-16

8шт.

182524C91

DOOR

ASSEMBLY - separator, front left-hand, with decal, Includes: Ref. 27

1шт.

27

NSS

NOT SOLD SEPARAT

DOOR - separator

1шт.

179749C2

PRODUCT GRAPHIC

DECAL - Danger, do not open until engine and all mechanisms have stopped, not shown, See Figure 9-185, item 4

1шт.

182526C91

DOOR

ASSEMBLY - separator, front right-hand, with decal, Includes: Ref. 28

1шт.

28

NSS

NOT SOLD SEPARAT

DOOR - separator

1шт.

DECAL - Danger, do not open until engine and all mechanisms have stopped, not shown, See Figure 9-185, item 4

1шт.

29

160638C1

HANDLE

- door

3шт.

30

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

6шт.

31

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

33

167800C1

CLIP

- door retaining clip, latch

14шт.

34

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 x 1/2 inch (Replaces screw 159920)

14шт.

35

231-51409

SERRATED NUT,Flg, USR, #10-24

14шт.

36

187334C1

ANGLE

BRACE - angle, left-hand front

1шт.

37

187335C1

ANGLE

BRACE - angle, right-hand front

1шт.

38

409-7816

BOLT,Hex Flg, 1/2" - 13 x 1", Spcl

- hex serrated flange, 1/2 NC x 1 inch

8шт.

39

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

8шт.

40

183020C91

DOOR

- separator, left-hand

1шт.

42

187345C1

ROD

- tie, auger bed

2шт.

43

231-4118

LOCK NUT,1/2"-13, GB

NUT - hex, self-locking, 1/2 inch NC

2шт.

44

496-21053

WASHER,17/32" x 1 1/16" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.
