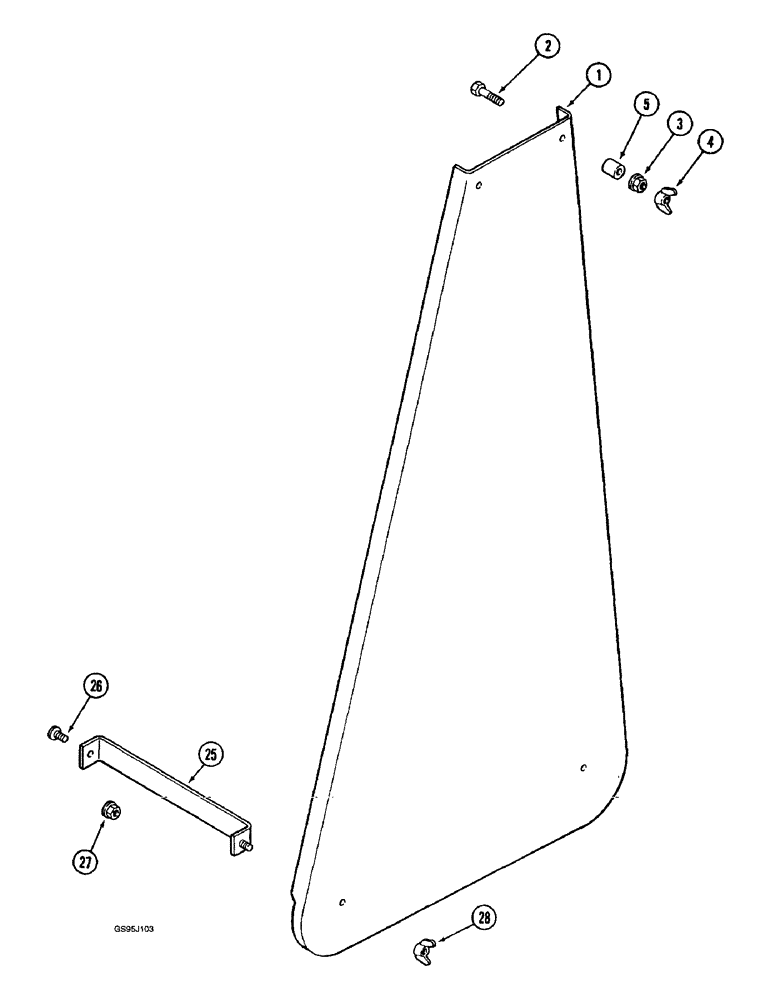

Запчасти Case IH 1682 (9-152) - FAN DRIVE SHIELD AND SUPPORT (09) - CHASSIS ATTACHMENTS

1

181842C1

SHIELD

- drive, fan

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

2шт.

3

231-5146

FLANGE NUT,3/8"-16

2шт.

4

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

2шт.

5

1305404C1

SPACER

- shield

2шт.

25

181840C1

SUPPORT

- shield, drive

2шт.

26

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

2шт.

27

231-5146

FLANGE NUT,3/8"-16

2шт.

28

126032

WING NUT,3/8"-16

NUT - wing, 3/8 inch NC

2шт.
