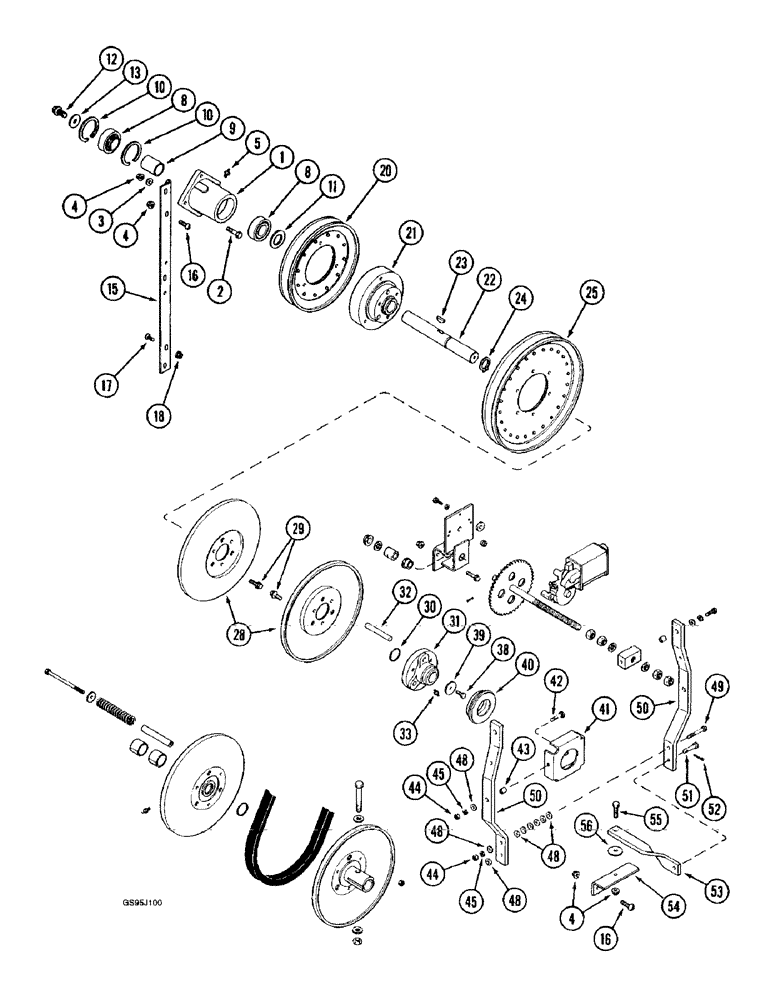

Запчасти Case IH 1682 (9-146) - CLEANING FAN DRIVE (09) - CHASSIS ATTACHMENTS

1

192418C1

HUB

- drive, elevator and fan

1шт.

2

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Replaces bolt 180126) Hex, 3/8"-16 x 1 1/2", G5

4шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

4

231-5146

FLANGE NUT,3/8"-16

9шт.

5

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

8

1302725C91

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - self-aligning adapter, drive

2шт.

9

152926C1

SPACER

- shaft, drive, 1-15/16 x 1-5/8 x 1-7/8 inch

1шт.

10

360936R1

RING

- snap, bearing

2шт.

11

183274C2

WASHER,32.51mm ID x 47.75mm OD x 4.57mm Thk

WASHER - special, retainer, bearing, 1-9/32 x 1-7/8 x 3/16 inch

1шт.

12

1302143C1

FLANGE BOLT,Lock, Hex, 1/2" - 13 x 1"

- hex flange, special, 1/2 NC x 1 inch

1шт.

13

185129C1

WASHER,13.46mm ID x 38.1mm OD x 4.57mm Thk

WASHER - flat, special, 17/32 x 1-1/2 x 3/16 inch

1шт.

15

188178C2

BRACKET

ANGLE - hub, fan

2шт.

16

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

4шт.

17

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

3шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

20

193948C1

PULLEY,39.61mm W x 254mm OD

- drive, jackshaft, 9-3/4 inch OD

1шт.

21

183333C1

HUB

- fixed pulley, pulley, fixed drive

1шт.

22

194853C3

SHAFT

- elevator and fan drive

1шт.

23

126-125

WOODRUFF KEY,#B, 5/16" x 1", HT

1шт.

24

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

25

183325C1

PULLEY

- driven, 13 inch, cleaning fan

1шт.

28

183288C1

PULLEY

- driven, 11-1/4 inch, cleaning fan

2шт.

29

409-7612

BOLT,3/8"-16 x 1.09" OAL

- hex serrated flange, 3/8 NC x 3/4 inch

6шт.

30

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Pulley, adjusting -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

31

185286C91

HUB

ASSEMBLY - pulley, fan driver and adjusting, Includes: Ref. 32

1шт.

32

37-1856

DOWEL,1/2" x 3 1/2"

Hardened 1/2" x 3 1/2"

3шт.

33

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap

1шт.

38

413-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

- hex, 5/16 NC x 1/2 inch

1шт.

39

495-81122

WASHER,.344" x 1 1/2" x .120"

- flat, 11/32 x 1-1/2 x 7/64 inch (Replaces washer 668569R1)

1шт.

40

168215C92

BALL BEARING,50.8mm ID x 92.84mm OD x 20.5mm W

BEARING - fan jackshaft (Replaces bearing 168215C91)

1шт.

41

194852C2

SUPPORT

- fan driver

1шт.

42

434-520

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT - carriage, 5/16 NC x 1-1/4 inch (Replaces bolt 598804R1)

2шт.

43

27825R1

SPACER,8.5mm ID x 12.7mm OD x 12.7mm L

Support 1/2" Tube x 1/2"

2шт.

44

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

45

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

48

28588R1

WASHER

- flat, 11/32 x 11/16 x 3/64 inch (Replaces washer 27309R1)

11шт.

49

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

50

194850C2

SUPPORT

- fan control, support

2шт.

51

439-1624

HEADED PIN,3/8" x 1 1/2"

PIN - headed, 3/8 x 1-1/2 inch (Replaces pin 21964R1)

1шт.

52

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

53

182410C1

SUPPORT

- control

1шт.

54

181904C1

ANGLE

- anchor, support

1шт.

55

326-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

(Replaces bolt 140483H) Hex, 3/8"-16 x 1 1/4", G8, Full Thd

1шт.

56

495-81142

WASHER,0.41" ID x 1.5" OD x 0.06" Thk

- flat, 13/32 x 1-1/2 x 1/16 inch (Replaces washer 21752R1)

1шт.
