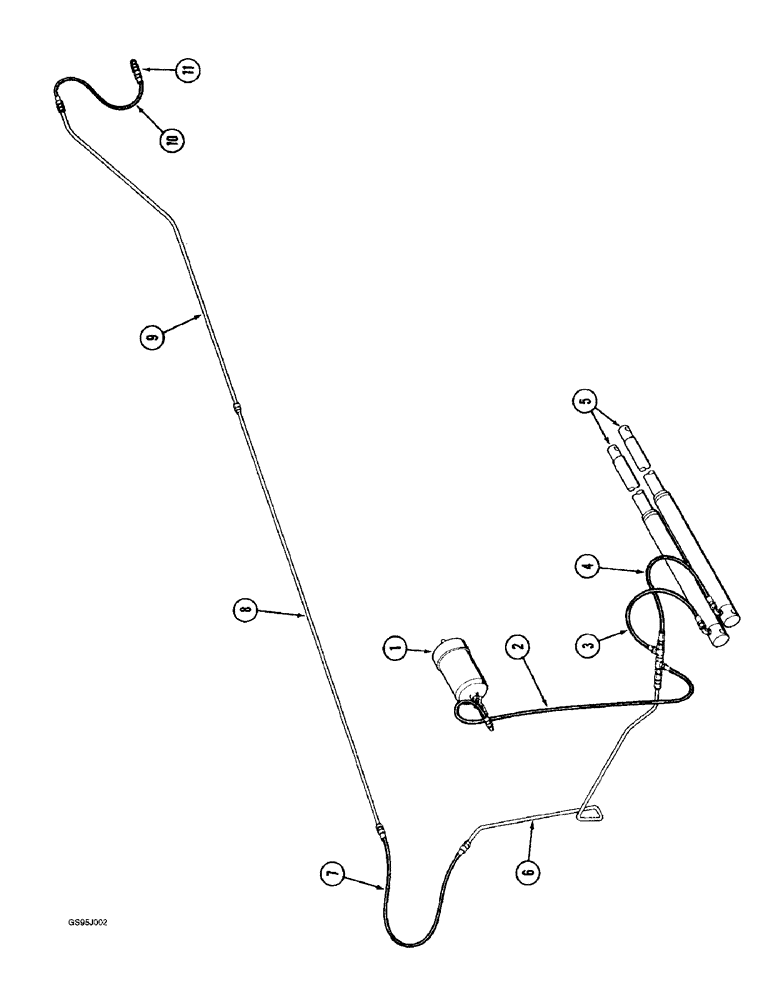

Запчасти Case IH 1682 (1-10) - PICTORIAL INDEX, HEADER LIFT HYDRAULICS (00) - PICTORIAL INDEX

1

Accumulator Tank, Pages 8-7, 8-25

1шт.

2

Accumulator Hose Assembly, Page 8-7

1шт.

3

Lift Cylinder Hose, Page 8-7

1шт.

4

Lift Cylinder Hose, Page 8-7

1шт.

5

Lift Cylinder Assembly, Page 8-7

1шт.

6

Header Tube Assembly, Page 8-9

1шт.

7

Header Hose Assembly, Page 8-7

1шт.

8

Header Rear Tube Assembly, Page 8-7

1шт.

9

Header Front Tube Assembly, Page 8-7

1шт.

10

Header Coupling Hose Assembly, Page 8-7

1шт.

11

Hydraulic Male Coupling, Page 8-7

1шт.
