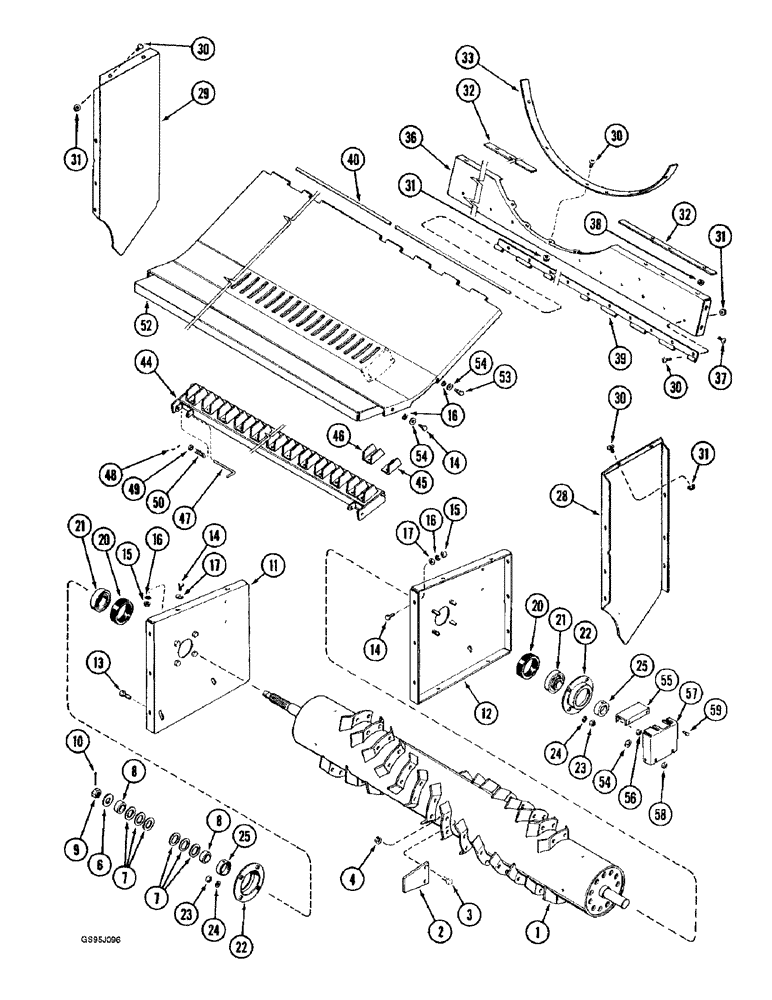

Запчасти Case IH 1682 (9-138) - STRAW CHOPPER (09) - CHASSIS ATTACHMENTS

1

185158C91

ROTOR

ASSEMBLY - straw chopper, Includes: Ref. 2 - 4

1шт.

2

197124C1

PACKAGE

BLADE - straw chopper rotor, set of 2

28шт.

3

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

56шт.

4

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

56шт.

6

495-81063

WASHER,0.91" ID x 2" OD x 0.18" Thk

- flat, 29/32 x 2 x 5/32 inch (Replaces washer 23071R1)

1шт.

7

495-81211

WASHER,34.14mm ID x 50.8mm OD x 3.4mm Thk

- flat, 1-11/32 x 2 x 7/64 inch (Replaces washer 21779R1)

6шт.

8

181156C1

SPACER

- shaft, chopper

2шт.

9

425-1314

SLOTTED NUT,7/8"-14, G5

NUT - hex slotted, 7/8 inch NF (Replaces nut 427646)

1шт.

11

181057C1

SUPPORT

- chopper, left-hand

1шт.

12

181058C1

SUPPORT

- chopper, right-hand

1шт.

13

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

15

425-106

NUT,3/8"-16, Cl 5

1шт.

16

492-11038

LOCK WASHER,3/8"

1шт.

17

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

1шт.

20

936131R1

RUBBER RING,92.46mm ID x 23.01mm OD x 23.01mm L

- bearing

2шт.

21

936133R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING - ball, rotor

2шт.

22

936130R2

FLANGE

- bearing (Replaces flange 936130R1)

2шт.

23

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

8шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

8шт.

25

455112R11

COLLAR

- locking, bearing

2шт.

28

182949C2

DEFLECTOR

- discharge, right-hand

1шт.

29

182948C2

DEFLECTOR

- discharge, left-hand

1шт.

30

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, special, 3/8 NC x 3/4 inch

1шт.

31

231-5146

FLANGE NUT,3/8"-16

1шт.

32

182895C1

FILLER

BAR - filler, bulkhead rear

2шт.

33

182950C1

SUPPORT

- cage, filler rear

1шт.

36

182931C1

SUPPORT

- rear, lower cage

1шт.

37

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

6шт.

38

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

6шт.

39

182893C1

HINGE

- concave, chopper

2шт.

40

182980C1

ROD,11.11mm OD x 1556mm L

- bottom hinge

1шт.

44

185135C91

BAR

ASSEMBLY - straw chopper concave, Includes: Ref. 45 & 46

1шт.

45

1302764C1

KNIFE

BLADE - concave, single

12шт.

46

1302763C1

KNIFE

BLADE - concave, double

1шт.

47

186736C3

ROD

- tailgate locking (Replaces rod 186736C1)

2шт.

48

432-616

COTTER PIN,3/32" x 1"

3/32" x 1"

2шт.

49

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 3/64 inch (Replaces washer 469668R1)

1шт.

50

540815R1

SPRING

- lock pin, rod

2шт.

52

181147C3

PLATE

BOTTOM - straw chopper deflector (Replaces bottom 181147C2)

1шт.

53

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

4шт.

54

25553R1

WASHER,13/32" x 1 1/8" x .134", HDN

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

4шт.

55

181209C1

SUPPORT

- sensor

1шт.

56

329-148

NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC (Replaces nut 25933R1)

2шт.

57

181208C3

SUPPORT

- shaft, chopper (Replaces support 181208C1)

1шт.

58

25933R1

JAM NUT,Jam, 1/2"-13, G8

- hex jam, 1/2 inch NC

2шт.

59

280-1478

SELF-TAP SCREW,HWH, 1/4-14 x 1/2"

SCREW - self-tapping, 1/4-14 x 1/2 inch, hex washer head (Replaces screw 23986R1)

2шт.

60

104236

RIVET,4.76mm OD x 15.88mm L

Not shown FH, 3/16" x 5/8"

2шт.

10

132-56

COTTER PIN,Ext Prong Sq Cut, 1/8" x 2"

Pin, Split (Cotter), 1/8" x 2"

1шт.
