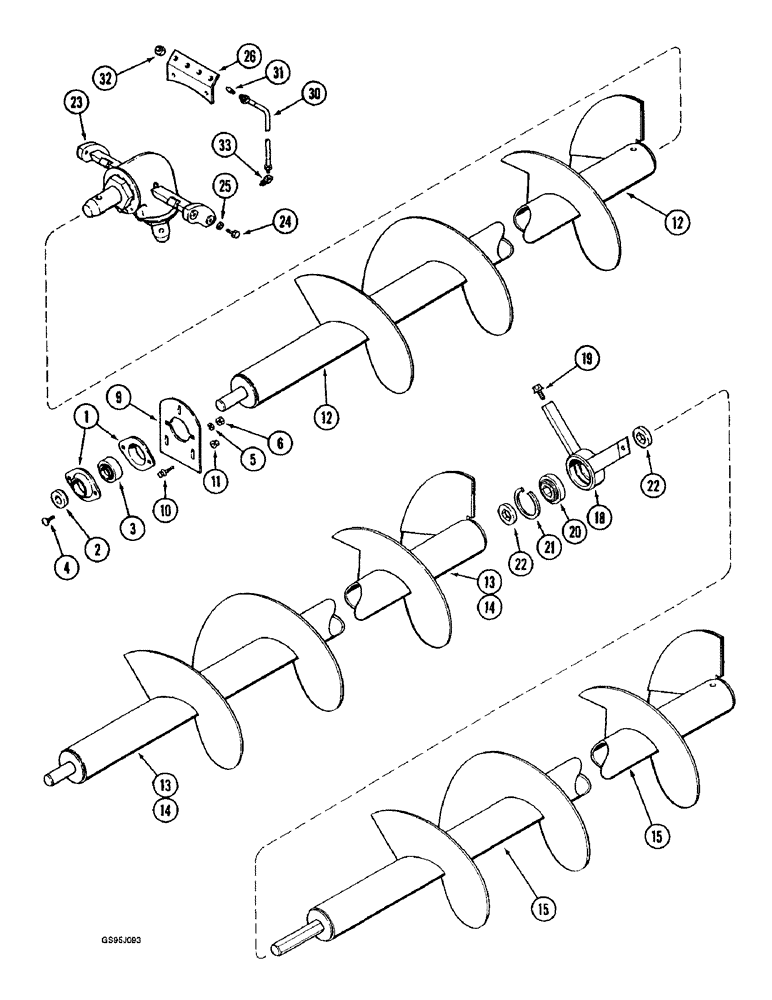

Запчасти Case IH 1682 (9-132) - GRAIN TANK UPPER UNLOADER AUGER (09) - CHASSIS ATTACHMENTS

1

50591

FLANGE,52mm

- bearing, auger (Replaces flange 612031R1)

2шт.

2

564853R11

COLLAR

- locking, bearing

1шт.

3

160796C91

BALL BEARING,25.4mm ID x 51.99mm OD x 16.56mm W

BEARING - ball, auger

1шт.

4

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

BOLT - carriage, 5/16 inch - 18 NC x 3/4 inch (Replaces bolt 598802R1)

2шт.

5

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

9

182838C1

SUPPORT

- bearing

1шт.

10

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

3шт.

11

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT - hex serrated flange, 5/16 inch NC

3шт.

12

1317935C1

AUGER

- unloader, upper single, 172 inch (4,369 mm)

1шт.

13

1317680C2

AUGER

- unloader, upper rear split, 172 inch (4,369 mm) (Replaces auger 1317680C1)

1шт.

14

1321147C2

AUGER

- unloader, upper rear split, 208 inch (Replaces auger 1321147C1)

1шт.

15

1317891C1

AUGER

- unloader, upper front split, 172 inch (4.369 mm) and 180 inch (4,572 mm)

1шт.

18

1317859C1

SUPPORT

- bearing, split auger

1шт.

19

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

- hex serrated flange, 5/16 NC x 3/4 inch

2шт.

20

203389C91

BALL BEARING,25.43mm Hex x 62mm OD x 24mm W

BEARING - ball, auger, split

1шт.

21

360936R1

RING

- snap, bearing

1шт.

22

1277949C1

SPACER

- auger, split

4шт.

23

1324931C91

HOUSING

ASSEMBLY - unloader upper gear, if used, parts list Figure 9-129

1шт.

1324931C91R

REMAN-GEARBOX

1682 GRAIN TANK UPPER UNLOADER AUGER

1шт.

1324931C91C

CORE-GEARBOX

Return Number

1шт.

23

1347351C1

HOUSING

ASSEMBLY - unloader upper gear, if used, parts list Figure 9-129B

1шт.

1347351C2R

REMAN-GEARBOX

1682, Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

24

326-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

(Replaces bolt 24839R1) Hex, 3/8"-16 x 3/4", G8, Full Thd

4шт.

25

492-11038

LOCK WASHER,3/8"

4шт.

26

185134C1

SUPPORT

- hose, fitting, lube

1шт.

30

937779R91

HOSE,1/8" ID x 22" L

FLEXIBLE HOSE, , Grease 0.14" ID x 22.00"

2шт.

30

937781R92

HOSE,3.02mm ID x 686mm L

Grease (Replaces hose 937781R91) 3.56 mm ID x 686.00 mm

1шт.

30

937782R92

HOSE,3.02mm ID x 787mm L

Grease (Replaces hose 937782R91) 3.56 mm ID x 787.00 mm

1шт.

31

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

4шт.

32

F53473

LOCK NUT,1/8-27 NPSM

- adapter, hose (Replaces nut 581873R1)

4шт.

33

219-438

ADAPTER,45 Degree, 1/4"-1/8 NPTF

FITTING - grease, 45 degree, 1/4-28 taper x 1-5/8 inch (Replaces fitting 21347R1)

4шт.
