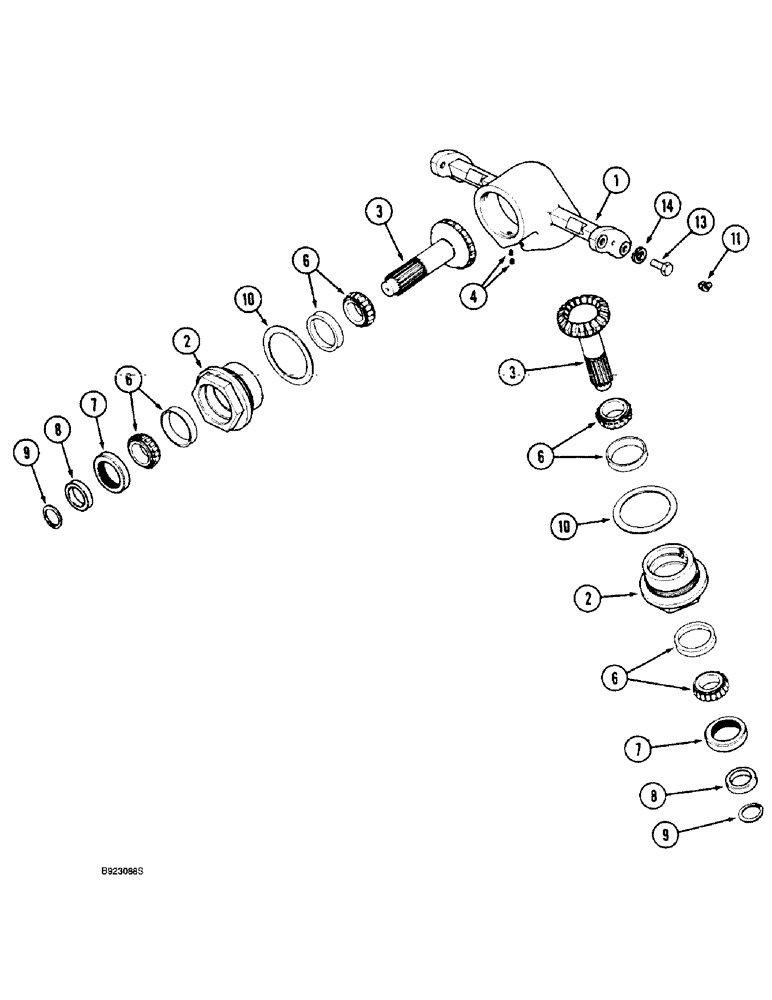

Запчасти Case IH 1682 (9-129A) - 1347351C1 UNLOADER UPPER GEAR HOUSING (09) - CHASSIS ATTACHMENTS

1347351C1

HOUSING

ASSEMBLY - upper gear, unloader (Replaces housing assembly 1324931C91), Includes: Ref. 1 - 11

1шт.

1347351C2R

REMAN-GEARBOX

1682, Reman for New PN 1347351C1

1шт.

1347351C2C

CORE-TRANSMISSION

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - upper gear

1шт.

2

NSS

NOT SOLD SEPARAT

HOUSING - gear bearing

2шт.

3

1347260C1

PINION

GEAR - 18 teeth

2шт.

4

83-1316

SET SCREW,Hex Soc, 5/16"-18 x 3/8"

SCREW - set, hex socket, 5/16 NC x 3/8 inch, cup point

4шт.

6

1347431C1

TAPERED BEARING,1.25" ID x 2.328" OD x 0.625"

BEARING - tapered roller

4шт.

7

1347339C1

SEAL,44.45mm ID x 62.1mm OD x 6.35mm Thk

- oil

2шт.

8

1347312C1

RETAINER

- gear

2шт.

9

100-16125

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

2шт.

10

1347338C1

SHIM,76.45mm ID x 96mm OD x 0.1mm Thk

- upper bearing

1шт.

11

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

13

426-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

- hex, 3/8 NC x 3/4 inch, grade 8

4шт.

14

492-11038

LOCK WASHER,3/8"

4шт.
