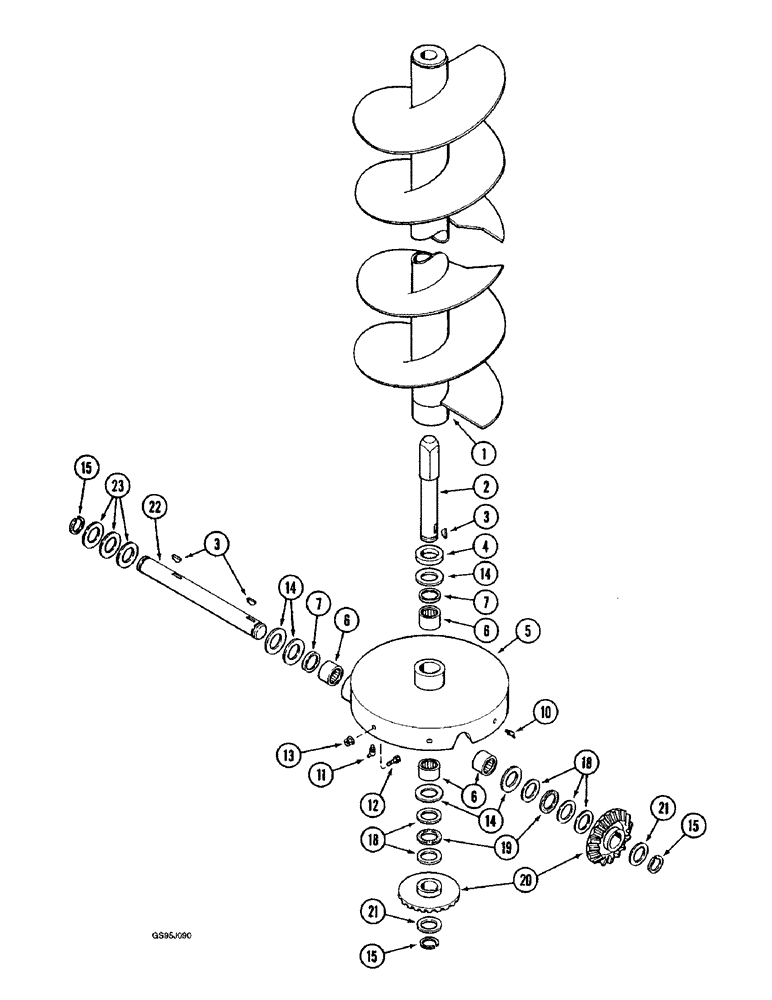

Запчасти Case IH 1682 (9-126) - GRAIN TANK LOWER UNLOADER AUGER (09) - CHASSIS ATTACHMENTS

1

192835C1

AUGER

- unloader, vertical

1шт.

2

1327739C1

SHAFT

- auger, drive, vertical

1шт.

3

126-133

WOODRUFF KEY,#D, 5/16" x 1 1/4", HT

(Replaces key 117991) #D, 5/16" x 1 1/4", HT

3шт.

4

183490C1

WASHER

WASHER - shaft, upper

1шт.

5

1327976C92

HOUSING

ASSEMBLY - drive, lower (Replaces housing assembly 1327976C91), Includes: Ref. 6 & 7

1шт.

6

188126C91

NEEDLE BEARING,Needle, 34.91mm ID x 44.46mm OD x 25.4mm W

BEARING - needle

4шт.

7

157724C91

OIL SEAL

- oil, bearing

2шт.

10

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

FITTING - grease, 45 degree, 1/4-28 special taper x 13/16 inch

1шт.

11

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

Special taper 90º, 1/4"-28 NPT x .75" lg, Drive

1шт.

12

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

- hex, self-locking, special, 3/8 NC x 1 inch

7шт.

12

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

- hex serrated flange, 3/8 NC x 1-1/4 inch

2шт.

13

231-5146

FLANGE NUT,3/8"-16

9шт.

14

188354C1

WASHER,35.71mm ID x 57.15mm OD x 3.05mm Thk

- flat, 1-13/32 x 2-1/4 x 1/8 inch

5шт.

15

A21619

CIRCLIP

RING - snap, shaft (Replaces ring 359141R1)

3шт.

18

1327732C1

THRUST WASHER,34.92mm ID x 52.37mm OD x 2.42mm Thk

- flat, 1-13/32 x 2 x 3/32 inch

5шт.

19

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

- thrust

2шт.

20

186517C1

GEAR-SET

GEAR SET - auger, set of 2

1шт.

21

188446C1

WASHER,35.71mm ID x 50.8mm OD x 0.76mm Thk

- flat, 1-13/32 x 2 x 1/32 inch

1шт.

22

1327738C2

SHAFT

- horizontal, drive

1шт.

23

162679C1

WASHER

WASHER - flat, special, 1-13/32 x 2-1/4 x 1/16 inch

3шт.
