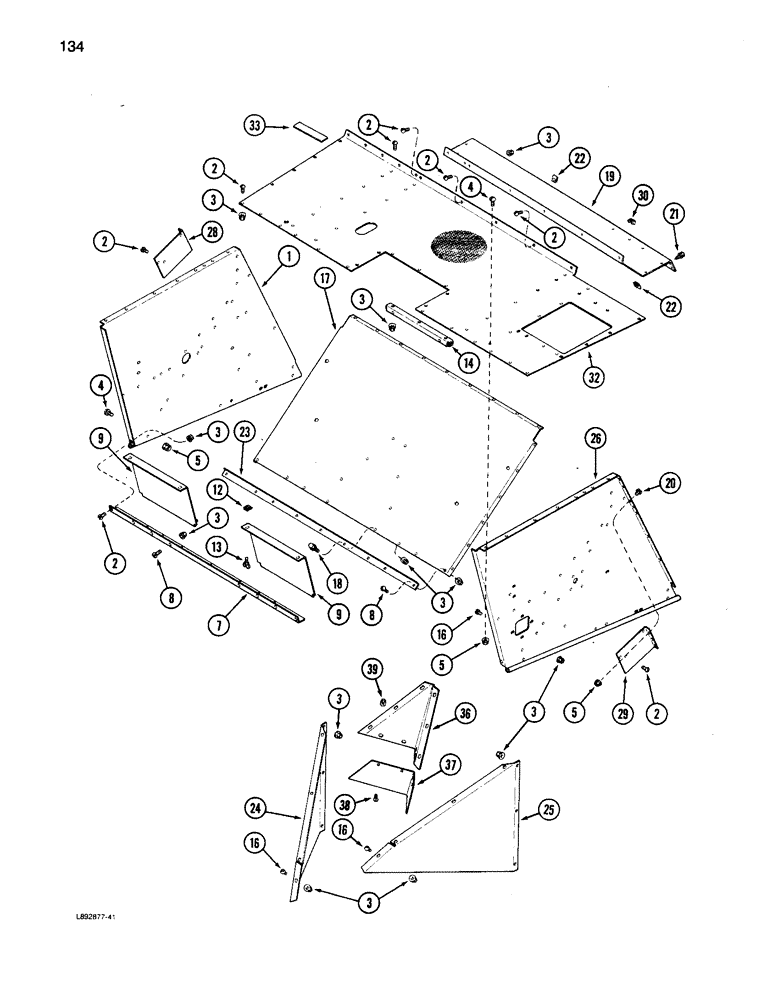

Запчасти Case IH 1680 (134) - SEPARATOR HOOD AND SIDES (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

192378C7

SUPPORT ASSY.

SIDE - separator, left

1шт.

2

135270

SERRATED SCREW,5/16" - 18 x 3/4"

- slotted truss head, 5/16 NC x 3/4 inch

56шт.

3

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

81шт.

4

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

- slotted truss head, 3/8 NC x 1 inch

6шт.

5

482256R1

BEARING LOCK NUT,Flg, USR, 3/8"-16

- hex flange lock, 3/8 inch NC

2шт.

7

192304C1

ANGLE

- rear support

1шт.

8

151446C1

SERRATED SCREW,Flg Lock, Sl Truss Hd, 5/16" - 18 x 1 1/4"

- slotted truss head, 5/16 NC x 1-1/4 inch

6шт.

9

1300295C91

PANEL

SUPPORT - hood rear access

2шт.

12

488837C1

SPRING NUT

- rear hood support

4шт.

13

176978C1

THUMB SCREW,5/16" - 18 x 0.75"

- thumb, rear hood support

4шт.

14

186971C1

ANGLE

SUPPORT - rear deck

1шт.

16

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

- slotted truss head, 5/16 NC x 1/2 inch

10шт.

17

192306C6

SHIELD

DEFLECTOR - straw discharge

1шт.

18

202107C1

BOLT,Hex Serr Flg, 5/16" - 18 x 3/4"

- hex flange lock, 5/16 NC x 3/4 inch

9шт.

19

1330090C3

SHEET

SUPPORT - engine deck

1шт.

20

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

- slotted truss head, 3/8 NC x 3/4 inch

6шт.

21

199953C1

SELF-TAP SCREW,HWH, 5/16" - 18 x 13/16"

SCREW - self tapping, 5/16 x 3/4 inch

4шт.

22

541310R1

SPRING NUT

- speed, 5/16 inch

11шт.

23

194306C1

ANGLE

- deflector stiffener

1шт.

24

1302107C1

DEFLECTOR

SUPPORT - corner, left

1шт.

25

1302108C1

DEFLECTOR

SUPPORT - corner, right

1шт.

26

1302698C92

SUPPORT

SIDE - separator, right

1шт.

28

185104C1

SUPPORT

- separator hood sheet, left

1шт.

29

185105C1

SUPPORT

- separator hood sheet, right

1шт.

30

459063R1

SPRING NUT

- grip, 5/16 inch

2шт.

32

1317744C3

HOOD

SUPPORT - rear deck (replaces 1347434C1)

1шт.

33

D55216

PAD,2" x 9"

STRIP - anti-skid

10шт.

36

1319485C1

DEFLECTOR

- rear hood (see note)

1шт.

37

1321019C1

DEFLECTOR

- guard (see note)

1шт.

38

135270

SERRATED SCREW,5/16" - 18 x 3/4"

BOLT - hex, 5/16 NC x 3/4 inch

10шт.

39

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

- hex flange lock, 5/16 inch NC

10шт.
